SAVE/RECALL
157

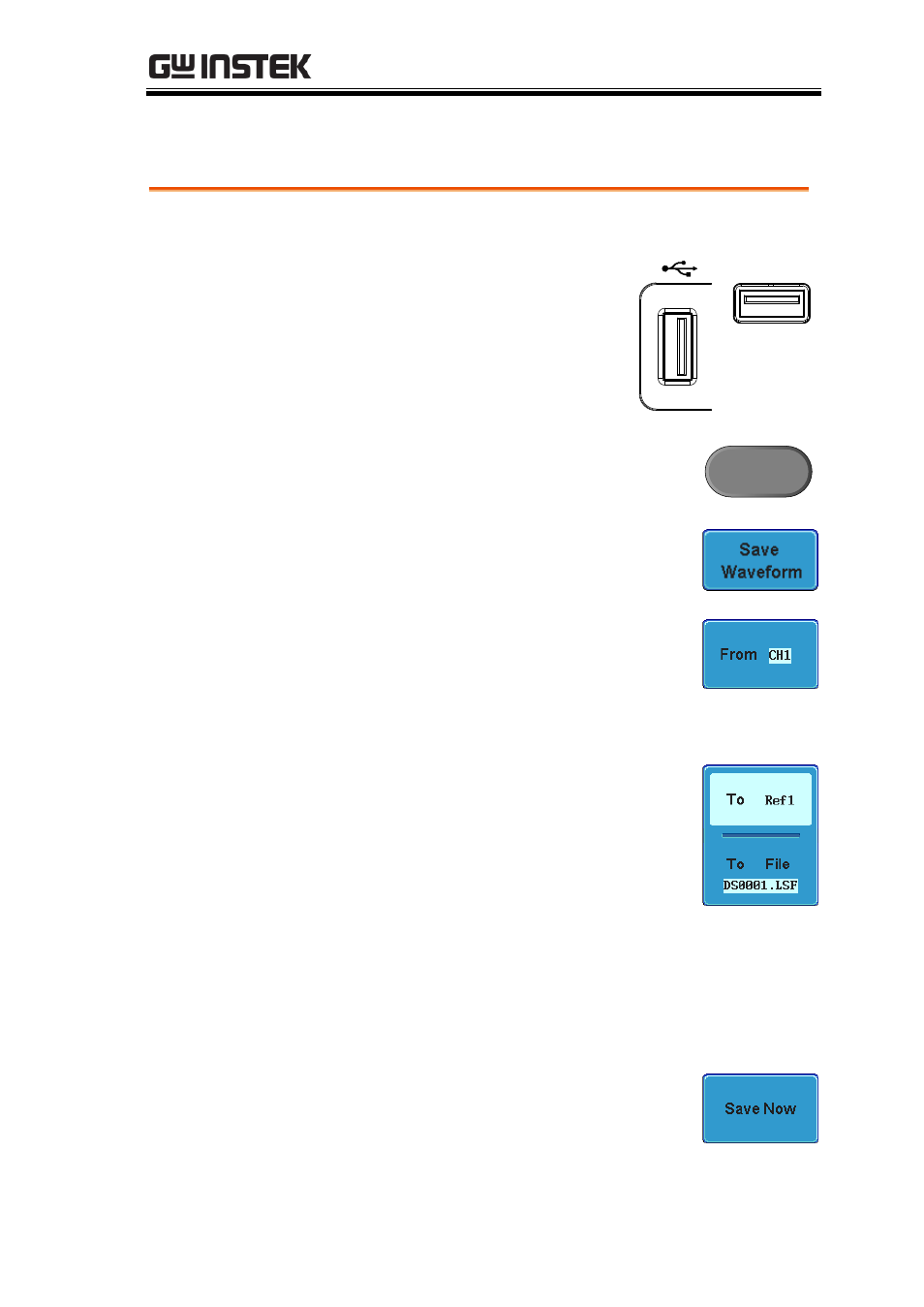

Save Waveform
Panel Operation 1. (For saving to an external
USB flash drive) Connect
the drive to the front or rear
panel USB port.
Note: Only one host
connection, front or rear, is
allowed at a time.
Front Rear
Host
2. Press the Save/Recall key from the
front panel.
Save/Recall
3. Press Save Waveform from the
bottom menu.
4. Choose the From waveform on the
side menu.
Source CH1~4, Math, Ref1~4, All
Displayed
5. Press To (internal memory) or To
File and choose a destination to
save.
To Ref1~4, Wave1~4
To File DSxxxx.csv, DSxxxx.lsf,
CH1~CH4.lsf*
*(saved to an ALLxxx directory)
6. Press Save Now to confirm saving.
When completed, a message
appears at the bottom of the
display.
