GW Instek GDS-3000 Series User Manual - Manual (Page 22)

GDS-3000 Series User Manual
22

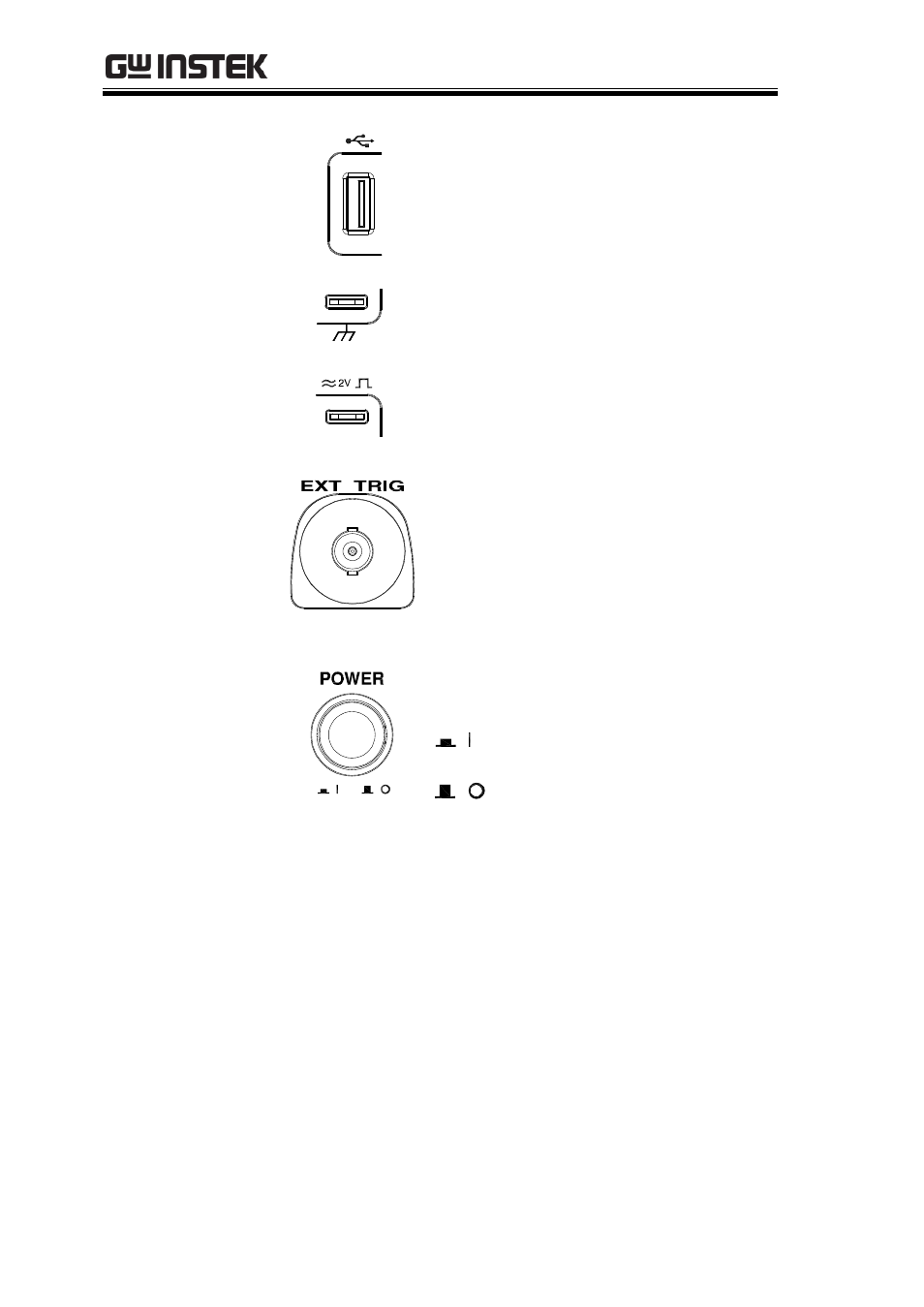

USB Host Port TypeA, 1.1/2.0 compatible. Used
for data transfer.
Ground Terminal Accepts the DUT ground lead for
common ground.
Probe
Compensation
Output Outputs 2Vp-p, square wave
signal for probe compensation
(page 191).
External Trigger
Input Accepts external trigger signals
(page 125).
Input impedance: 1MΩ±3%,
Voltage input: ±15V(peak), EXT
trigger capacitance:~16pF.
Power Switch Used to turn the power on/off.
: ON
: OFF
