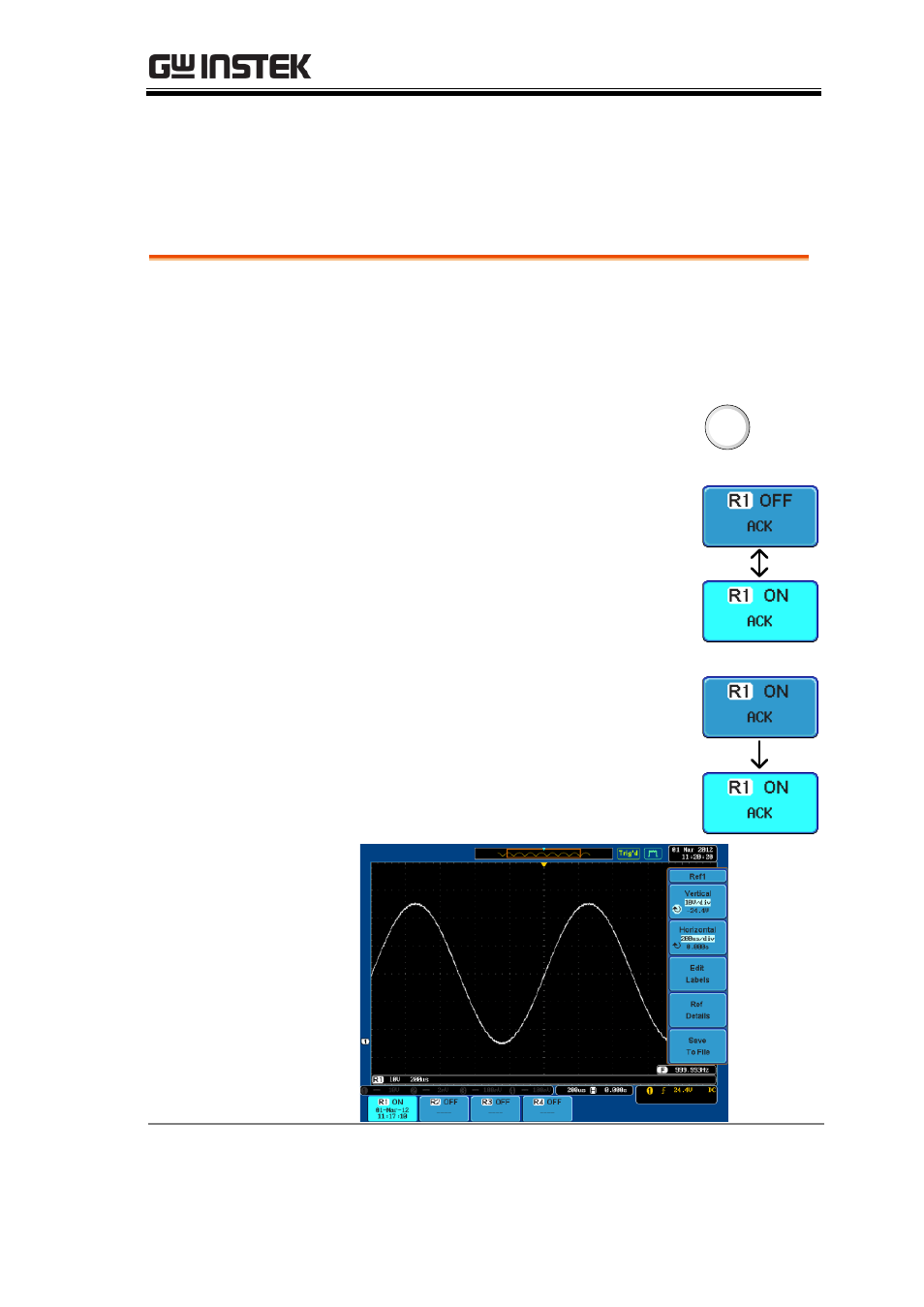

background image

SAVE/RECALL

165

Reference Waveforms

Recall and Display Reference Waveforms

Panel Operation

A reference waveform must be stored in advance.
See page 155 to store waveforms as reference
waveforms.

1. Press the REF key on the front

panel.

R

2. Pressing R1~R4 repeatedly will

toggle the corresponding reference
waveform OFF/ON.

Turning R1~R4 ON will open the
corresponding reference menu.

3. If a reference waveform is ON but

not active, its reference menu can
be opened by pressing the
corresponding R1~R4 key from the
bottom menu.
