MEASUREMENT
63

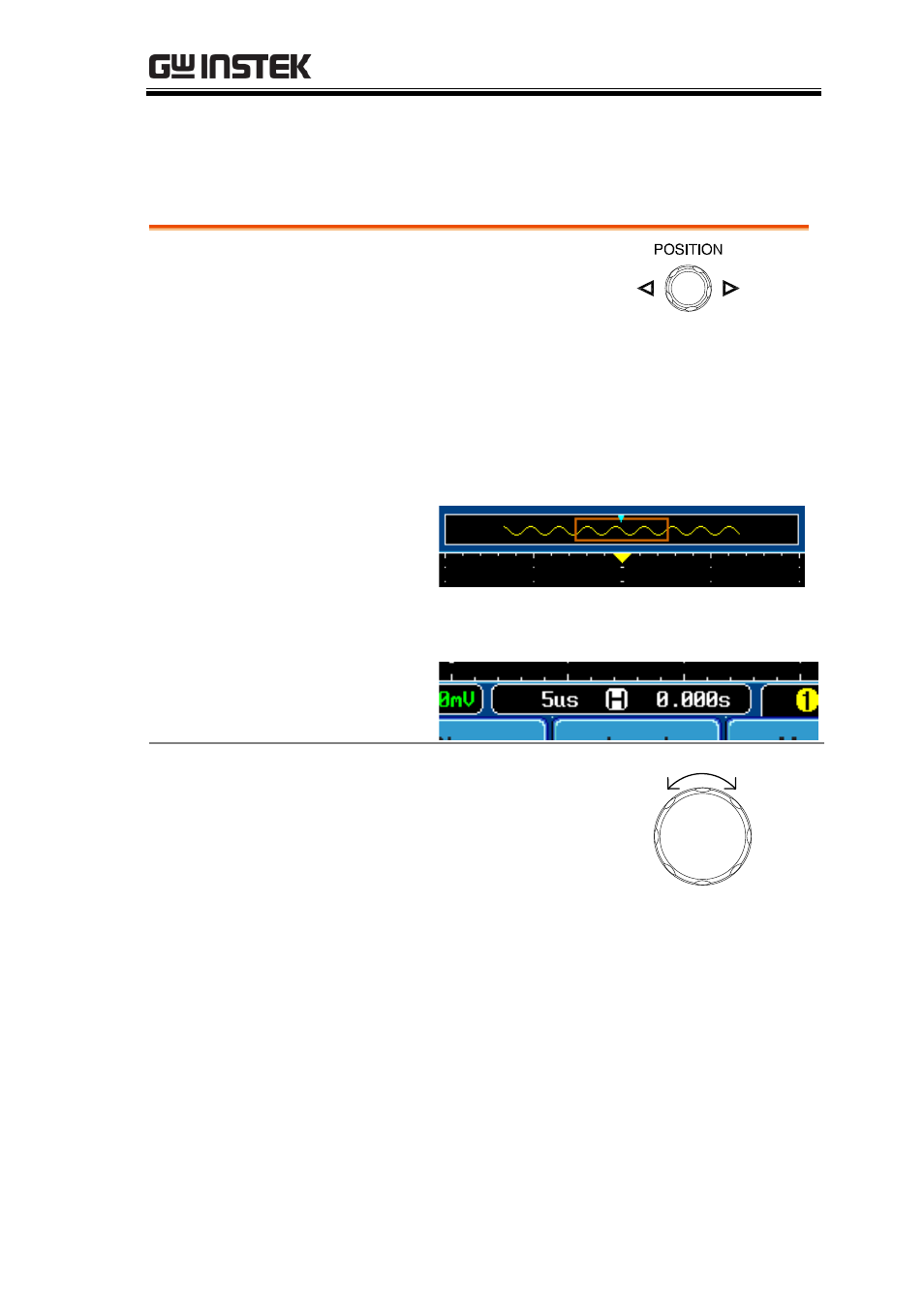

Horizontal Position/Scale
For more detailed configuration, see page 112.
Set Horizontal
Position The horizontal position knob
moves the waveform left and
right.
As the waveform moves, the memory bar on the
top of the display indicates the portion of the
waveform currently shown on the display and the
position of the horizontal marker on the
waveform.
Position Indicator The horizontal position is shown at the bottom of
the display grid to the right of H icon.
Select Horizontal
Scale To select the timebase (scale),
turn the TIME/DIV knob; left
(slow) or right (fast). TIME/DIV
Left Right
Range 1ns/div ~ 100s/div, 1-2-5 increments
(1-2.5-5 for GDS350X.
