Watlow EZ-ZONE ® PM PID Controller • 24 • Chapter 2 Install and Wire
Warning:
Óç
Use National Electric (NEC) or other
country-specific standard wiring and
safety practices when wiring and
connecting this controller to a power
source and to electrical sensors or
peripheral devices. Failure to do so
may result in damage to equipment
and property, and/or injury or loss
of life.
Note:
Maximum wire size termination and
torque rating:
• 0.0507 to 3.30 mm 2 (30 to 12
AWG) single-wire termination or
two 1.31 mm 2 (16 AWG)
• 0.8 Nm (7.0 lb.-in.) torque
Note:
Adjacent terminals may be labeled
differently, depending on the model
number.
Note:
To prevent damage to the control-
ler, do not connect wires to unused
terminals.
Note:
Maintain electrical isolation between
analog input 1, digital input-outputs,
switched dc/open collector outputs
and process outputs to prevent
ground loops.
Note:
The control output common termi-
nal and the digital common terminal
are referenced to different voltages
and must remain isolated.
Note:
This Equipment is suitable for use in
CLASS I, DIVISION 2, Groups A, B,
C and D or Non-Hazardous locations
only. Temperature Code T4A
Warning:
ç
Explosion Hazard - Dry contact clo-
sure Digital Inputs shall not be used
in Class I Division 2 Hazardous Loca-
tions unless switch used is approved
for this application.
Warning:
ç
Explosion Hazard – Substitution of
component may impair suitability
for CLASS I, DIVISION 2.
Warning:
ç
Explosion Hazard - Do not discon-
nect while the circuit is live or
unless the area is known to be free
of ignitable concentrations of flam-
mable substances.

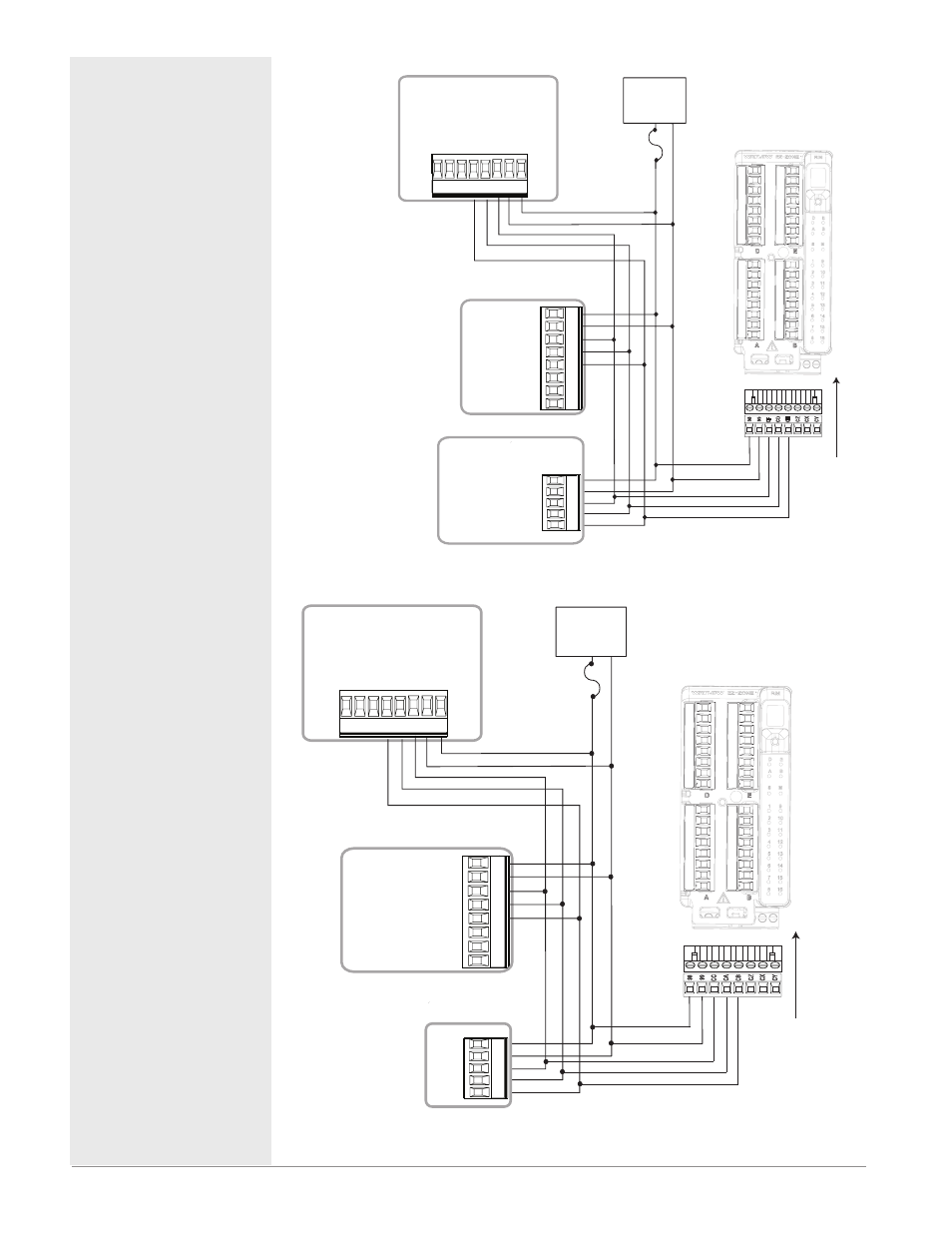

A Network Using Watlow's Standard Bus and an RUI/Gateway
A Network Using Modbus RTU .
- A
+ B
com
98
99
CC
CA
CB
B5
D6
D5
power
- A
+ B
common
power
-
A
+
B
common
power
power
power
power
EZ-ZONE ST
ST_ _ - (B or F) _ M _ -_ _ _ _
PLC
98 99 CC CA CB B5 D6 D5
Power
Supply
fuse
EZ-ZONE RM
98 99
Slot C
power
CZ CB CX CY CA CC
- A
+ B
common
EZ-ZONE PM
PM _ _ _ _ _-1AAAAXX
- A
+ B
com
- A
+ B
common
power
-
A
+
B
common
power
power
power
EZ-ZONE PM
EZ-ZONE ST
ST_ _ - (B or F) _ M _ -_ _ _ _
98 99 CF CD CE B5 D6 D5
Power
Supply
fuse
EZ-ZONE RM
98 99
Slot C
power
CZ CE CX CY CD CF
- A
+ B
common
98
99
CF
CD
CE
B5
D6
D5
98
99
CF
CD
CE
RUI/Gateway
EZKB-_ A _ _- _ _ _ _
