1/16 din, Watlow ez-zone, Pm pid controller – Watlow EZ-ZONE PM PID User Manual
Page 11: Chapter 2 install and wire
Watlow EZ-ZONE
®
PM PID Controller
•
8
•
Chapter 2 Install and Wire
L1
K1
J1
L2
K2
T1
S1
R1
L3
K3
J3
L4
K4
T2
S2
R2
98
99
CF
CD
CE
B5
D6
D5

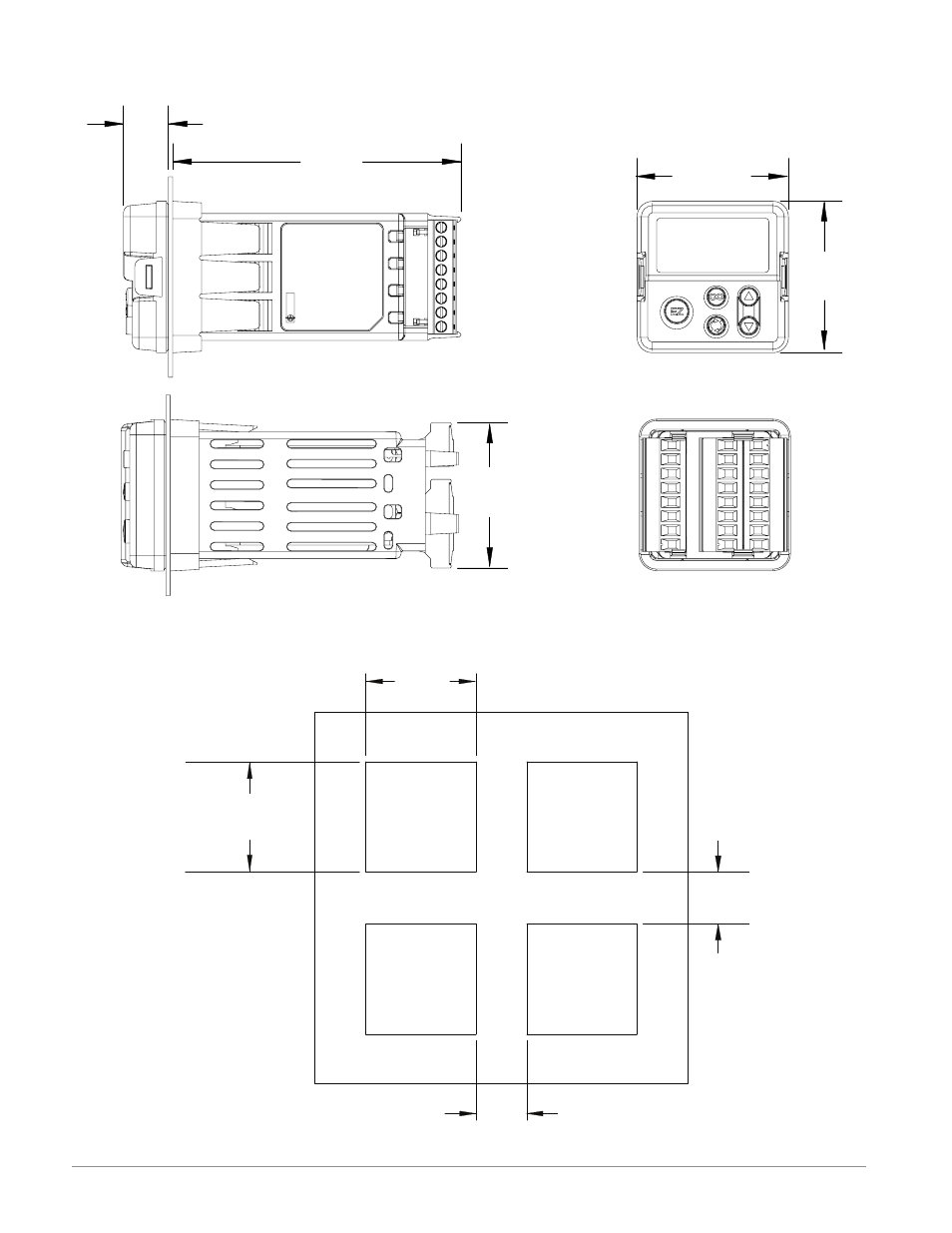

15.8 mm
(0.62 in)
101.6 mm
(4.00 in)
53.3 mm
(2.10 in)
53.3 mm
(2.10 in)
51.2 mm
(2.02 in)
Side
Front
Top
Back
21.6 mm
(0.85 in)
Minimum
44.96 to 45.47 mm
(1.77 to 1.79 inches)
44.96 to 45.47 mm
(1.77 to 1.79 inches)
21.6 mm
(0.85 in)
Minimum
panel thickness 1.53 to 9.52 mm
(0.060 to 0.375)
1/16 DIN
