Watlow EZ-ZONE ® PM PID Controller • 7 • Chapter 2 Install and Wire
2

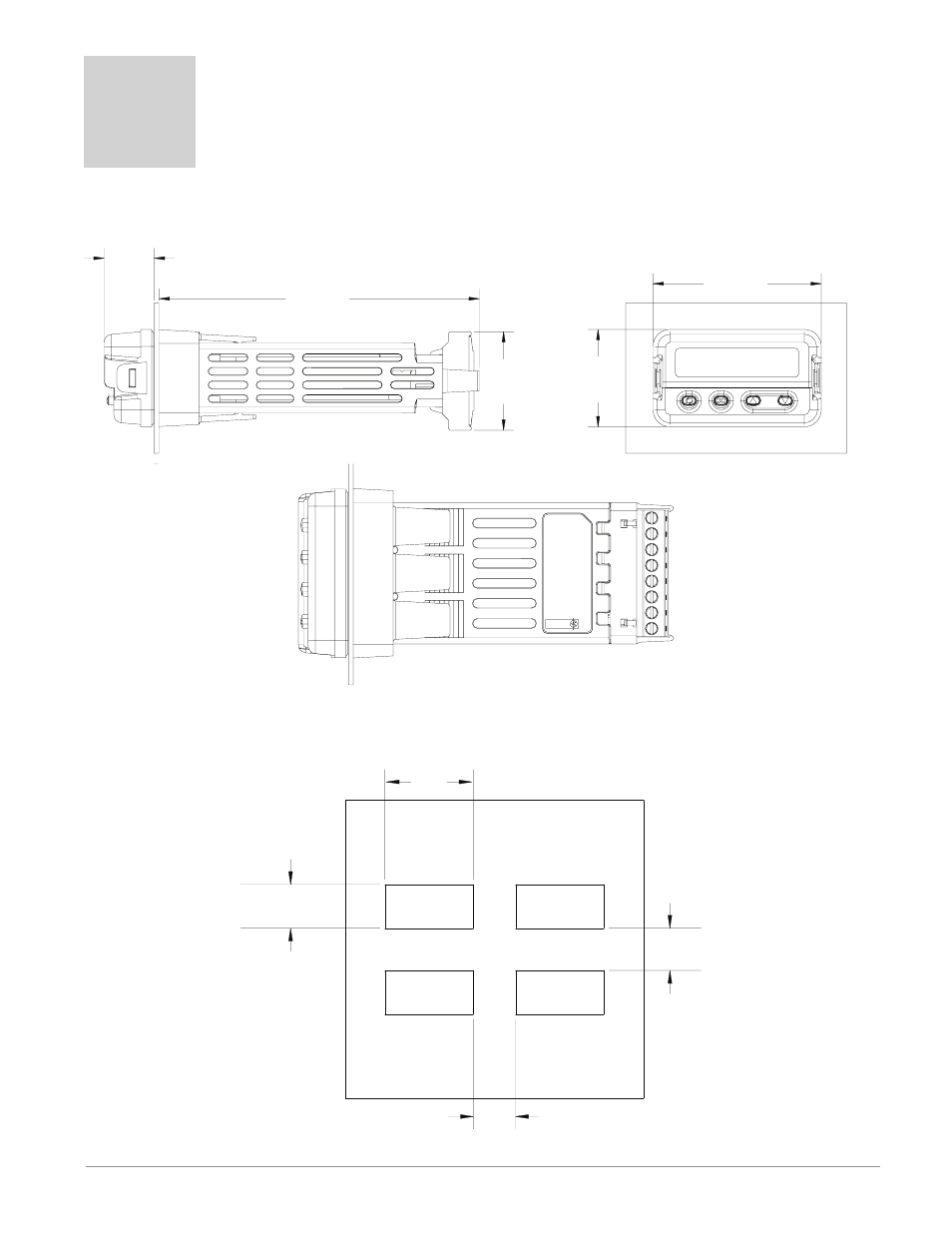

1/32 DIN
101.6 mm
4.00 in
15.9 mm
0.63 in
53.3 mm
2.10 in
31.2 mm
1.23 in
30.9 mm
1.22 in
Side Front
Top
21.6 mm
(0.85 in)
Minimum
44.96 to 45.47 mm
(1.77 to 1.79 inches)
Recommended panel spacing
panel thickness 1.53 to 9.52 mm
(0.060 to 0.375)
21.6 mm
(0.85 in)
Minimum
22.2 to 22.5 mm
(0.87 to0.89 inches)
Chapter 2: Install and Wire
Dimensions
