Quencharc wiring example, Standard bus eia-485 communications, Modbus rtu or standard bus eia-485 communications – Watlow EZ-ZONE PM PID User Manual

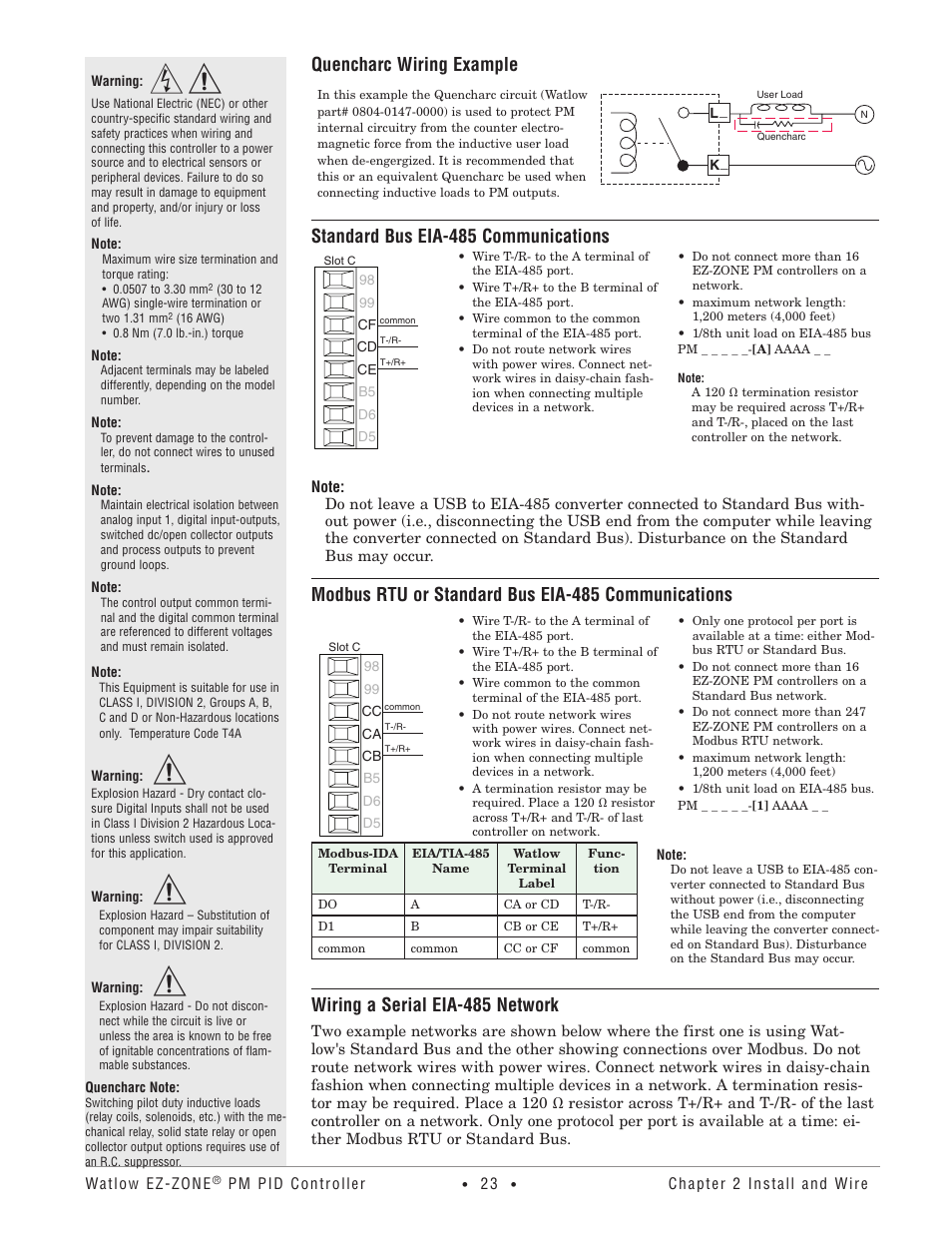

Page 26: Wiring a serial eia-485 network
