Watlow ez-zone, Pm pid controller, Chapter 2 install and wire – Watlow EZ-ZONE PM PID User Manual

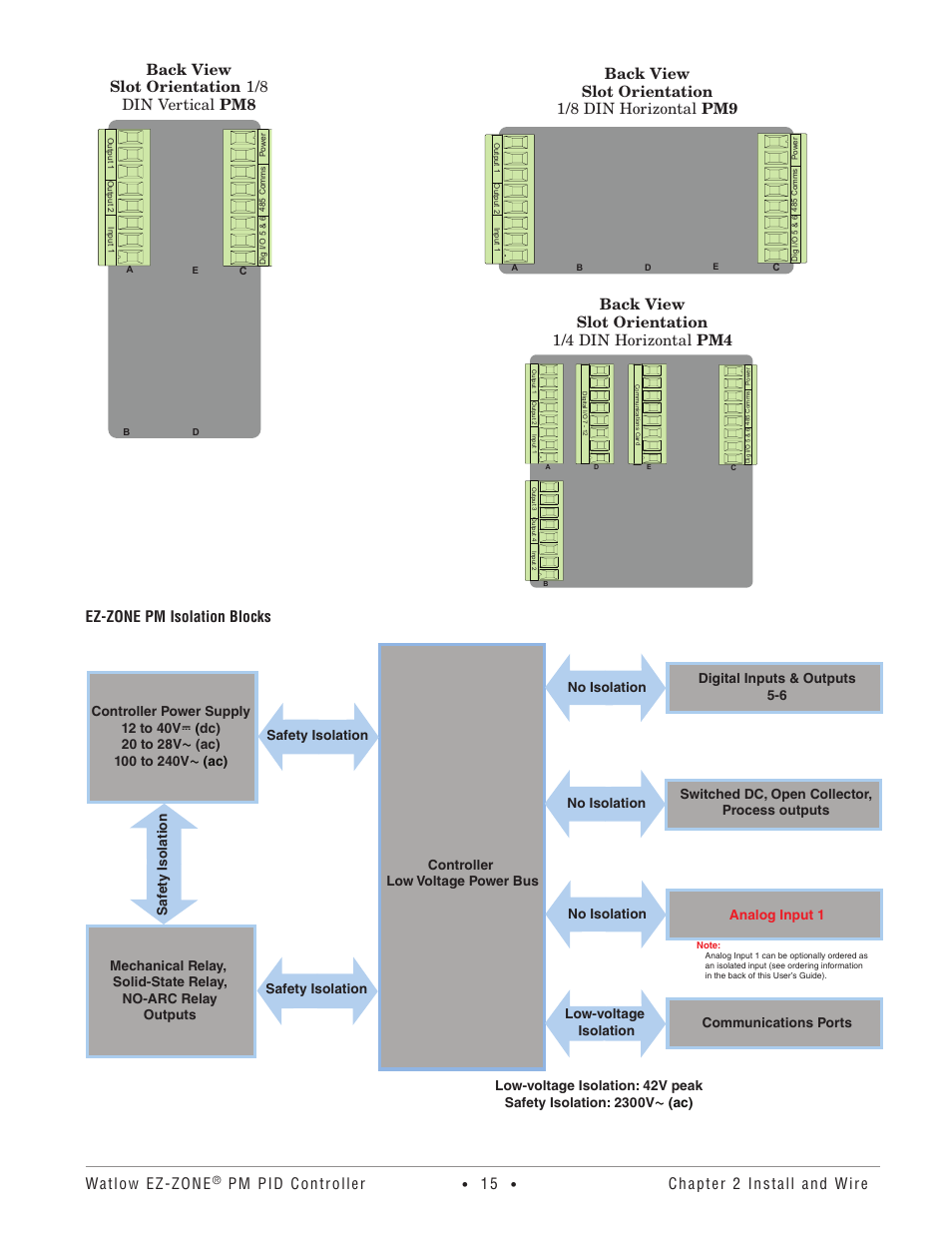

Page 18: Ez-zone pm isolation blocks, Back view slot orientation 1/8 din vertical pm8, Back view slot orientation 1/8 din horizontal pm9, Back view slot orientation 1/4 din horizontal pm4
