GP4000 Series Hardware Manual
233
Removal procedure
NOTICE
BROKEN ENCLOSURE
z Attach correctly without a crevice between gaskets and between gasket and the
panel.
z Do not attach installation fastener in a different position from mounting
instruction.
z Do not exert more than 0.8 N•m (7.1 lb-in) of torque when tightening the
installation screws.
z For use on a flat surface of a Type 1 Enclosure
z Attach the
Overlay correctly with the installation.
z Do not reuse the
Overlay removed once.
Failure to follow these instructions can result in equipment damage.
NOTICE
GASKET AGING
z Inspect the installation gasket periodically as required by your operating
environment to keep the initial IP level.
z Change the installation gasket at least once a year, or as soon as scratches or
dirt become visible.
Failure to follow these instructions can result in equipment damage.
Step Procedure Details
1 Remove the nuts from the four stud bolts fixed in place on the rear surface of
the panel, and then slowly remove the GP unit from the panel.
CAUTION
RISK OF INJURY
Be careful of the glass of the front of the GP unit.
z Wear gloves when you are installing the GP unit.
z Do not push the LCD panel strongly.
When installing the GP unit with the flat mount orientation, affix the Overlay to the front of
the GP unit.
Do not drop the GP unit when you remove it from the panel.
z Hold the GP unit in place after removing the fasteners.
z Use both hands.
Failure to follow the instruction can result in injury or equipment damage.

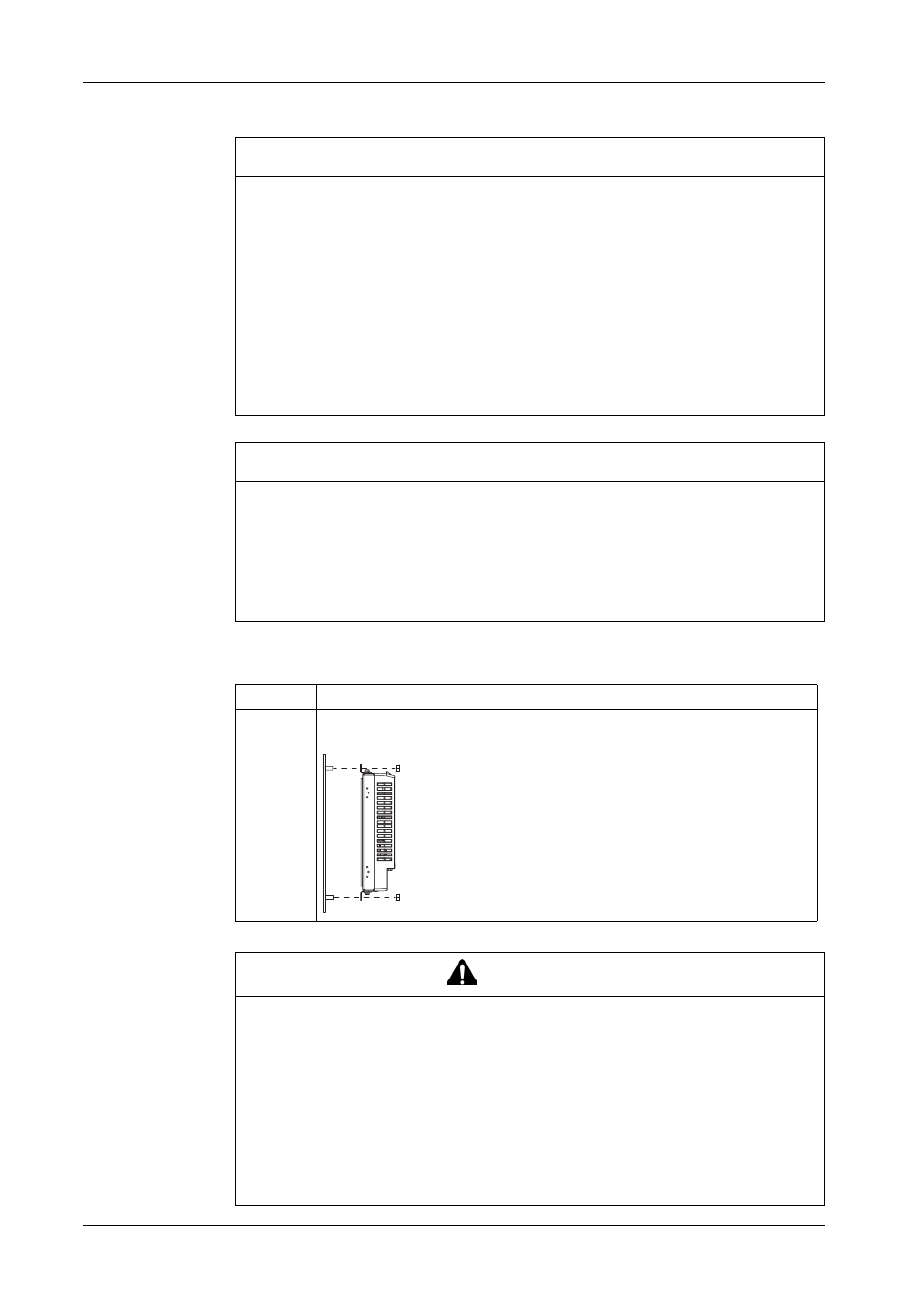

Removal diagram (profile)
