GP4000 Series Hardware Manual
169

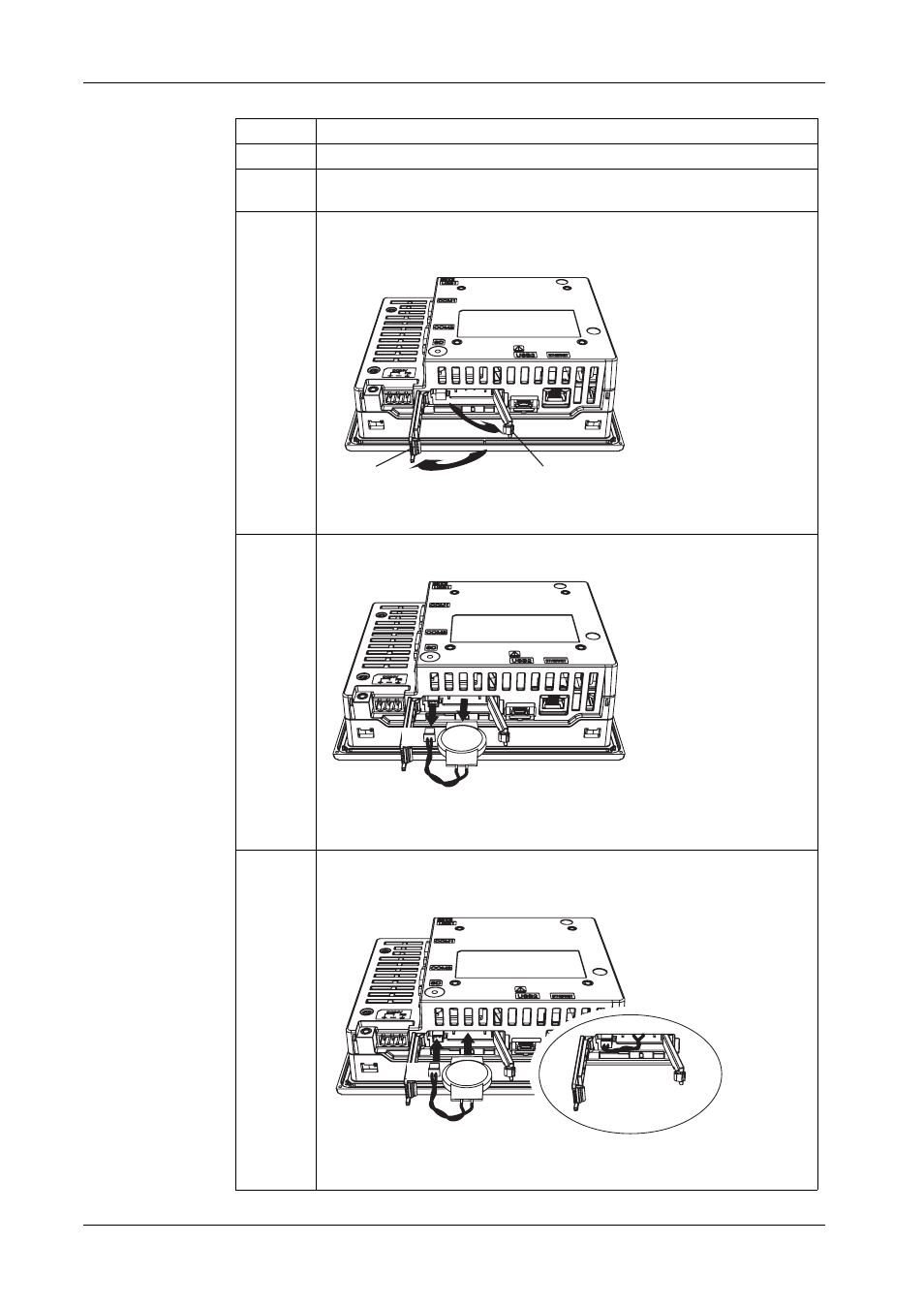

Step
Action
1
Disconnect the power supply from the GP unit.
2
Touch the housing or ground connection (not the power supply) to discharge
any electrostatic charge from your body.
3
Open the SD Card Interface Cover by pressing its tab. Next, open the
Replacement Battery Insertion Cover by pressing its tab.
1
SD Card Interface Cover / Tab
2
Replacement Battery Insertion Cover / Tab
4
Remove the primary battery and connector.
1
Connector
2
Primary battery
5
Insert the replacement battery and connector all the way. Either side of the
battery can face top or bottom.
1
Connector
2
Replacement battery
(1)
(2)
(1)
(2)
