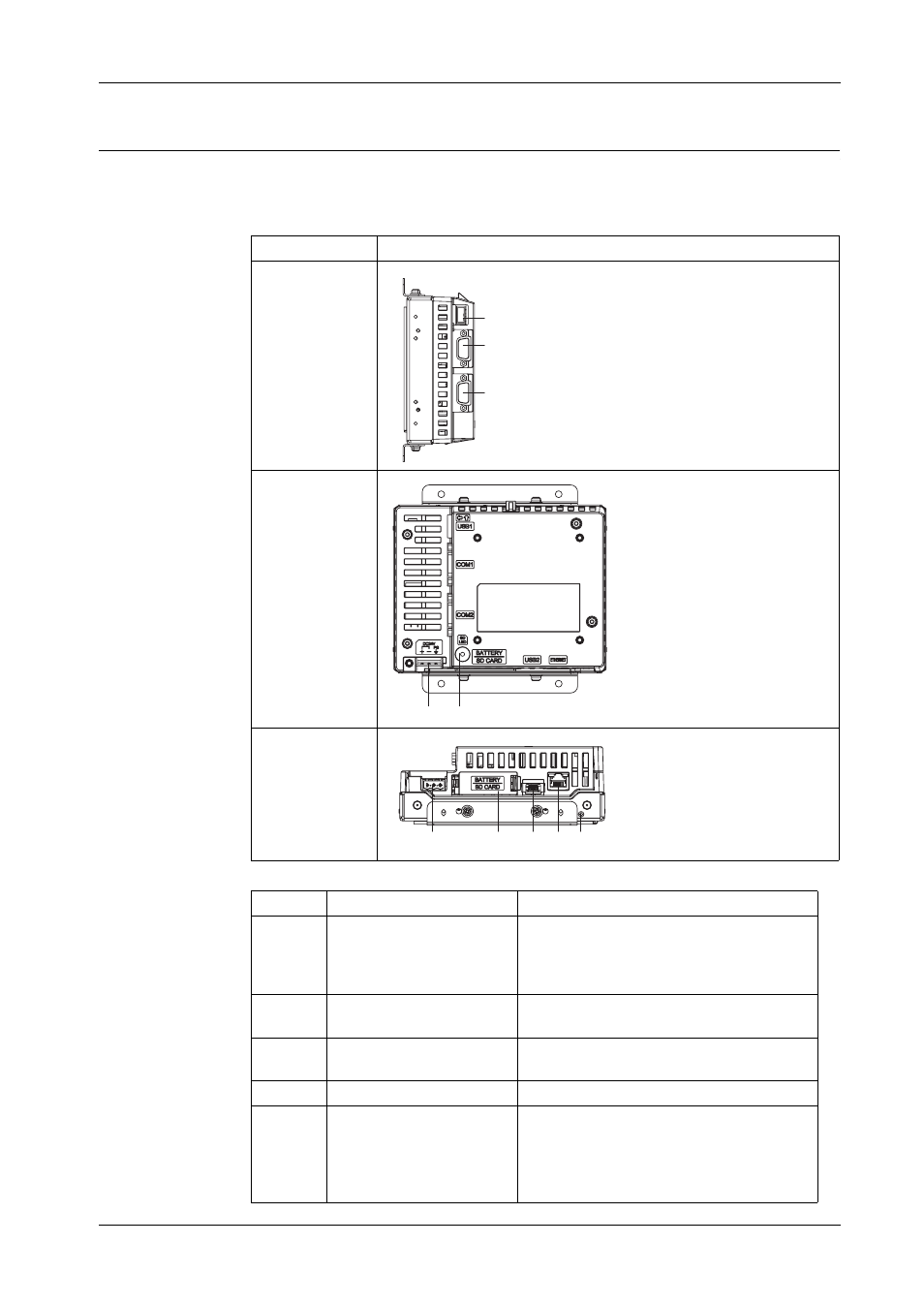

Parts Identification and Functions
PFXGP4301TADR
Side
PFXGP4301TADR
Right
Rear
Bottom
Part
Name
Description
A
USB (Type A) Interface
Conforms to USB2.0 (Type A) x 1. Power
supply voltage: 5Vdc+/-5%. Output Current:
500 mA or less. Maximum communication
distance: 5 m (16.4 ft).
B
Serial Interface (COM1)
RS-232C Serial Interface. Connector: D-Sub 9
pin (plug) x 1.
C
Serial Interface (COM2)
RS-422/485 Serial Interface. Connector: D-
Sub 9 pin (plug) x 1.
D
Power Plug Connector
-
E
SD Card Access LED
This lamp lights up when SD Card is inserted.
( see page 181)
NOTE:
Do not remove or insert the SD Card
when the LED lamp is on. Doing so may
damage data on the SD Card.
$
%
&
(
'
'
)
*
+
,
