Proface GP4600R - 12.1 Standard HMIs with Rear Mounting Options" User Manual
Page 143

GP4000 Series Hardware Manual
143

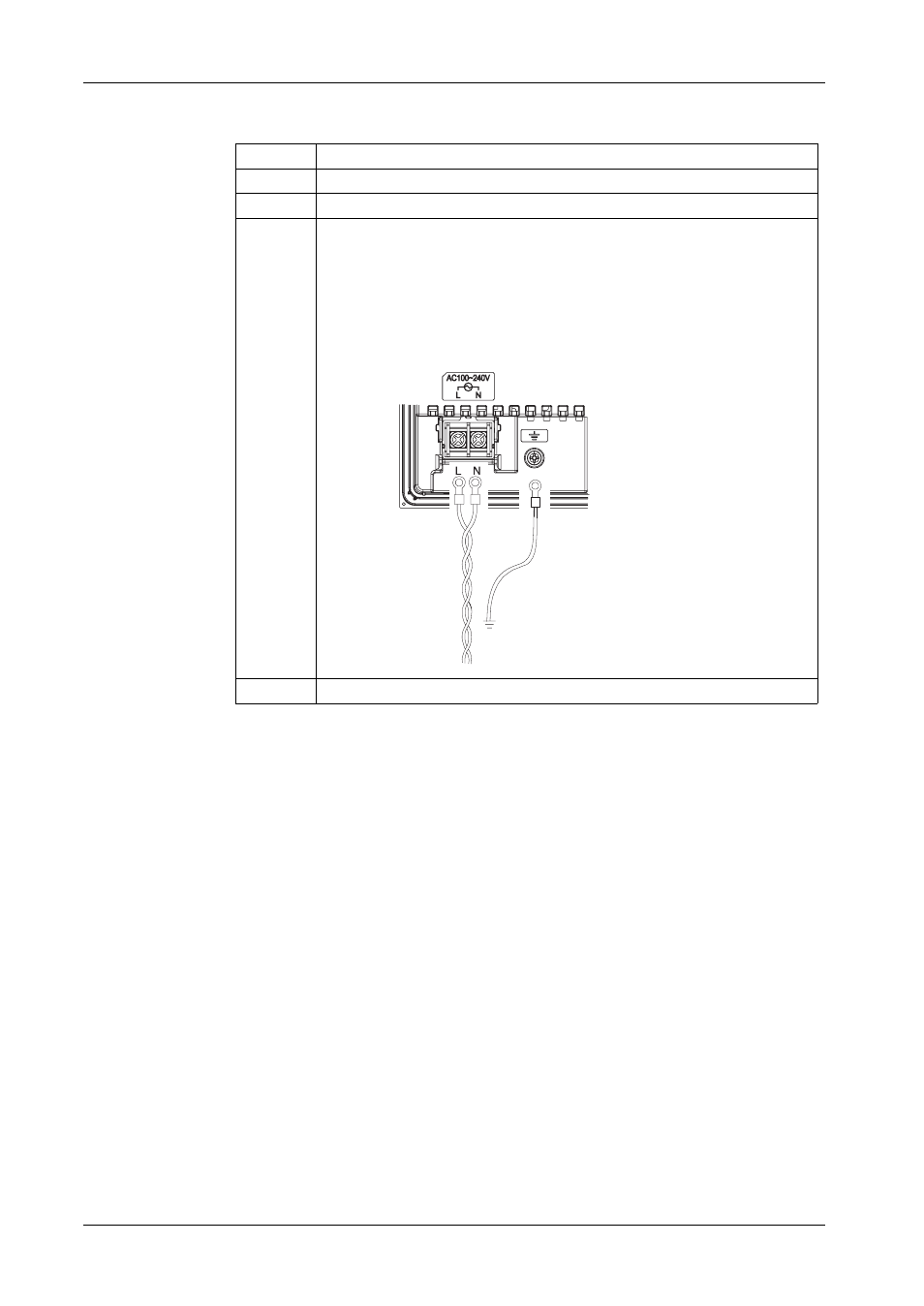

How to connect the AC Power Cord
Step
Action
1
Confirm the power cord is not connected to the power supply.
2
Open the terminal strip’s clear plastic cover.
3
Remove screws from the L, N, and FG (functional ground) terminals. Attach the
ring terminals and reinsert the screws. Check each wire to make sure the
connections are correct.
NOTE:
The torque required to tighten these screws are as follows:
z
Terminal Block: 1.4 N•m (12.4 lb•in.)
z
FG (functional ground) Terminal: 1.4 N•m (12.4 lb•in.)
4
Close the terminal strip’s clear plastic cover.
)*
