PFXGP4401TADR
F
SD Card Interface
Cover/Replacement Battery
Insertion Cover
For information on how to open the cover, and
insert or remove the SD Card, refer to SD Card
Insertion / Removal (see page 150).
For information on how to open the cover and
replace the battery, refer to Replacing the
Primary Battery (see page 168).
G
USB (mini-B) Interface
Conforms to USB2.0 (mini-B) x 1.
Communication Distance: 5 m (16.4 ft) or less.
H
Ethernet Interface
Ethernet transmission interface (10BASE-
T/100BASE-TX)
Connector: Modular jack (RJ-45) x 1. ( see
page 181)
I
Maintenance LED
( see page 181)

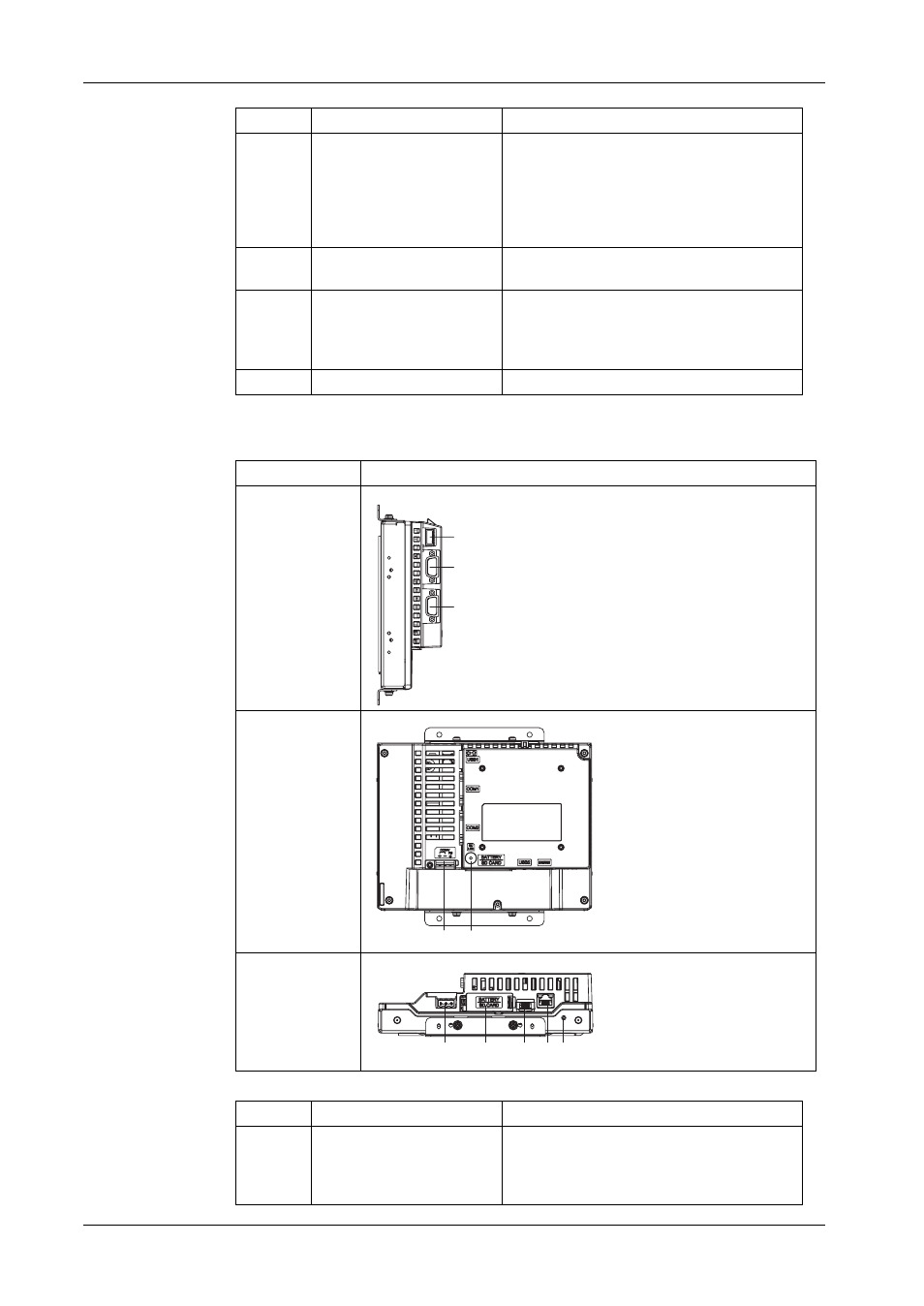

Part
Name
Description
Side
PFXGP4401TADR
Right
Rear
Bottom
Part
Name
Description
A
USB (Type A) Interface
Conforms to USB2.0 (Type A) x 1. Power
supply voltage: 5Vdc+/-5%. Output Current:
500 mA or less. Maximum communication
distance: 5 m (16.4 ft).
$
%
&
'
(
'
)
*
+ ,
