GP4000 Series Hardware Manual
223

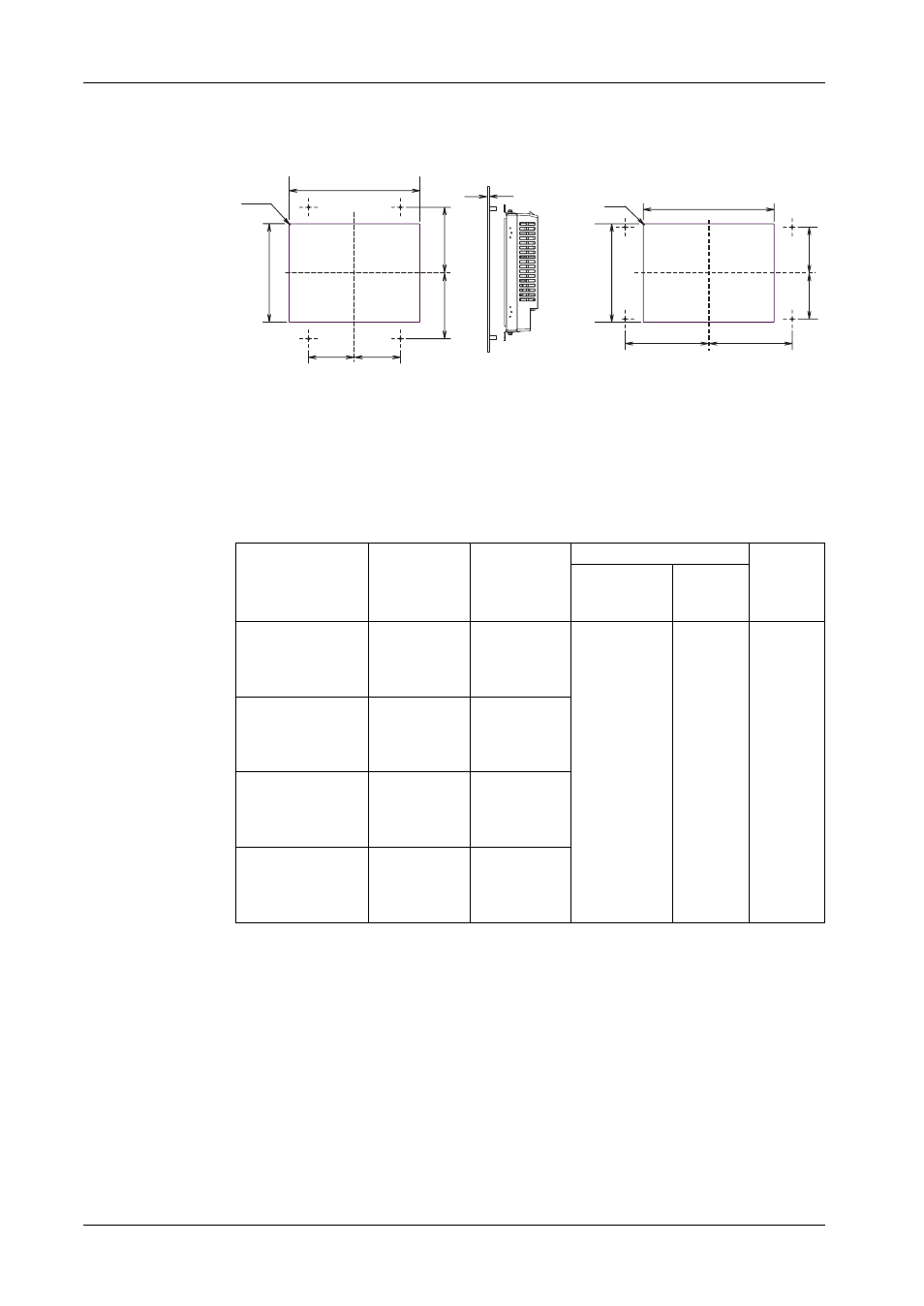

Panel Cut Dimensions
z Standard mount
a) Installation positions of stud bolts or positions of boss molds when attaching
installation brackets at the top and bottom surfaces of the GP unit
b) Installation positions of stud bolts or positions of boss molds when attaching
installation brackets on either side of the GP unit
d) 4-M4 x 10L stud bolts (no foreign material present on the base due to sparking or
similar phenomena) or boss molds
e) Center of the display area
Note: If you are designing the panel with a material other than sheet metal, ensure
that the material has sufficient strength.
A B
C
R
Panel Type
Resin
Boss
Type
PFXGP4301TADR 118.8mm
(+0.5, -0mm)
(4.68in.
[+0.02, -0in.])
90mm
(+0.5, -0mm)
(3.54in.
[+0.02, -0in.]) 1.6mm
(0.06in.) to
3.2mm
(0.13in.)
SPCC
(JIS G 3141)
or SECC
(JIS G 3313)
1.5mm
(0.06in.) to
6mm (0.24in.)
SUS304
(JIS G 4305)
2mm
(0.08in.)
or more 1mm
(0.04in.)
maximum
PFXGP4401TADR 155.3mm
(+0.5, -0mm)
(6.11in.
[+0.02, -0in.])
117.4mm
(+0.5, -0mm)
(4.62in.
[+0.02, -0in.])
PFXGP4501TADR 214.8mm
(+0.5, -0mm)
(8.46in.
[+0.02, -0in.])
162mm
(+0.5, -0mm)
(6.38in.
[+0.02, -0in.])
PFXGP4601TADR 249.6mm
(+0.5, -0mm)
(9.83in.
[+0.02, -0in.])
188.1mm
(+0.5, -0mm)
(7.41in.
[+0.02, -0in.])
%
<
<
D
H
D
G
G
D
$
&
;
D
5
%
<
<
H
E
E
E
E
; ;
5 $
;
