Type 6 Carrier Board Design Guide

Page 69

and 5 respectively. Inner Layer 3 and Layer 4 are asymmetric striplines that are

referenced to planes on Layers 2 and Layer 5.

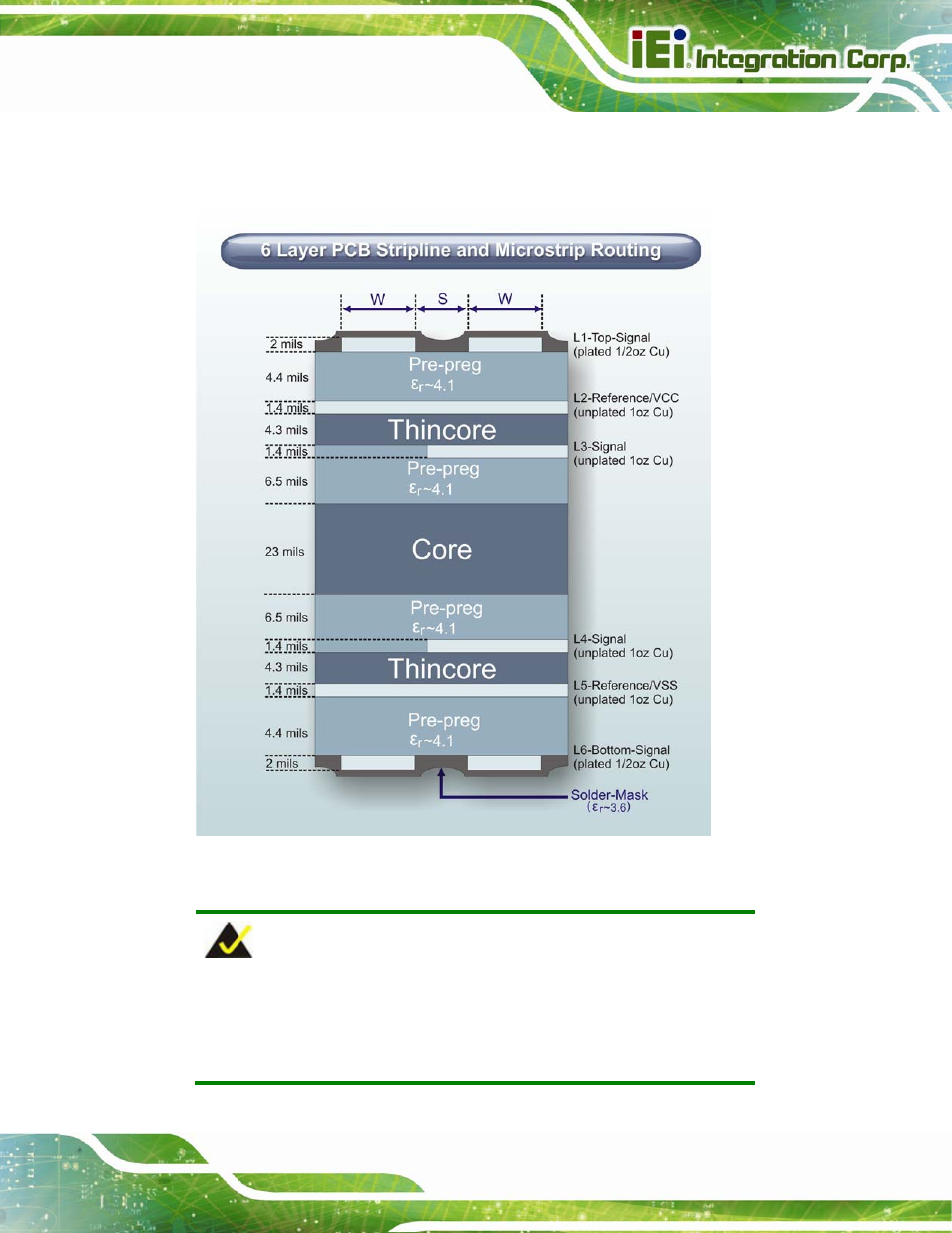

Figure 4-2: Six-Layer Stack

NOTE:

ƒ

All high-speed signals should reference solid ground planes through

the length of their routing and should not cross plane splits. To

guarantee this, both planes surrounding strip-lines should be GND.

ƒ

IEI recommends that high-speed signal routing be done on internal,
