Type 6 Carrier Board Design Guide
Page 2
1.1 Introduction
This design guide describes the design concept of the COM Express Type 6 module and
teaches customers how to develop their own COM Express carrier board. The IEI COM
Express Type 6 module is compatible with all baseboards compliant with COM Express
specification.
1.2 ICE-QM770 COM Express Module

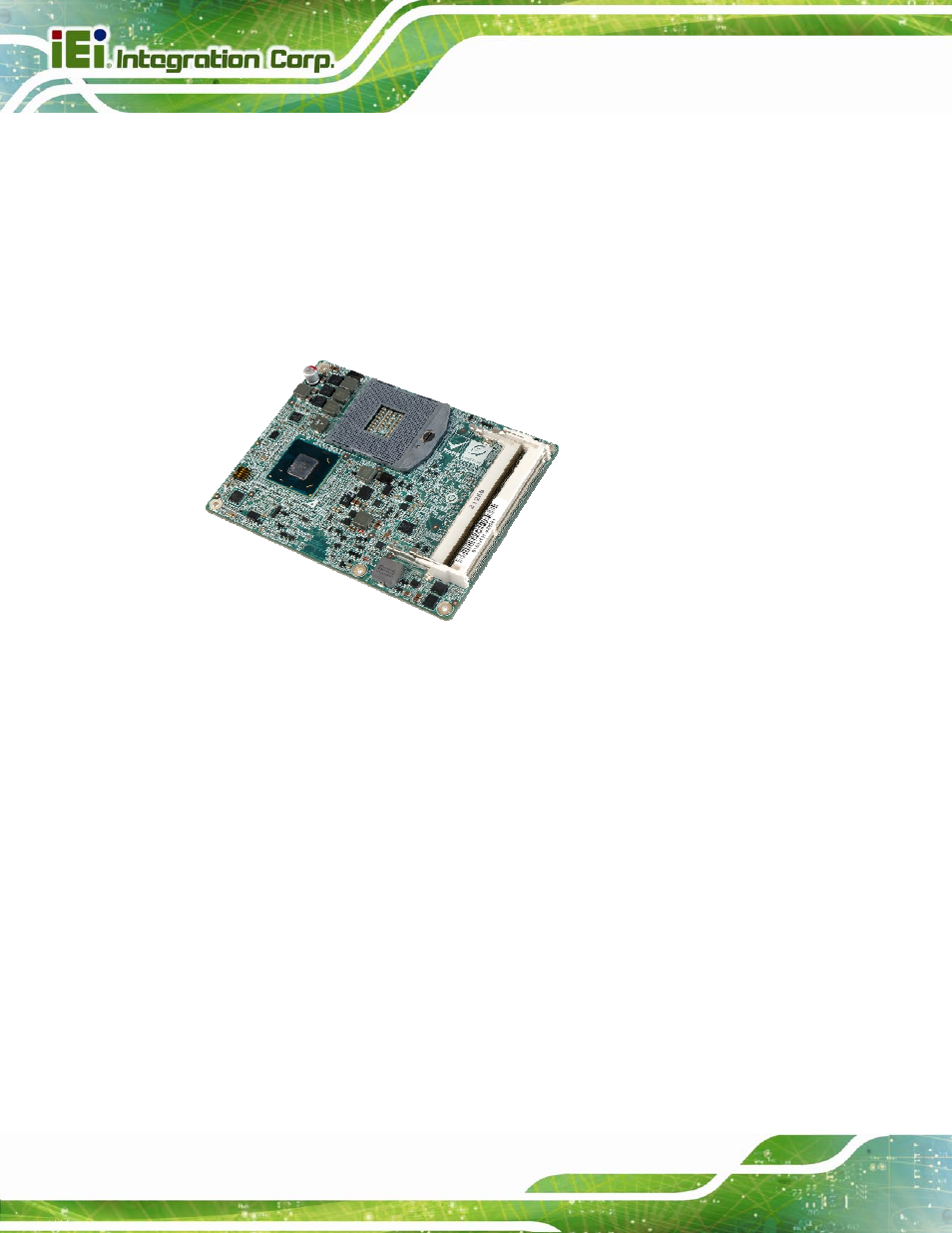

Figure 1-1: ICE-QM770
The ICE-QM770 COM Express module provides the main processing chips and is
connected to a compatible COM Express baseboard. The ICE-QM770 is equipped with
the Intel® QM77 Express Chipset and Socket G2 that supports 2nd and 3rd generation
Intel® Core™ i7/i5/i3, Pentium® and Celeron® processors. The COM Express standard
allows the COM Express baseboard to be designed, while leaving the choice of processor
till the later stages of design. The ICE-QM770 provides a low power option with the full
range of modern I/O options. The ICE-QM770 embedded module is designed for flexible
integration by system developers into customized platform devices.
