Type 6 Carrier Board Design Guide
Page 32

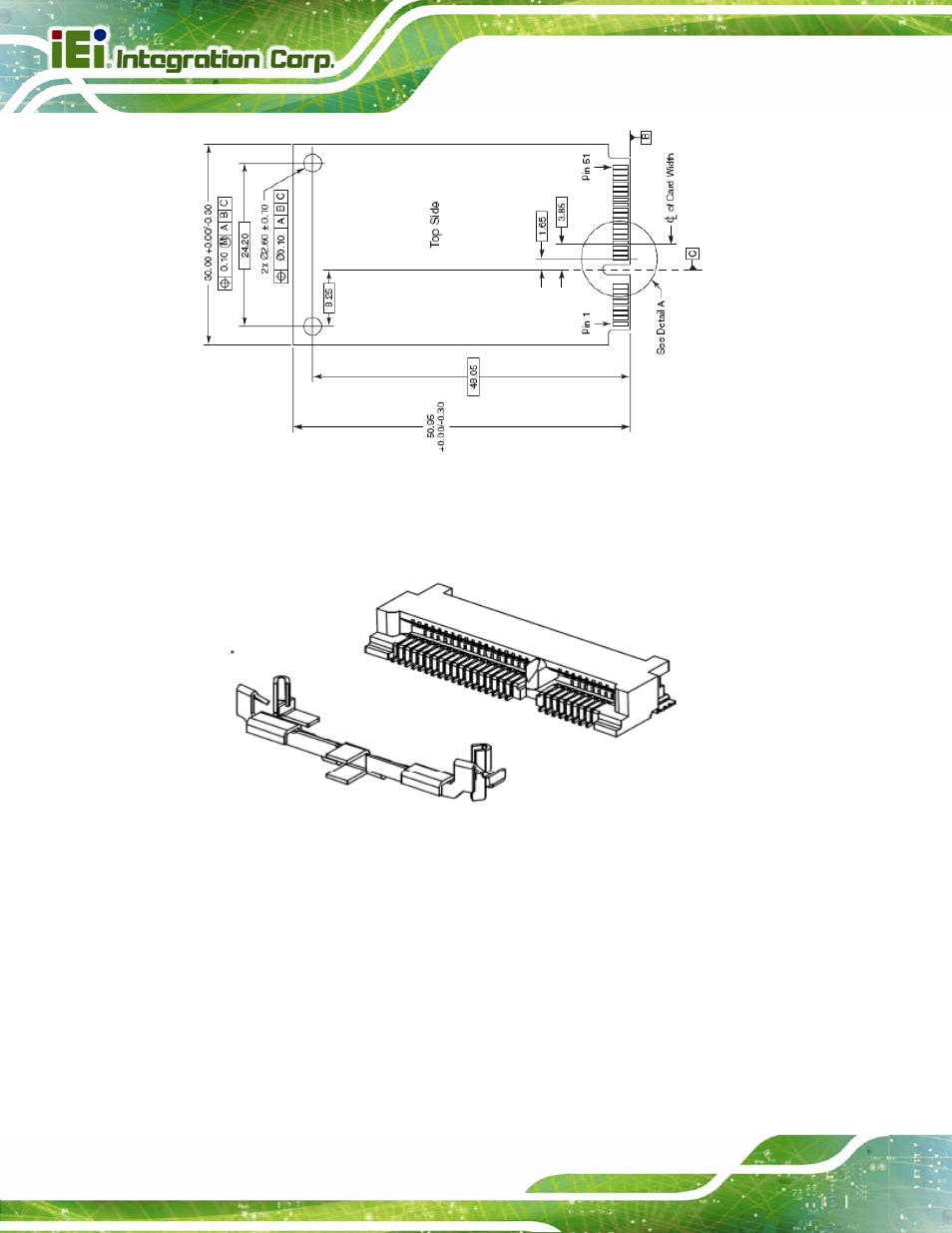

Figure 3-8: Mini Card Top Side Dimensions (Refer to www.pcisig.com)
Figure 3-9: Mini Card Connector (Refer to www.pcisig.com)
3.2.4 PCI Express Clock Buffer
COM Express only provides a set of 100 MHz clock for PCI Express device. When there
are more than one PCI Express modules used on the carrier board, the clock buffer must
be used. Please refer to the schematic diagram (Figure 3-10) suggested by IEI.
