Protocol Analysis
71
Non Control Transfers
Non Control transfers provide for writing data to and reading data from a
Device, Interface, or Endpoint. Non Control transfers are provided for Bulk,
Interrupt, or Isochronous data transferring.
Add a Data Transfer(s)
Click the Add/Insert Transfer button and choose a data transfer from the
drop-down list, for example, Bulk Out.

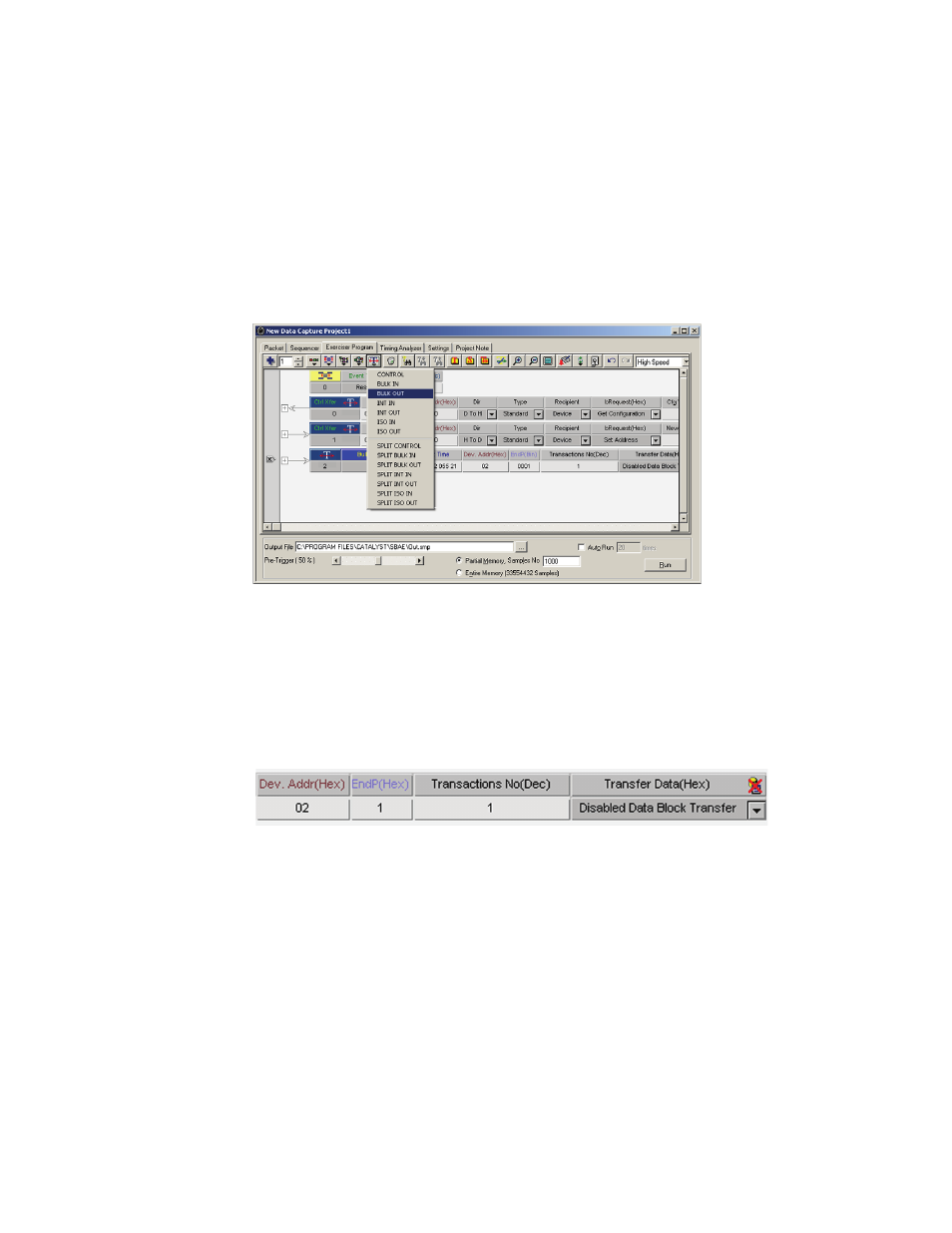

Figure 45 Adding a Data Transfer in High Speed Protocol
Set up Data Transfer
For each data transfer inserted, you must specify the appropriate Device and
Endpoint addresses. Additionally, for Out Transfers, you can specify the data
to transfer, as a pre-defined data block, manually entered data at the transfer
level, or directly entered at the transaction level.
Figure 46 Transfer Setup Fields
Specify Endpoint number
To specify an endpoint number for the current data transfer, highlight the
number (default 1) under EndP(Hex) and enter an endpoint number.
Note: The example shows data entry in Hex. However, you can right-click the
EndP(Hex), choose Format, and change the entry format to Binary or
Decimal.
