Protocol Analysis
48
After a short time the connected USB Device identification appears in the
Attached Device list box as shown in Figure 26.

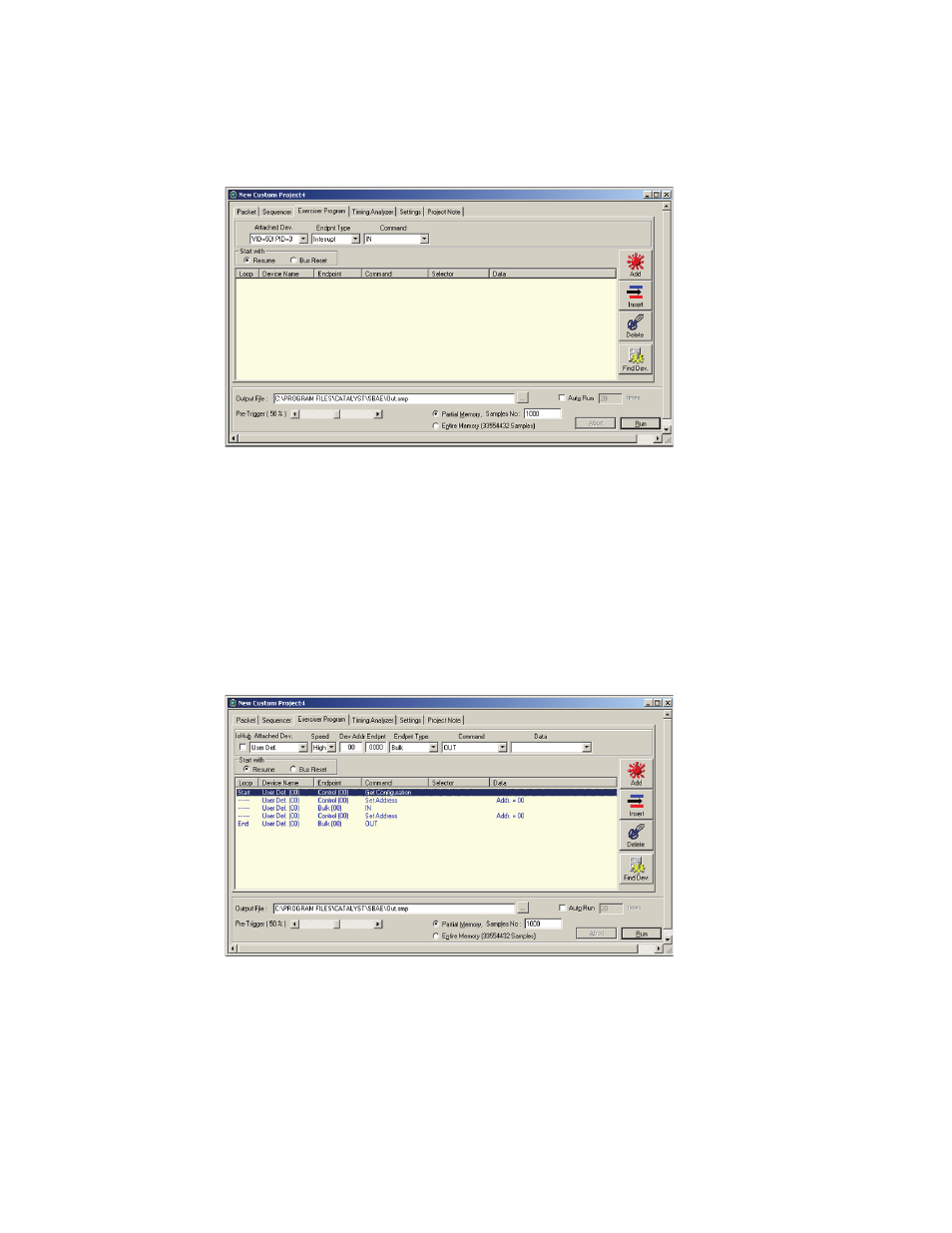

Figure 26 Device Identified
At this point you are ready to create an exerciser program for the identified
Device. As an example, choose Control as the Endpoint Type, Get
Descriptor as the command and Device as the Descriptor Type from the
corresponding list boxes and click Add. Repeat for additional program steps.
Data
For commands requiring data blocks, click the down arrow next to the Data
drop down list box and choose from a set of pre-defined data blocks. If you
need a new data block, click the Settings tab and then the Data Blocks
button. See page 50.
Figure 27 Sample Exerciser Program
Insert Line
You can insert an additional program line anywhere in the program by
highlighting an existing program line above which to insert the new line, define
the command, and click the Insert button.
