Protocol Analysis
58
Packet Payload Data
For packet types that include payload data, Conquest M2 offers a set of pre-
defined or user-defined data blocks.
Data
Enter data directly into the data edit box, define a data block by clicking the
Data Blocks... button, or open a previously created data block file. For
detailed instructions on creating Data Blocks, see “Creating a Data Block” on
page 86.
User Defined Dialog
When you choose a “User Defined” packet type, the following dialog allows
you to define an arbitrary set of patterns by checking available choices.

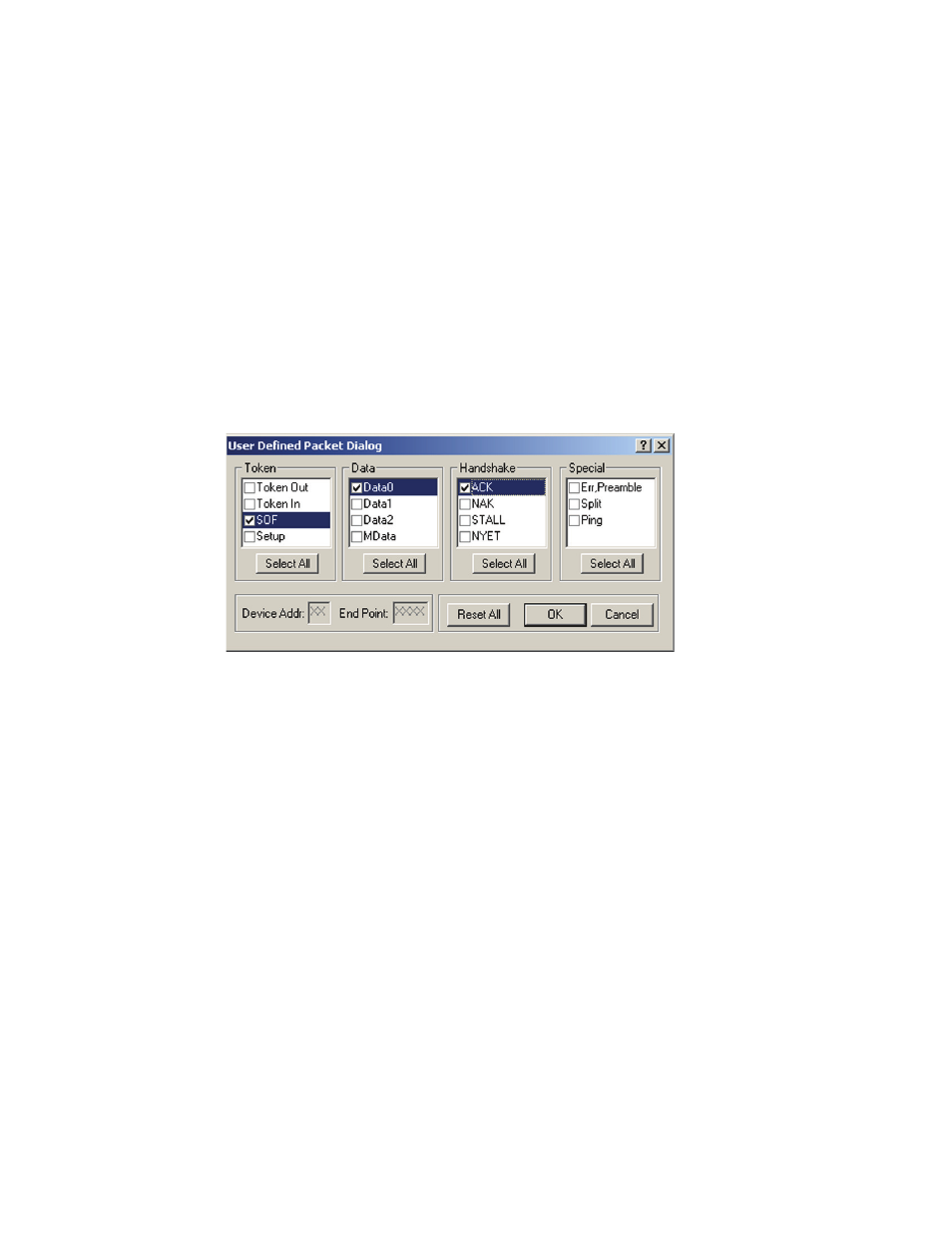

Figure 35 User Defined Packet Dialog Box
