Protocol Analysis
70
Transfer Type
The default transfer type is Standard. However, you can choose Class,
Vendor, or user-defined by clicking the down arrow under Type and choosing
from the drop-down list.
To choose a Class, click the down arrow under Type and select Class to open
the select class dialog.

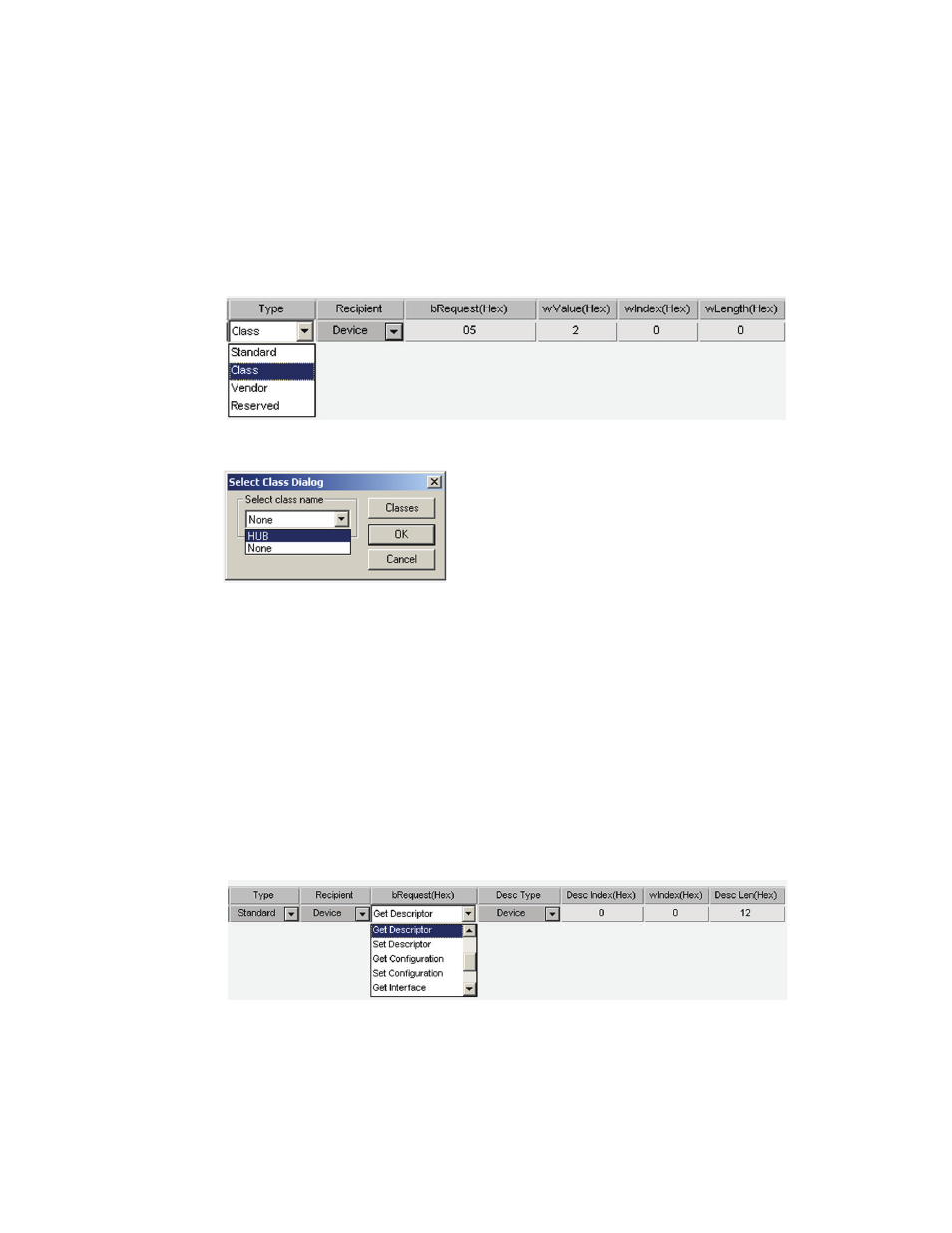

Figure 42 Choosing Class
Figure 43 Select Class Dialog
Click the down arrow for Select class name, choose a pre-defined class,
click OK, then click in the blank program entry area to register the choice.
Note that, once you register, all parameters for the transfer line are updated
automatically for the request or command selected.
Specify a New Class
You can specify a new class by clicking Classes in the Select Class Dialog
and proceed as described on page 73.
To choose a request or command, click the down arrow under
bRequest(Hex), choose a request or command, and click the blank program
entry area to register. Note: After you register, all parameters for the transfer
line are updated automatically for the request or command selected.
Figure 44 Choosing a Request or Command
Enter and set up additional Control Transfers, for example, Set Address to set
up exercising session.
