Timing Analysis (Optional)
125
Advanced Mode Timing Analysis
You can perform a timing analysis only or together with a protocol analysis. To
perform a Timing Analysis:
1. Define a trigger on the Sequencer Page or check the Trigger on
Timing Pattern and specify pattern parameters.
2. Click the Timing Analyzer tab and check either the Timing Analyzer or
Both Analyzers button in the Enable area, as shown in Figure 96.
3. Click the Run button.

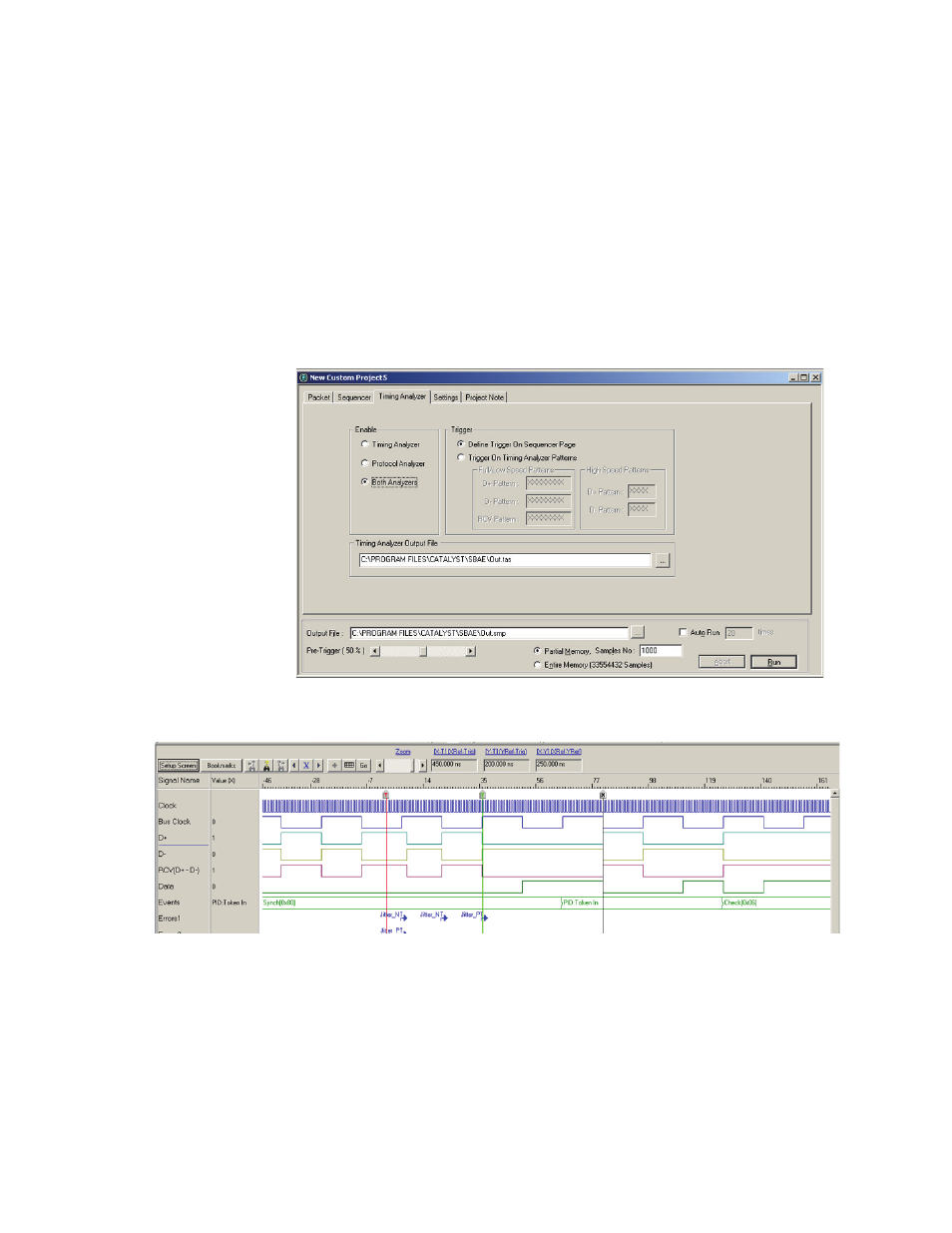

Figure 96 Advanced Mode Timing Analysis Dialog
Figure 97 Timing Analysis Result
RCV in Full/Low Speed only
The RCV Pattern specification is not available in High speed mode.
