Protocol Analysis
55
Advanced Mode (User-Defined)
This mode expands Analyzer capability by allowing you to program complex
triggering and data capture projects. Such projects are programmed by
defining USB transaction packets and then including them for data
manipulation and trigger in a sequencer. Additionally, you have the capability
to exercise the bus with pre-determined data by programming and invoking
the exerciser.
Capture Data Project
Make sure that the configuration is set to use Advanced Analyzer. See
“Creating Projects” on page 30.

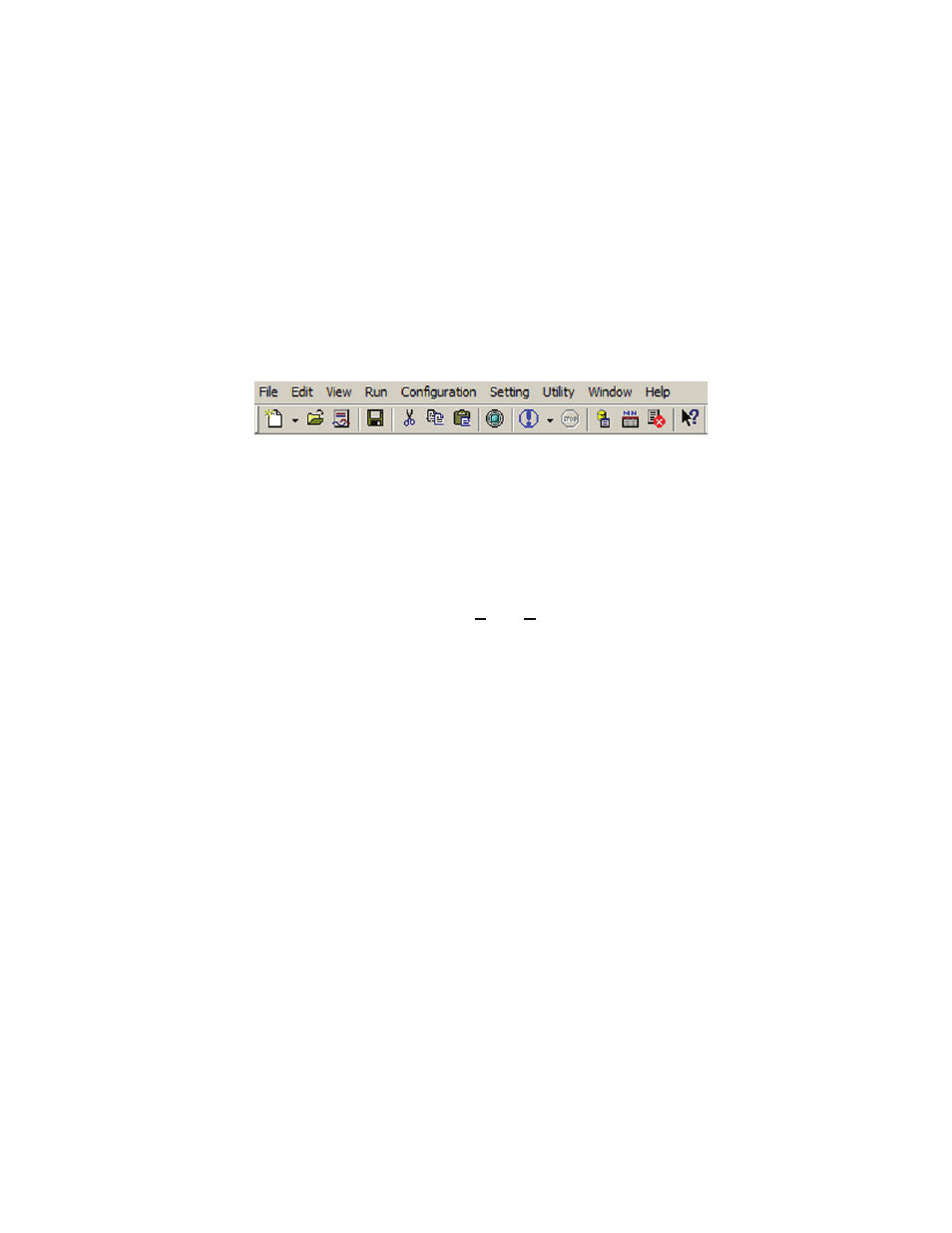

Last Project
Clicking the Green button opens the last project saved.
New Project
To start a New project, select File > New > Analyzer/Host Exerciser Project.
For a custom project:
•
Define a set of packets
• Program the Sequencer
• Program the Exerciser (Optional)
Note: To perform data capture and triggering with exerciser generated data you must
use the Exerciser Port as shown in Figure 3.
