Installing the Analyzer
11
Exerciser Configuration Connections
Figure 3 shows Conquest M2 used to exercise a USB Device. In this
configuration, Conquest M2 acts as the USB Host.

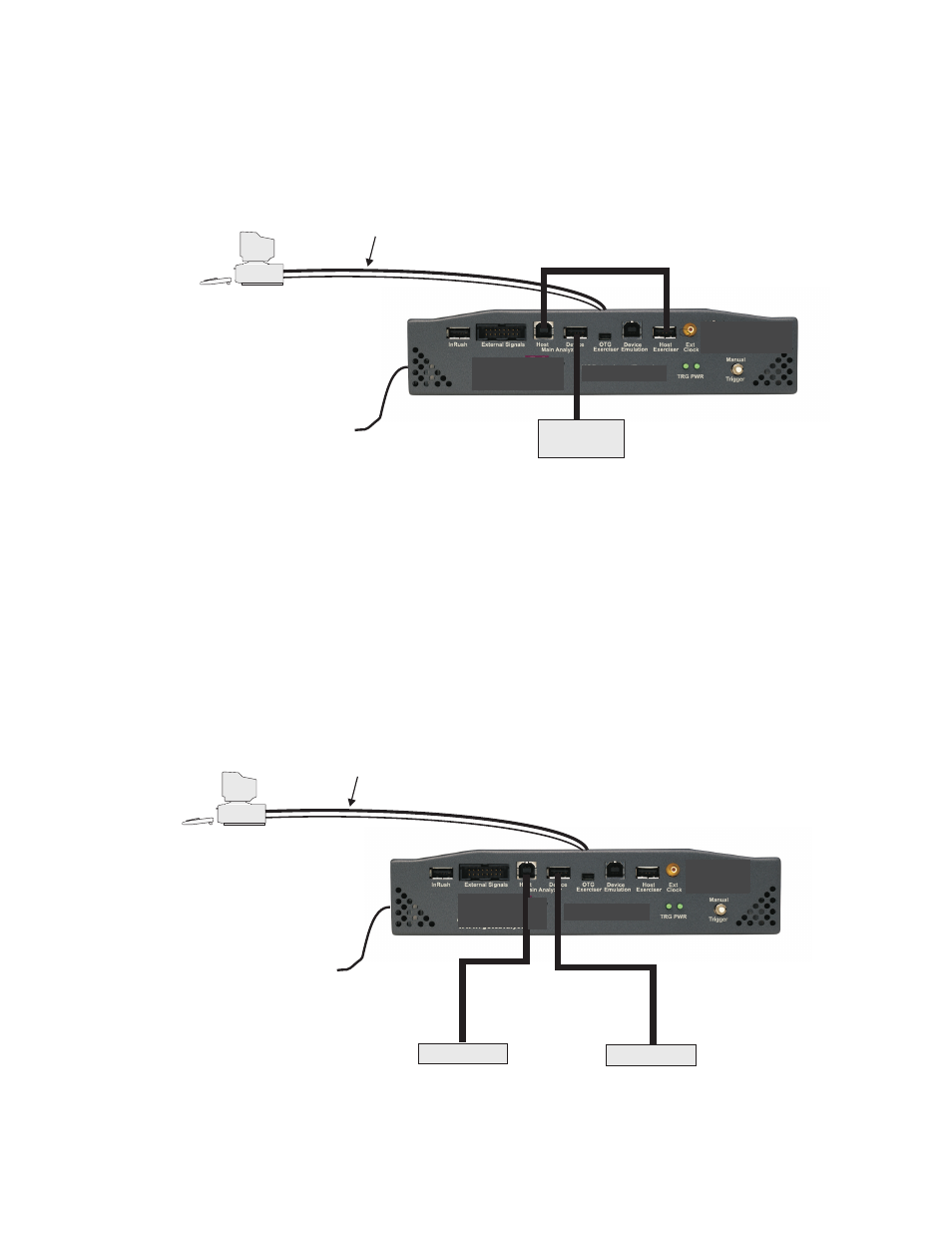

Figure 3 Conquest M2 Configured as an Exerciser
1. Connect Conquest M2 to a Parallel, USB, or Ethernet Port on a system
running the Conquest Protocol Suite analysis software, with the
appropriate cable.
2. Connect the USB Device to the Main Analyzer Port on Conquest M2.
3. Connect the Main Analyzer Port to the Host Exerciser Port using a USB
cable.
OTG Analysis Connections
Figure 4 Conquest M2 Connections for OTG Analysis
Host Interface Cables
Windows Based System
With Analyzer Software
100V - 240V In USB Device
Exercised
Host Interface Cables
Windows Based System
With Analyzer Software
100V - 240V In
OTG B-Device OTG A-Device
OTG Std-A to Mini-B Cable
OTG Mini-A to Std-B Cable
