Timing Analysis (Optional)
123
Timing Analysis (Optional)
Note: High Speed Timing Analysis is not available in Conquest. It is available in
Conquest M2 (see “Conquest M2 versus Conquest” on page 1).
Easy Mode Timing Analysis
You can perform a timing analysis only or together with a protocol analysis. To
perform a Timing Analysis:
1. Define a trigger on the Data Capture and Trigger Page or check the
Trigger on Timing Pattern and specify pattern parameters.
2. Click the Timing Analyzer tab and check either the Timing Analyzer or
the Both Analyzers button in the Enable area as shown in Figure 94.
3. Click the Run button.

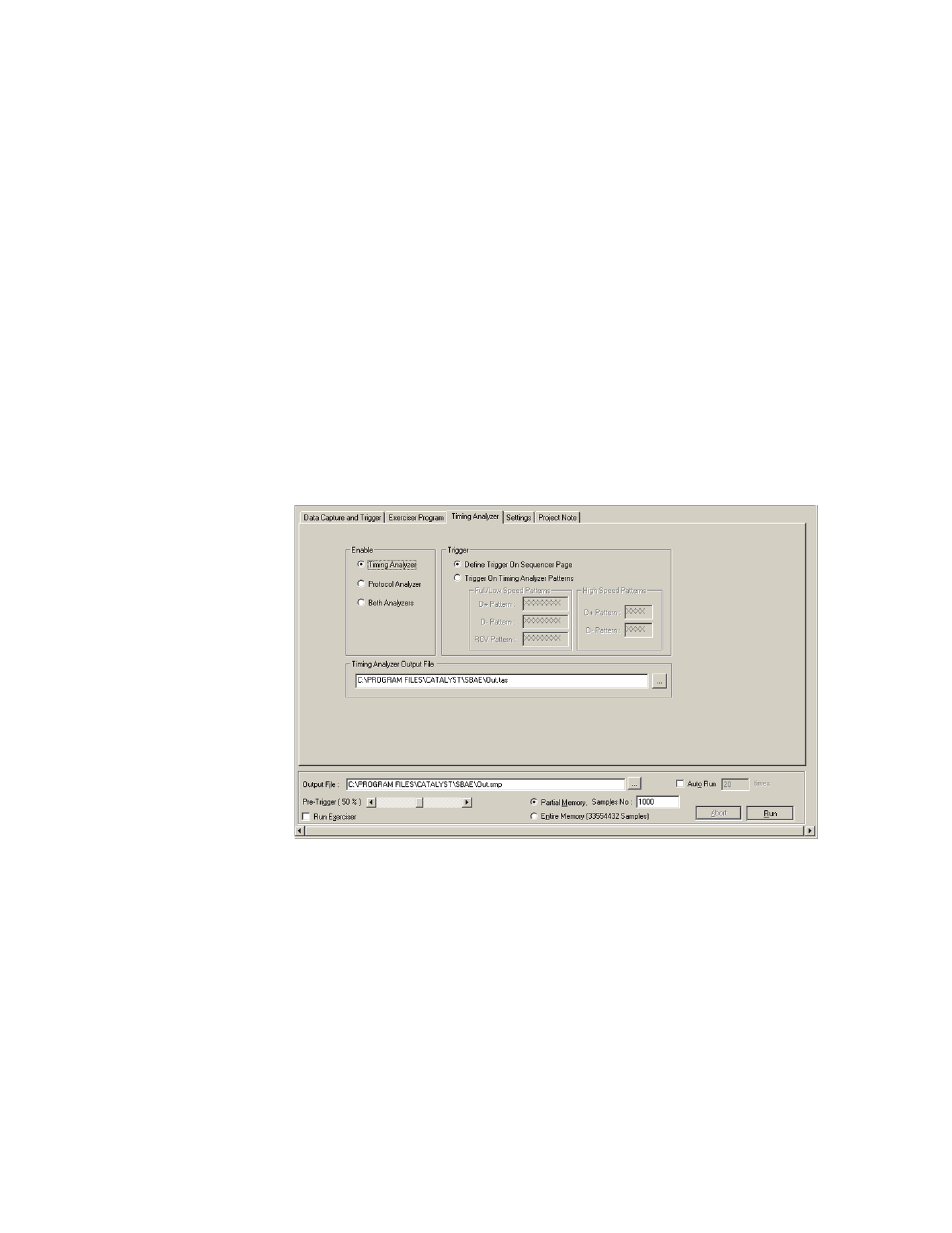

Figure 94 Enabling Timing Analysis
