Insert Program Lines
You can insert additional program lines by positioning the cursor on an
existing line. Click Add/Insert to toggle to the insert state, enter the number of
lines to insert, and click the appropriate line-type button and select the line
type to insert. The specified number of lines inserts above the line where you
positioned the cursor.
Delete Program Lines
To delete a program line, position the cursor in the line to remove and click the
Delete button. You can also select and highlight multiple lines for deletion.
Programming with Transfers
Transfers are a powerful way to create an exerciser program that automates
time consuming tasks such as generating several transactions that make up a
transfer.
Start with Bus Reset
Insert a Reset followed by a SOF packet in the start of the program to assure
that the timing and frame number are automatically set, allowing you to insert
your own transactions between the SOF packets.
Note: Small Reset values are not supported and will prevent the script from
executing. Values should be greater than 5 µsec for Low/Full speed scenarios
and greater than 1 msec for Hi Speed scenarios.
To add a Bus Reset Event, click the Add/Insert Event button and choose
Reset from the drop-down list.

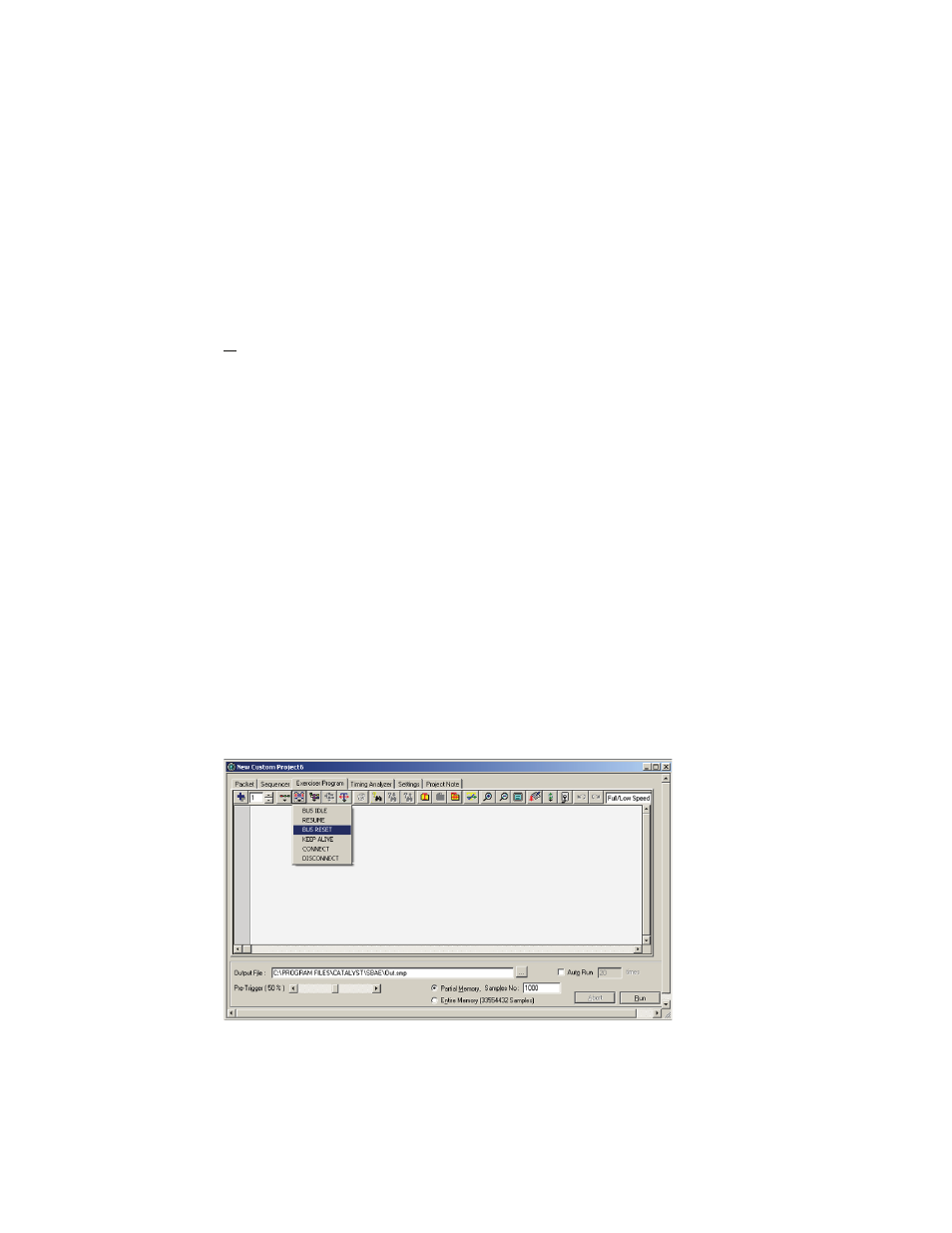

Figure 40 Adding a Bus Reset
