Using the Cursors and Bookmarks
The captured data display incorporates three cursors labeled X, Y and T (See
Figure 135). All of the cursors are initially overlaid and positioned at location 0,
which is the trigger position of the display. The Trigger, or T, cursor is the
measurement reference and is always locked at location 0 in the display.
Positioning the X Cursor
To position the X-Cursor within the captured data display, click the line in
which to place the cursor.
Positioning the Y Cursor
To position the Y-cursor within the captured data display, click the point at
which to position the cursor.

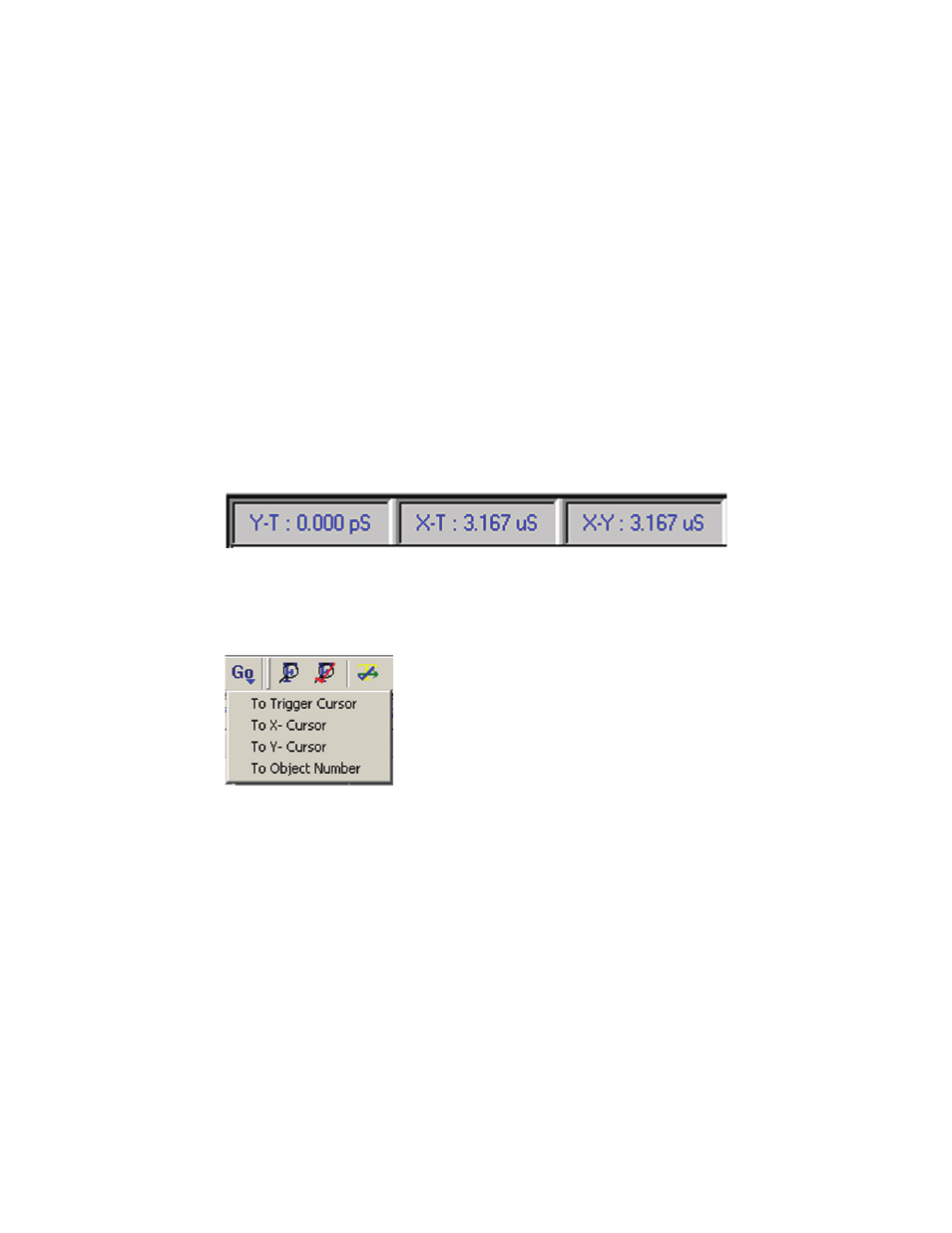

Time differences between the cursors are displayed on the main toolbar.
Locate Cursors
To quickly locate any of the cursors within the result, click the Go button on the
toolbar and choose the cursor to locate.
