Protocol Analysis
66
Protocol Errors
You can set the sequencer to trigger on protocol errors at any state by clicking
Packet and then choosing Protocol_Error. To exclude some protocol errors,
set the protocol mask as described in the following section.
For a description of the detected protocol errors, see page 104.
Setting a Protocol Error Mask
To mask protocol errors, click the Protocol Errors button on the
toolbar to open the Protocol Errors Dialog box. Uncheck the protocol errors to
exclude and click OK.

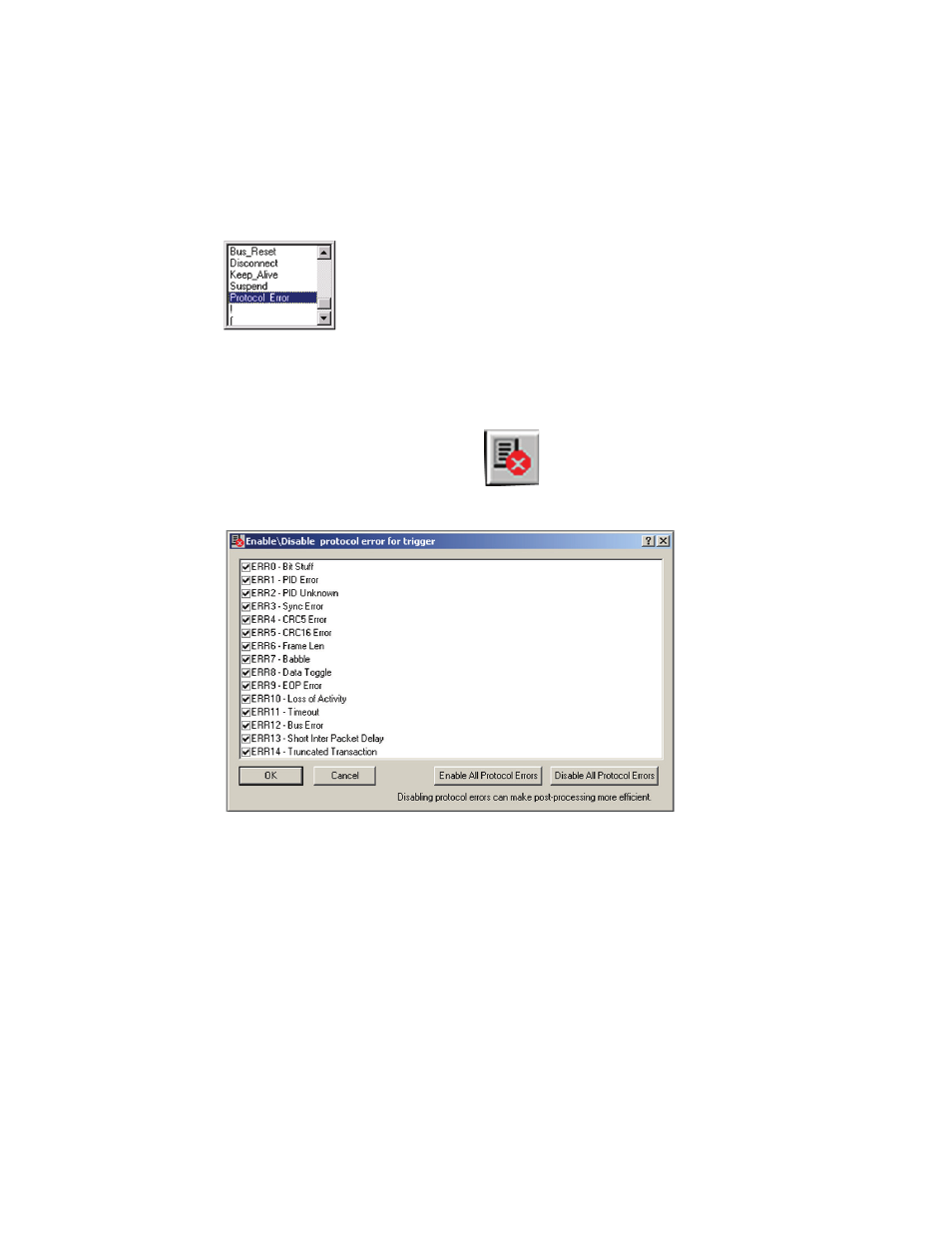

Figure 38 Protocol Error Mask
