Protocol Analysis
67
Host Exerciser (Optional)
Note: To perform data capture and triggering with exerciser generated data, you
must use the Exerciser Port as shown in Figure 3.
Programming the Exerciser In Advanced Mode
To program the exerciser, click the Exerciser Program tab to open the
exerciser programming dialog box, as shown in Figure 39

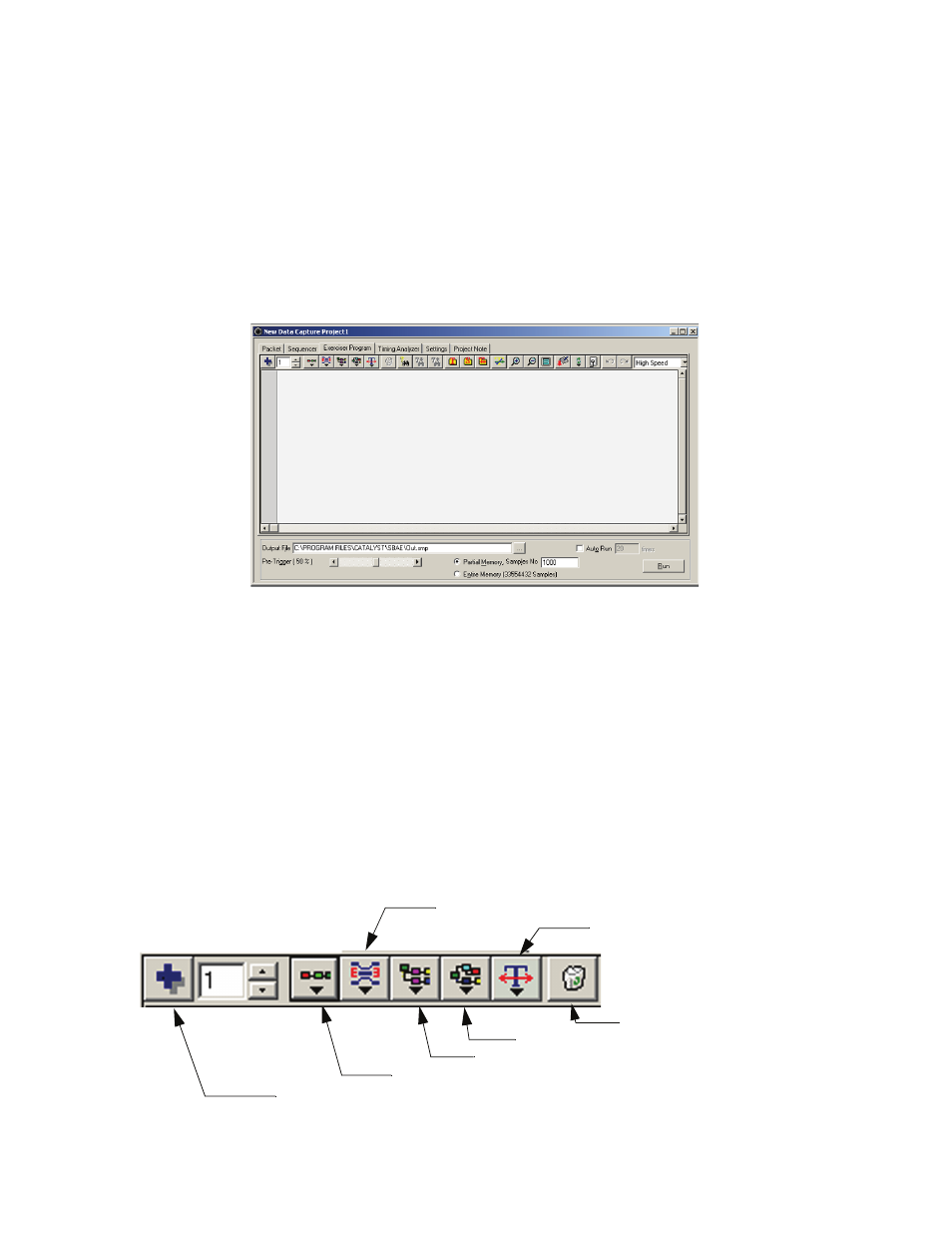

Figure 39 Exerciser Programming Dialog Box
Set the Host Speed First!
Click the down arrow for the speed selection drop-down box and choose an
operating speed.
Maximum Program Lines
You can define up to 999 exerciser program lines. Each line is an event or
packet transmitted on the bus.
Add Program Lines
To add program lines, enter the number of lines to add, select the type of
program lines to add by clicking the appropriate category button from the
choices shown below, and then select the line type.
Add/Insert Toggle (Shown in Add state)
Add/Insert Packet
Add/Insert Event
Add/Insert Transaction
Add/Insert Split Transaction
Delete Program Line
Add/Insert Transfer
