3. Chose USBControlTransfer as protocol command and Class as Script
Type, then click Next.

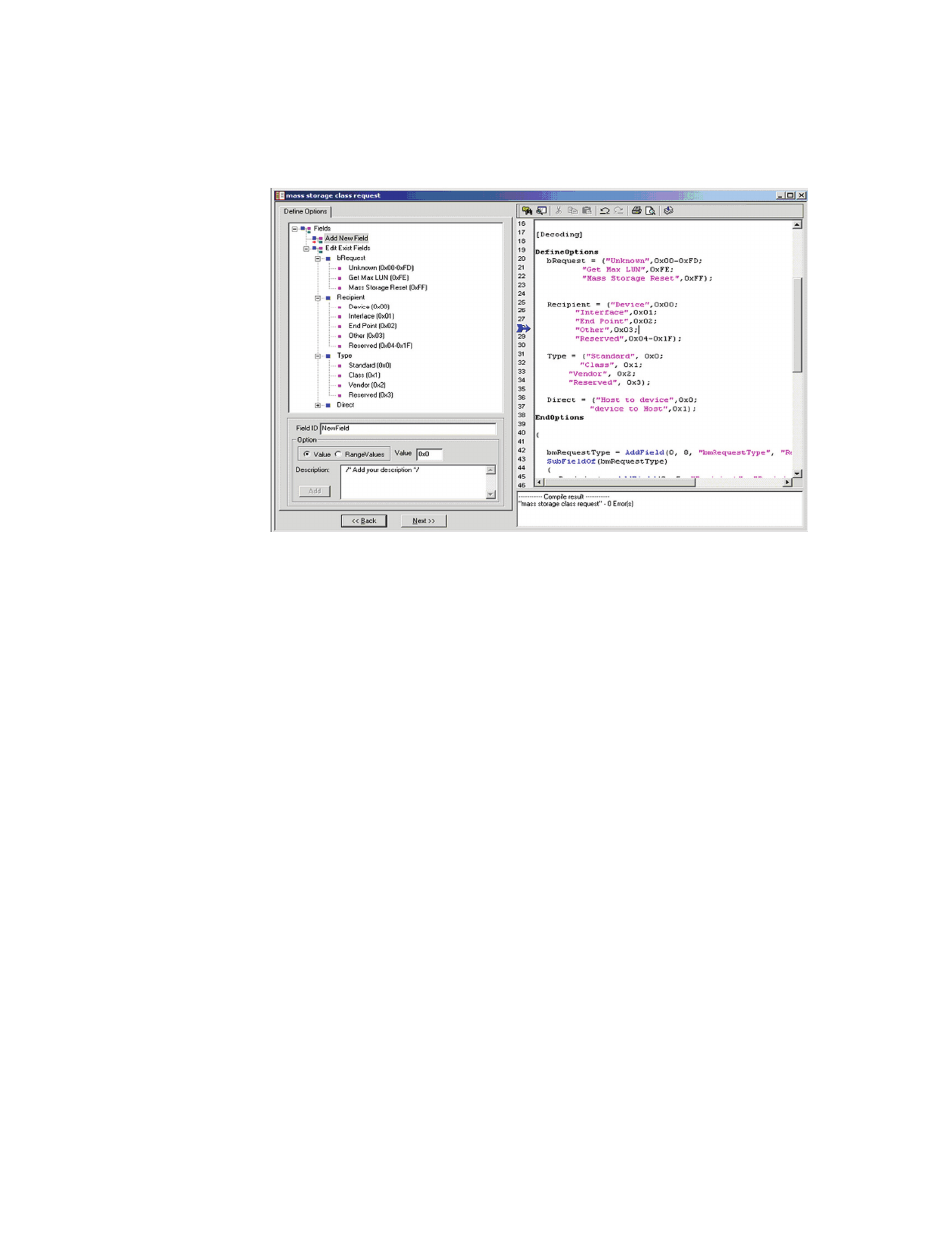

Figure 155 Defining Field Options
4. Define the Field Options listed in Table 7 .
• Select Add New Field from Tree and define proper ID name and
option Value (or Value range)+ Description.
• To add a new option to a field, select the field from the tree, define a
value and a Description, and then click the Add button.
• To modify an Added option, select it from tree and modify its
descriptions or values from Edit boxes below the tree control. (You
can modify it from the editor directly)
5. Click Next.
6. Add a Valid Range to your script, if needed. (You do not need to define
any valid range for this example script.) (Press the Next button to go to
the Next page.)
7. Add your decoding statements to the decoding area by defining your
command and adding it as a decode command.
