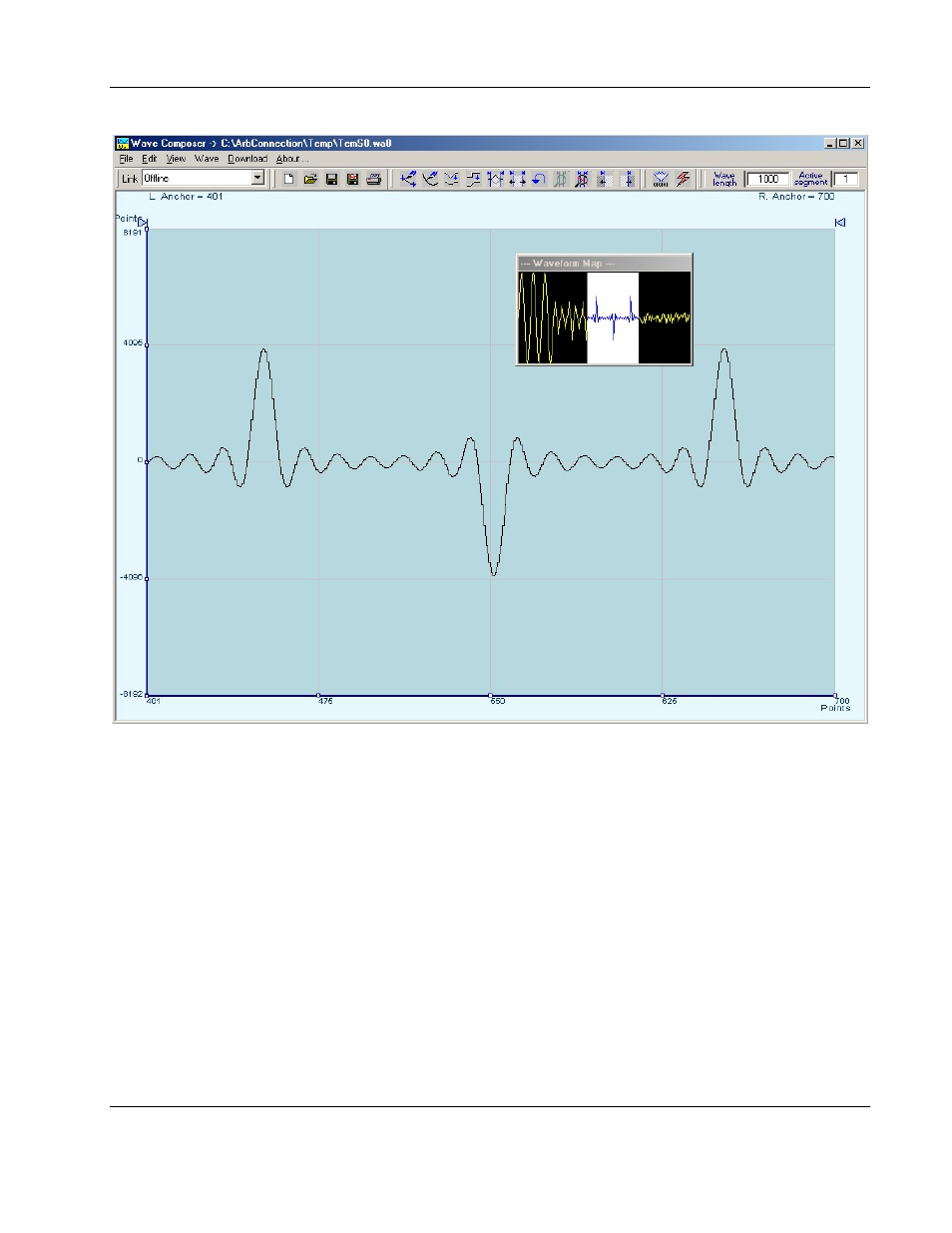

Figure 3-46. Zooming In on Waveforms
Wave Commands The Wave commands let you create waveforms on the screen. The
Wave command has a library of 8 waveforms: Sine, Sawtooth,
Square, Sinc, Gaussian, Exponent, Pulse, and Noise. It also lets you
create waveforms using the Equation Editor. Information how to
create waveforms using the Wave commands is given below.
Creating Waveforms From the Built-in Library
You can create any waveform from the built-in library using the Wave
command. Clicking on one of the Wave options will open a dialog
box. An example of the Sine waveform dialog box is shown in Figure
3-17. This dialog box is representative of the rest of the waveforms,
so other waveforms will not be described.
