User Manual PXA125

ArbConnection 3-47

The Opening
Screen

Invoke ArbConnection by double clicking on the icon. If you cannot
find the icon on your desktop, click on Start, Programs and
ArbConnection. The opening screen will show. If you installed the
program correctly, your screen should look as shown in Figure 3-1.

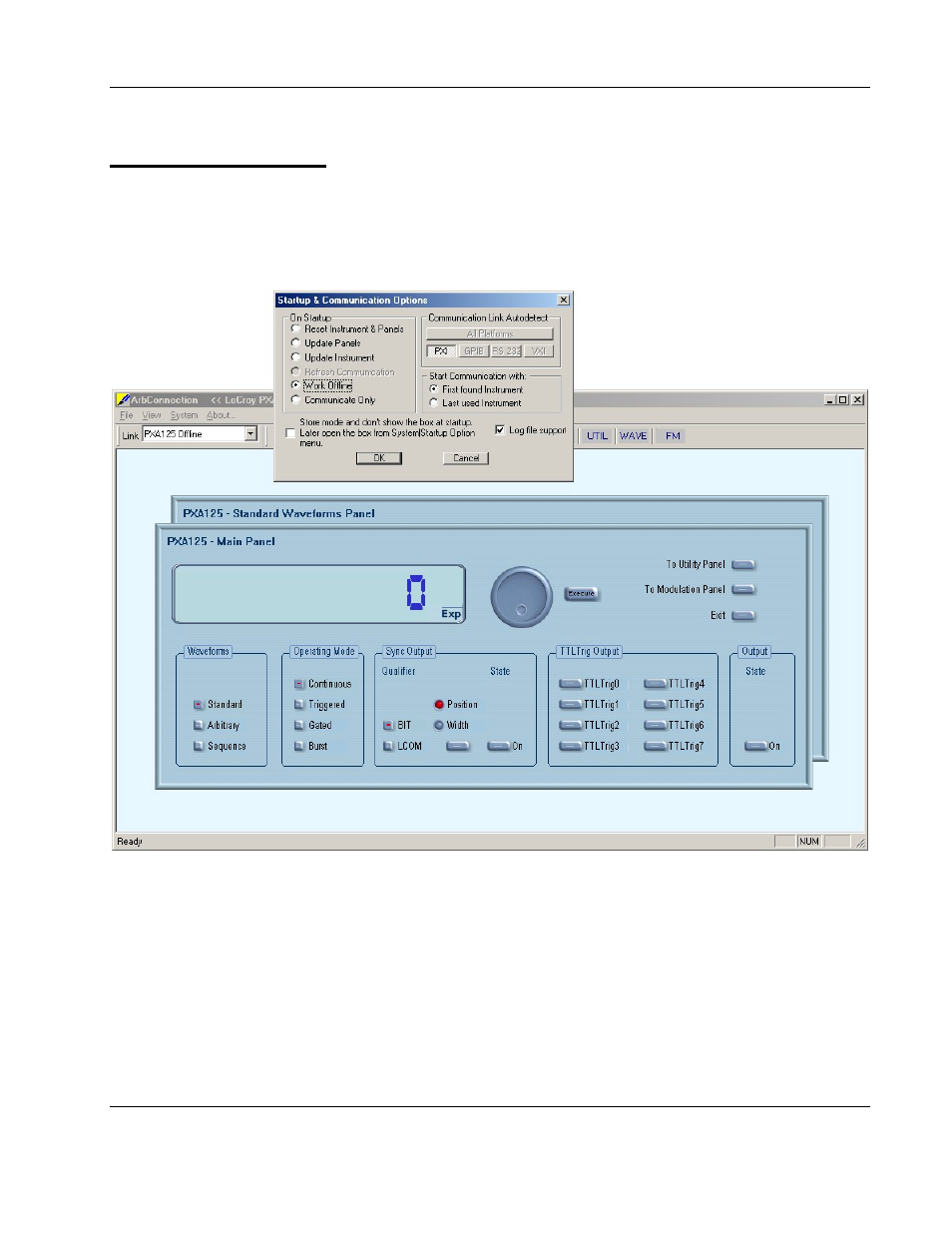

Figure 3-31. The opening Screen

The Startup & Communication Options dialog box is displayed at the
top. You can check the “Store and don’t show…” so next time you
invoke ArbConnection, this dialog box will not be displayed. The
purpose of this dialog box is to update the program in the way you
intend to use it. Since ArbConnection is used for other platforms, it is
extremely important to make sure that the selected communication
link for the PXA125 is PXI so the first thing to do is click on the PXI
