User Manual PXA125
ArbConnection 3-101
select Noise. Click OK and watch your waveform screen draw noisy
signal. From the File menu select Save Waveform As… and save this
waveform using the name Noise.wav.
Step 3 – Write and compute the original equation:
Ampl(p)= Sine.wav*sin(omg*p*10)*Noise.wav/1000
If you did not make any mistakes, your waveform screen should look
as shown in Figure 3-29.

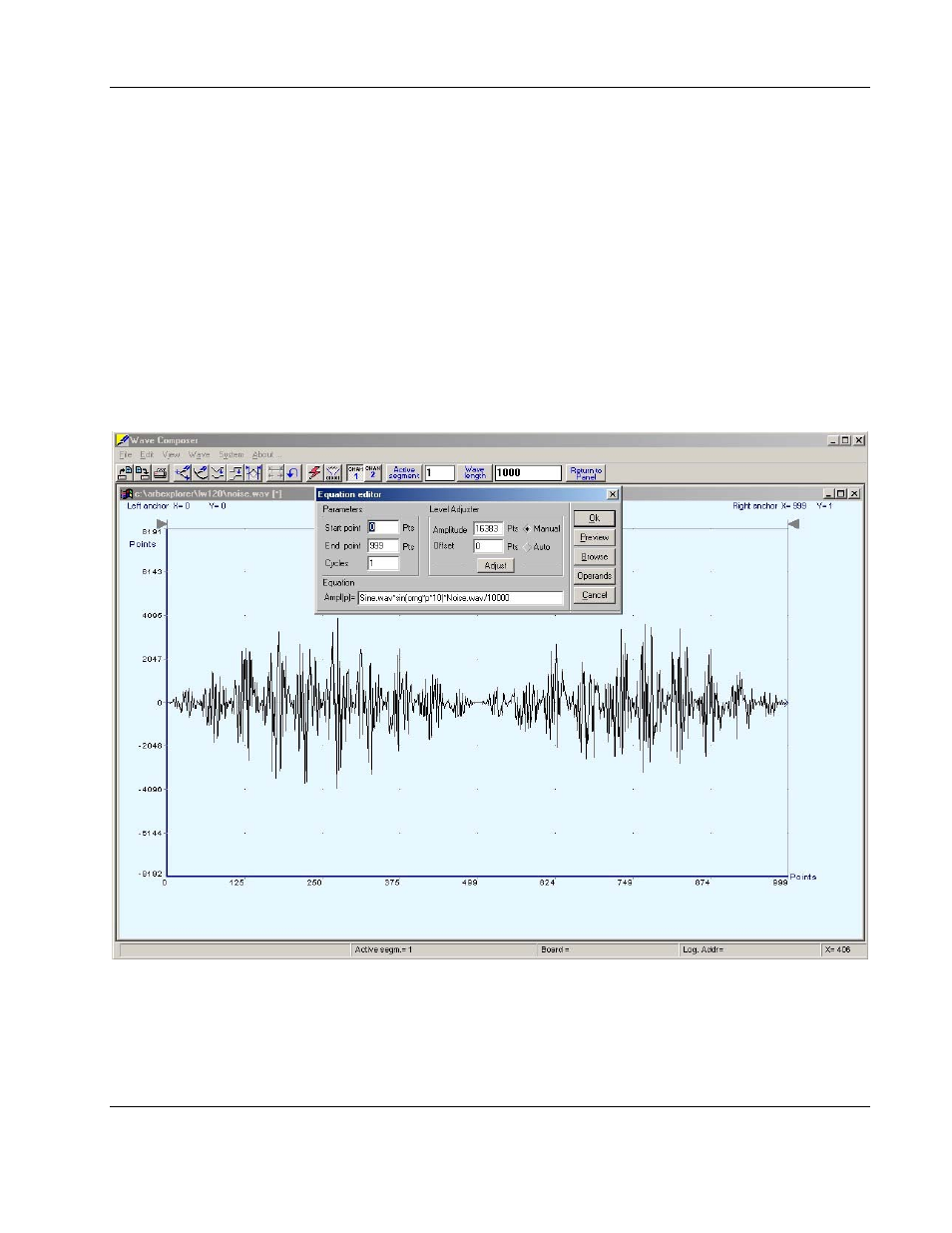

Figure 3-59. Combining Waveforms Into Equations
