User Manual PXA125
2-26 Installation
The next step is necessary to verify that the device driver was
installed properly and is displayed correctly in the System Device
Manger. Do the following:
1. Click on the Start button, then Settings and then Control Panel.
2. In the Control Panel dialog box, find the icon labeled System.
3. Double-click on the System icon and then on the Device
Manager tab.
4. Click on LeCroy. If you installed the driver properly, your device
manager should show the Arbitrary Waveform Generator Model
PXA125 as shown in the figure 2-8 below.

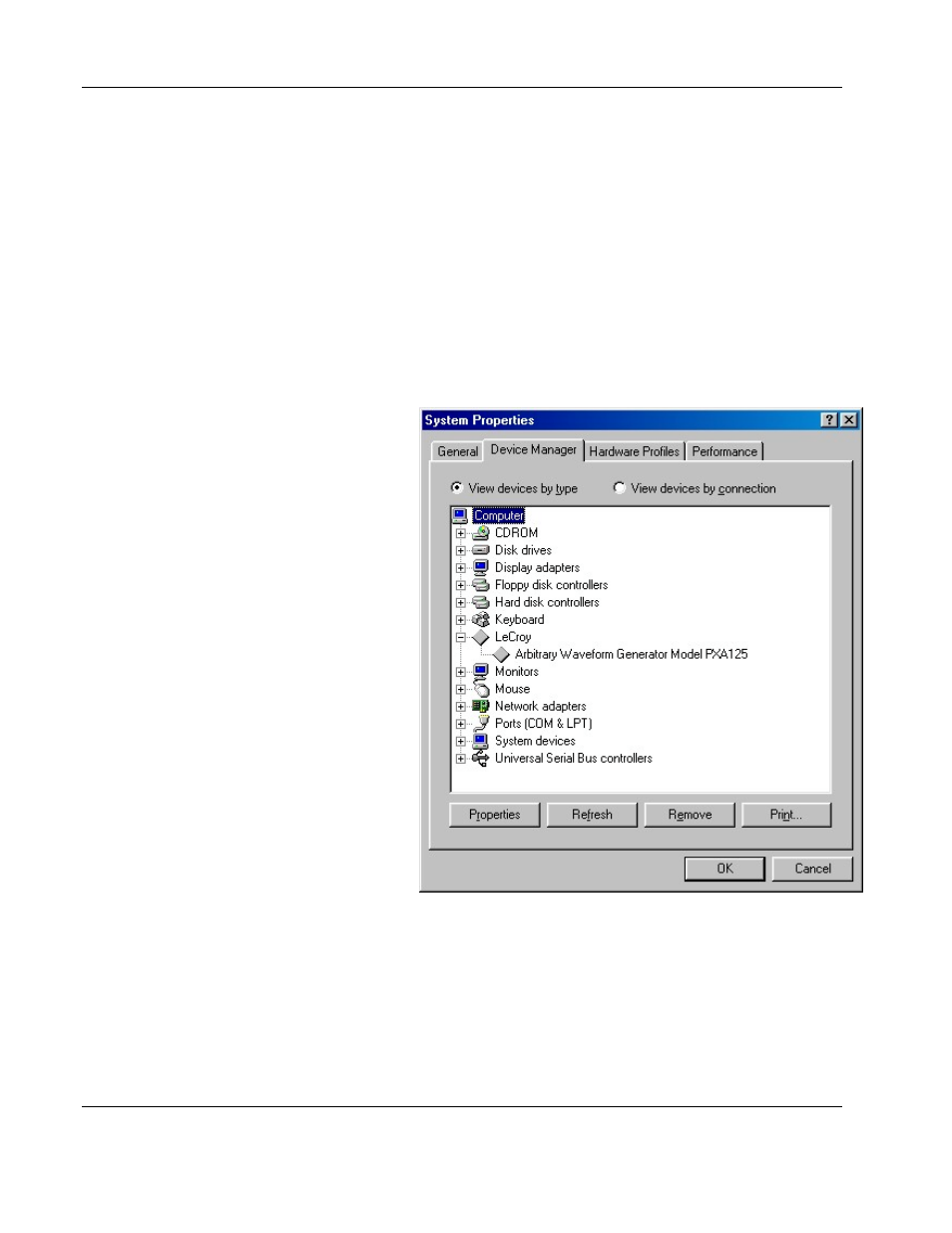

Figure 2-8. Checking Driver Installation
Click on “Cancel” to remove the System Properties dialog box from
the screen.
