User Manual PXA125
2-42 Installation

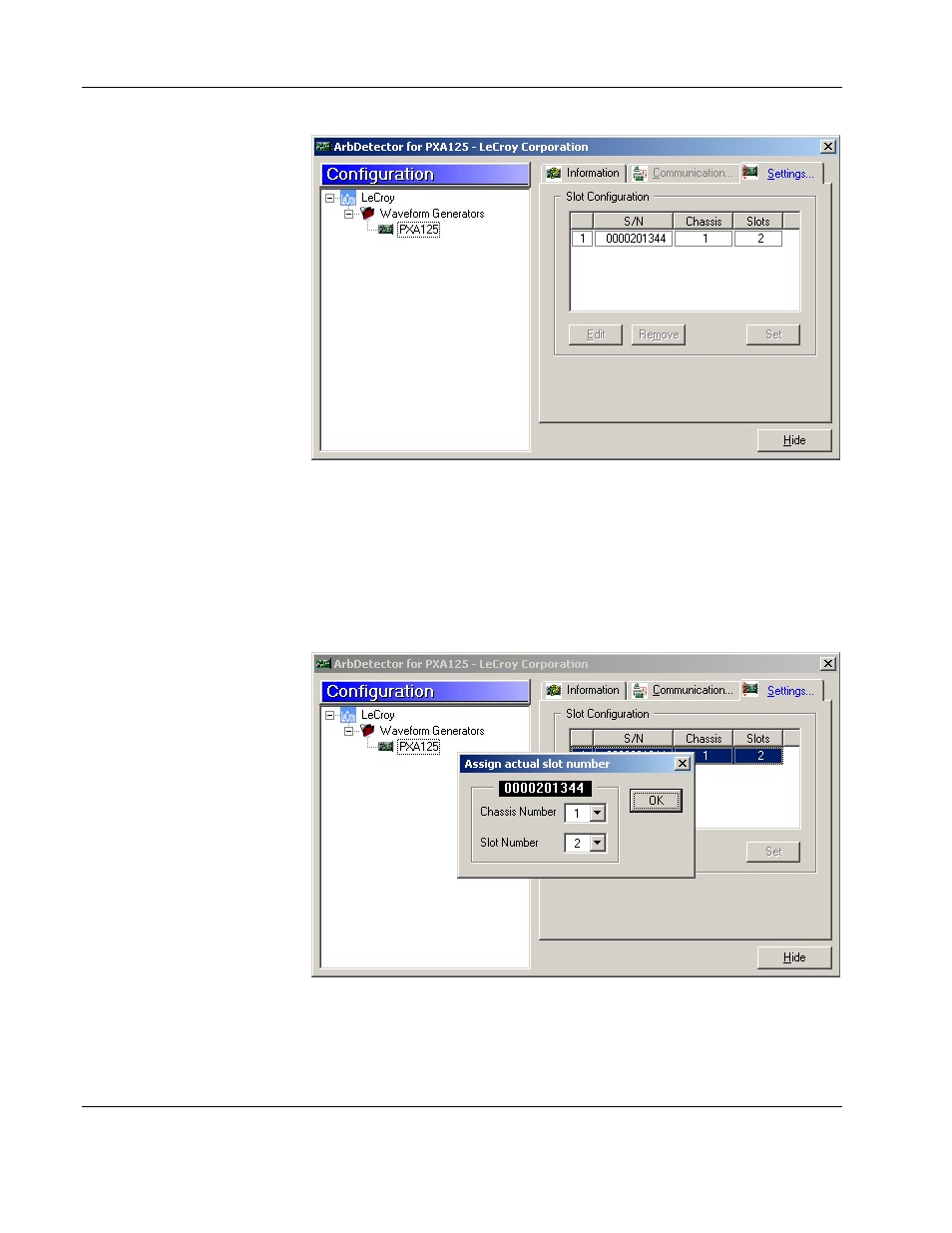

Figure 2-28. The Settings Tab
The Slot Configuration as shown in Figure 2-28 is the end result after
you assign the Chassis number and Slot parameters. To add or edit
these parameters, click on the Edit button. The Edit dialog box will
display as shown in Figure 2-29.
Figure 2-29. Editing Chassis Number and Slot location
In the Slot Number field select your actual location of your instrument
and in the Chassis Number select the actual chassis where your
