User Manual PXA125
Installation 2-21
1. Power down your computer and PXI chassis.
2. Insert the PXI PXA125 board into a free PXI slot.
3. Power on your PXI chassis
4. Power on the computer. Windows should first detect the new
hardware device with a “New Hardware Found” message box.
5. Windows displays the “Add New Hardware Wizard” as shown in
Figure 2-1, which will search for new drivers
6. Follow the procedure as shown below.
7. After installing the PXI PXA125 successfully (see the previous
section
), you’ll be prompted to reboot your computer.

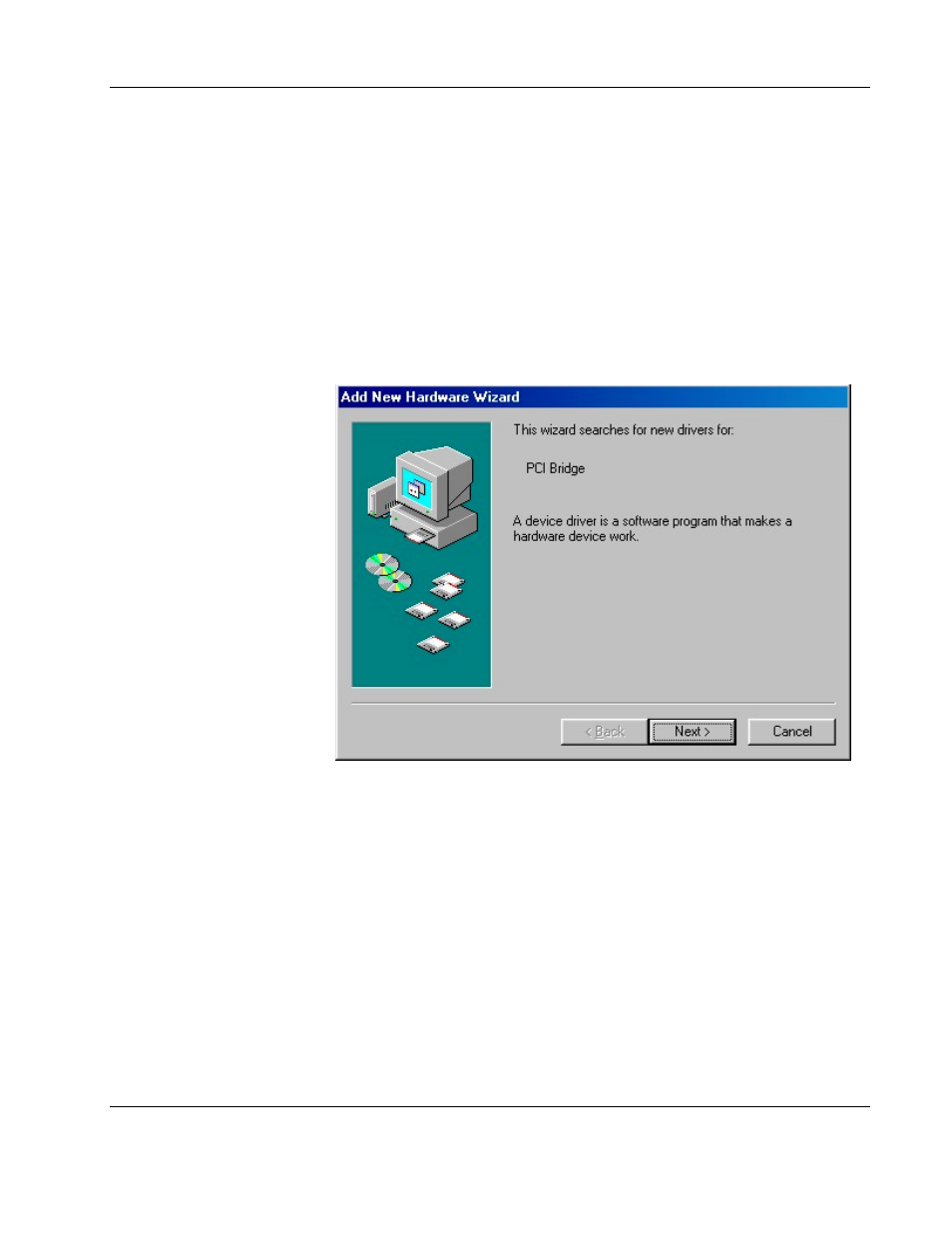

Figure 2-1 – Add New Hardware Wizard
Press Next and select one of the options in the dialog box below. We
recommend that you check the “Search for the best driver for your
device” option as shown in Figure 2-2.
