70
12. Motor Replacement Procedures

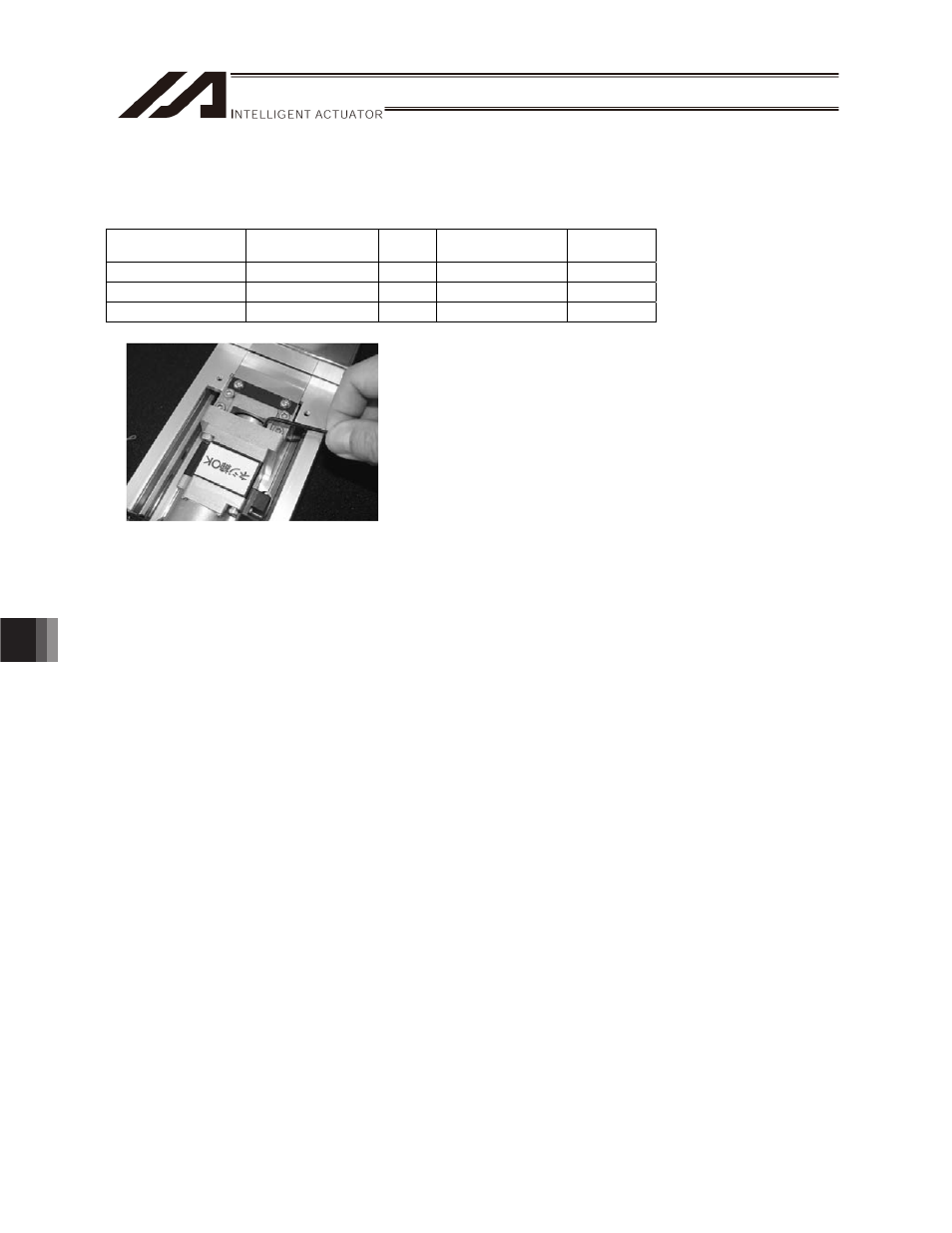

(11) Tightening the coupling
x Loosely tighten the coupling bolt using an Allen wrench, and then turn off the servo and tighten the
bolt to the specified torque.
N-cm {kgm-cm}
Type Nominal diameter
Length
(mm)
Torque Quantity
IS(P)DA(CR)-S M3 10 150 {15.4} 1 x 1
IS(P)DA(CR)-M M3 10 150 {15.4} 1 x 1
IS(P)DA(CR)-L M4 12 250 {25.6} 1 x 1
