1. Replacement/Adjustment Procedure for Stainless Sheet
(2) Remove the motor cover.
(3) Remove the screws retainer the current stainless sheet and pull out the stainless sheet.
(4) Guide the new stainless sheet through the stainless sheet retainer plate.
(5) Affix the stainless sheet with the retainer plate and screws.
Affix only the screws at the motor end, and keep the screws at the counter-motor end loose.
(6) Install the clearance checking jig.

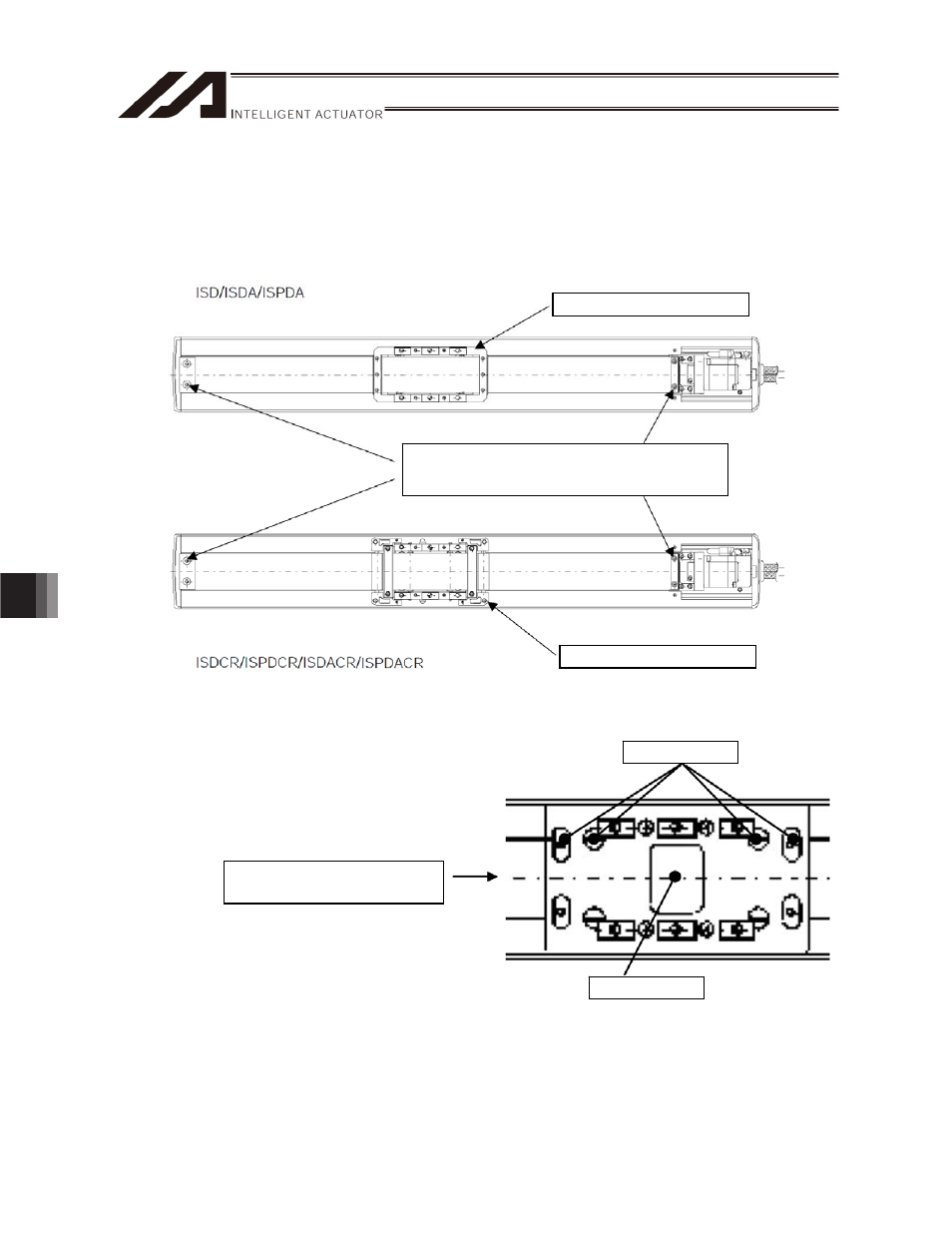

Stainless sheet retainer plate
Stainless sheet retainer plate and affixing screws
Affix only the screws at the motor end, and keep
the screws at the counter-motor end loose.
Stainless sheet retainer plate
Outer openings
Install the clearance checking jig
instead of the slider cover.
Center opening
