Page 112

104

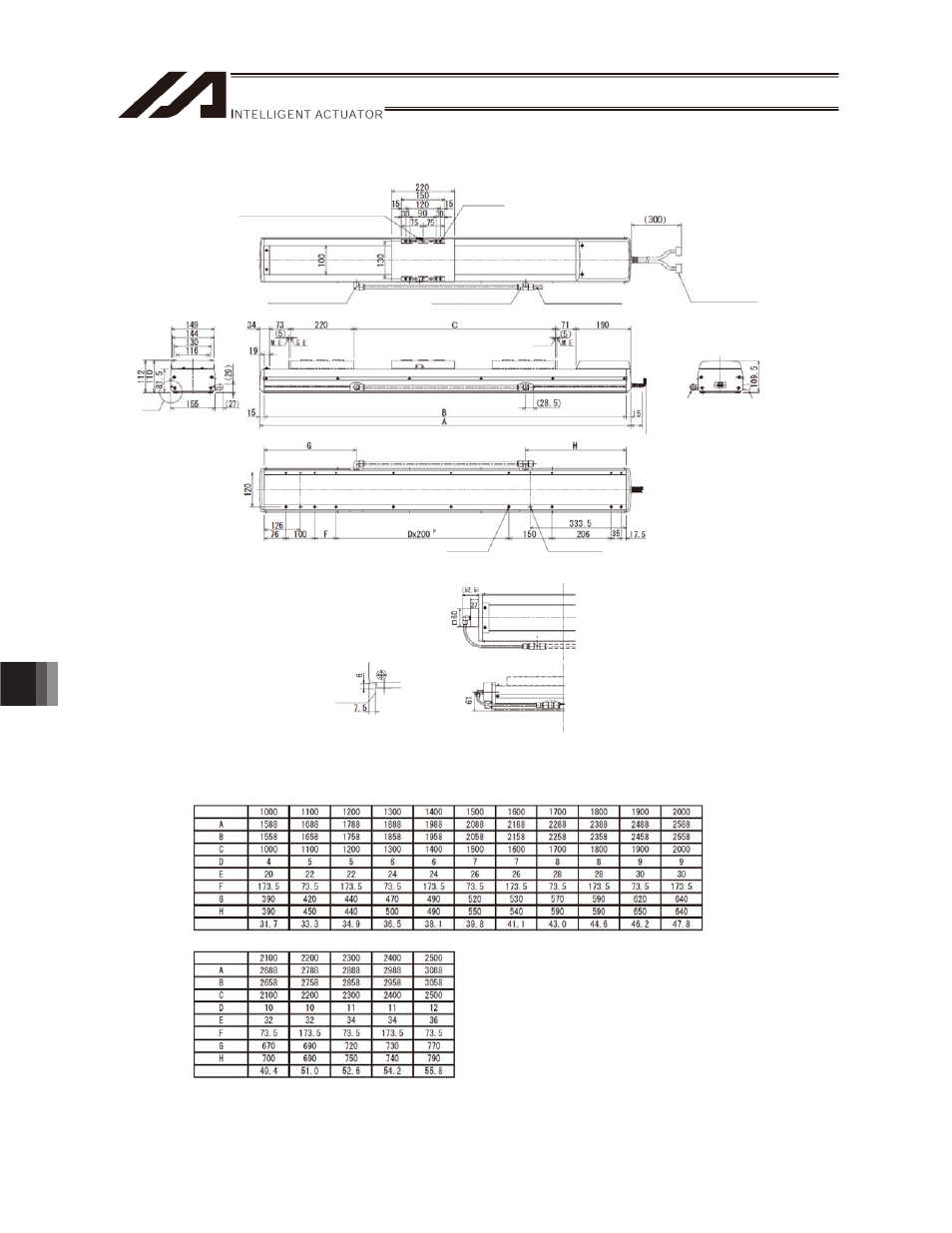

13. Appendix
13.1.15 ISDACR-LX-200,
ISPDACR-LX-200
Cable joint
connector *1
At least 100
or more
with brake (optional)
4-
8H7, depth 10
2-
8H7, depth 10
(tolerance for reamed hole pitch
r0.02 mm)
Home
A
Stroke
Weight (kg)
8-M8, depth 20
E-M8, depth 20
Dimension, Mass and Maximum Speed by Stroke
Reference surface
Detail view of A
Standard
Stroke
Weight (kg)
Quick joint: KAL 12-U03
Opposite specification
(option)
Outer diameter of applicable tube:
12 (inner diameter 8)
Quick joint: KAL 12-U03
* The brake-equipped type is longer in 49.5mm
and heavier in 1.1kg.
