54
10. Maintenance/Inspection
Grease Supply Method
Grease nipples are provided on the end face of the slider, so add grease from these nipples. To add grease,
turn up the stainless sheet. (For the method to turn up the stainless sheet, check “Interior Check.”)

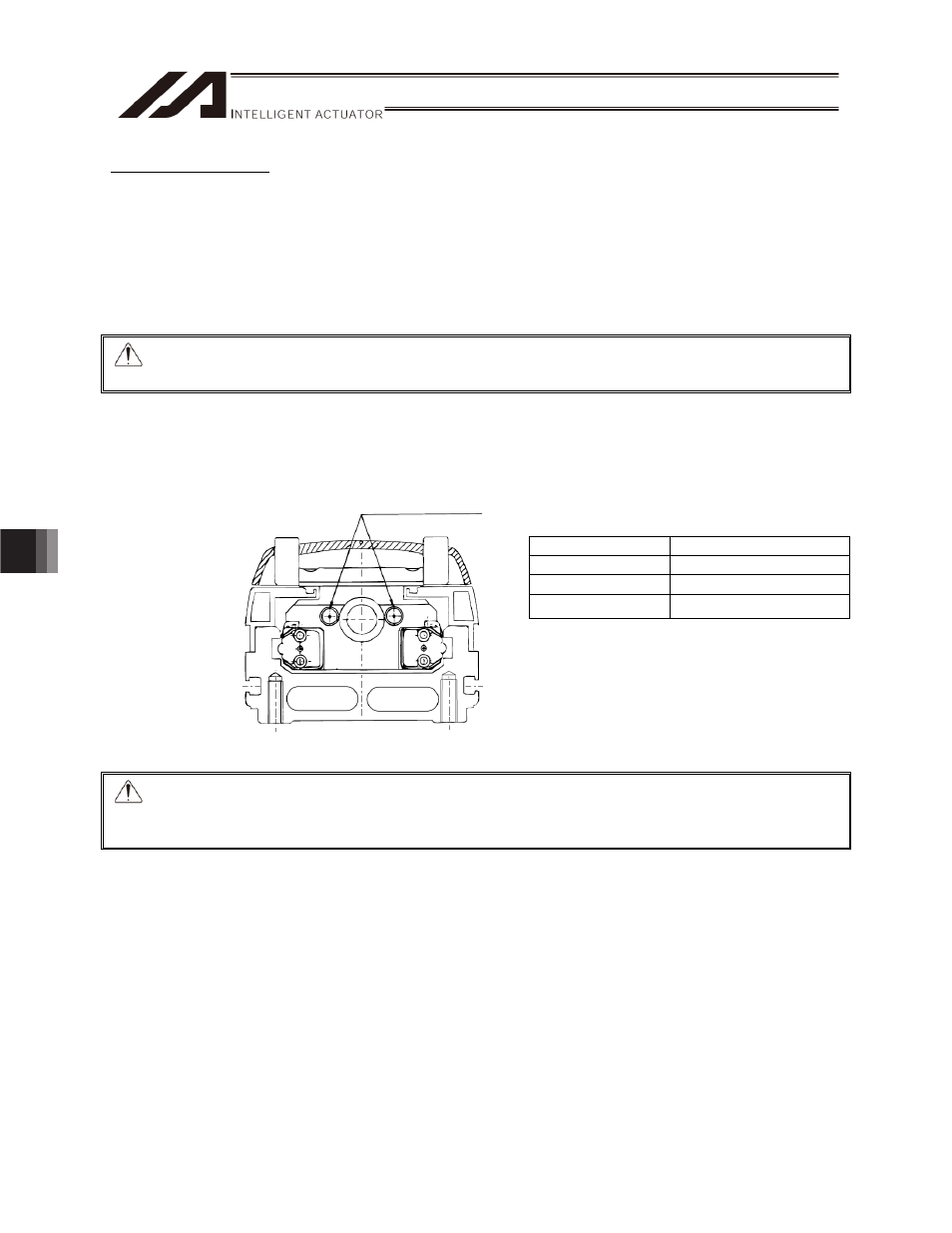

[1] Squirt grease using the grease gun from grease nipples. (Refer to the figure below for positions.)
[2] Squirt grease in from the other grease nipple in the same manner. (Add grease from both grease
nipples.)
[3] Move the slider back and forth several times by hand.
Caution: It is difficult to move actuators of short leads by hand. With these actuators, do not try to
move the actuator by force, but connect a controller and move the actuator by jog operation.
[4] Repeat the above lubrication process one more time.
[5] Wipe off the excess grease that has overflowed from the slider.
Type Nipple diameter
IS (P)D(A)-S " 3.5
IS (P)D(A)-M " 6.0
IS (P)D(A)-L " 6.0
Grease nipple
Caution: In case the grease got into your eye, immediately go to see the doctor to get an appropriate
care. After finishing the grease supply work, wash your hands carefully with water and soap
to rinse the grease off.
