6.2. PROGRAMMING THE TRAFFIC LIGHT CONTROL

The

TRAFFIC LIGHT CONTROL

shows the status of the scale’s traffic light. It

is typically controlled automatically by the instrument weighment cycle.
 The light has a manual override using the touch screen on the main weighing

display.

 Each of the two (2)

I/O RELAY CARDS

supports two (2) sets of lights,

totaling four (4) Stop Light Units.


Follow these steps to configure the

Traffic Light Control.

1. Using an external keyboard, press

2.

ALT + HOME

.

3. Select

LOGIN

.

4. Enter the Supervisor Password.

5. Open the

CONFIGURATION MENU

.

6. Press

PAGE FORWARD

twice.

7. Select

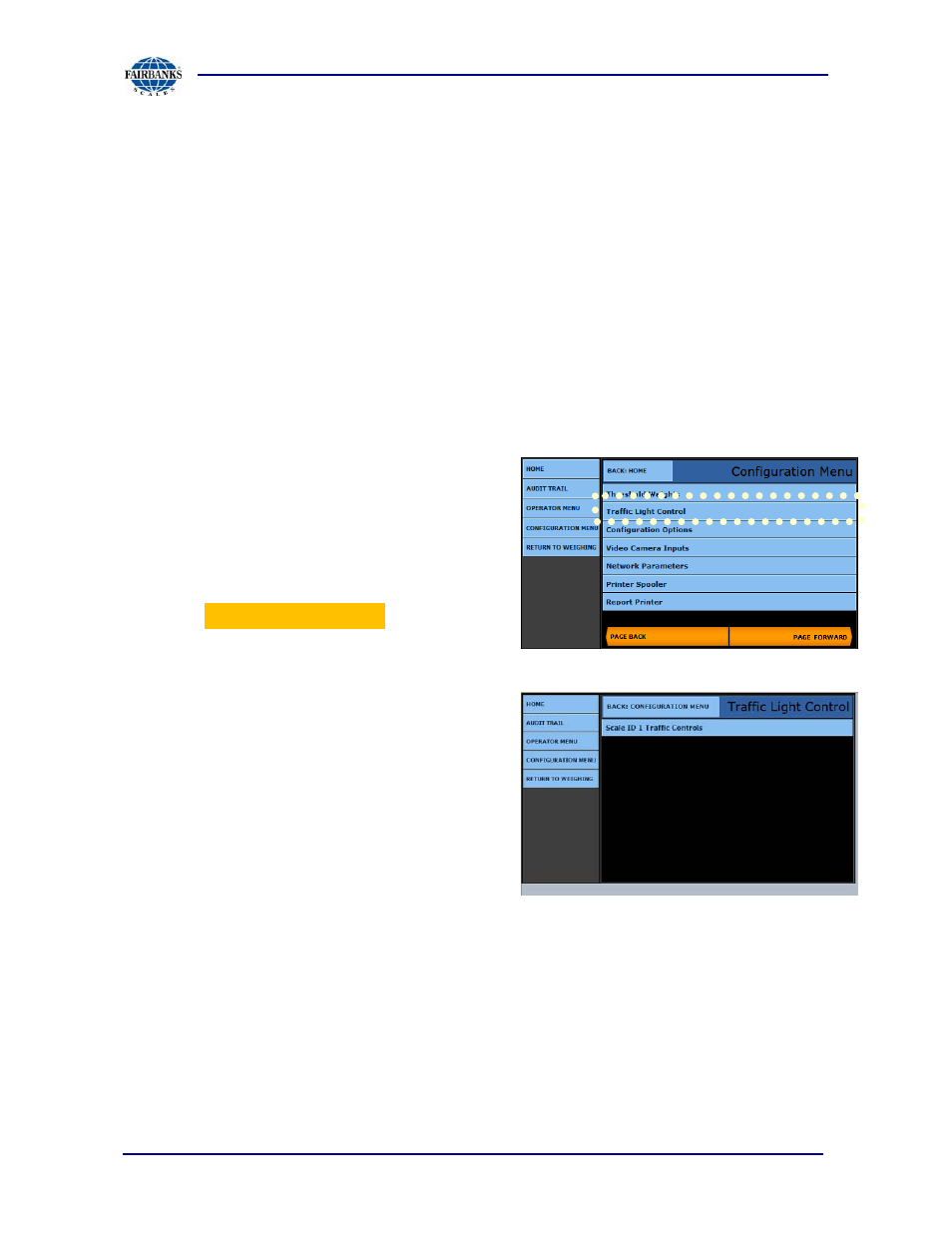

TRAFFIC LIGHT CONTROL

.

8. Select

SCALE ID X TRAFFIC

CONTROLS

.
