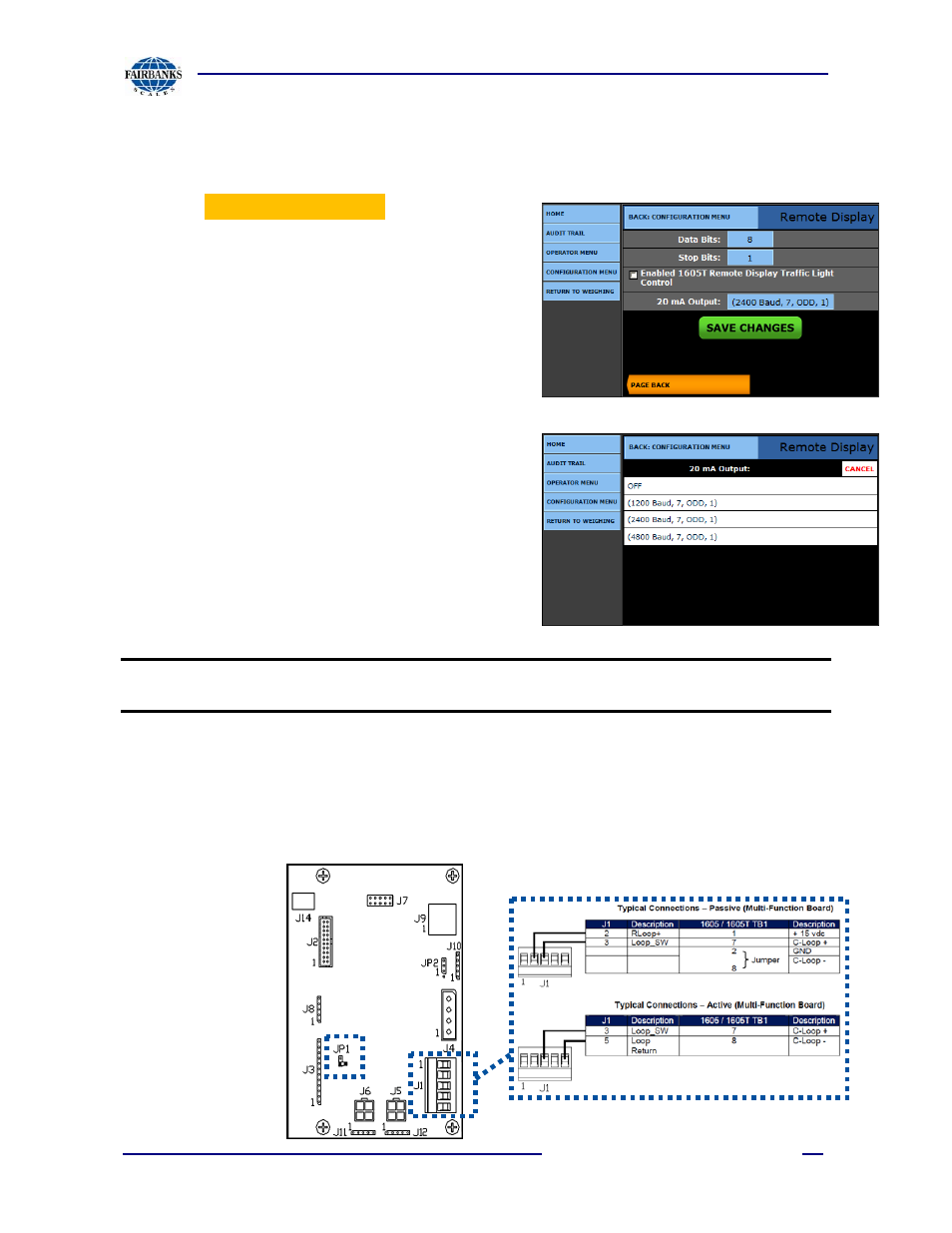

Section 4: Input/ Output

2/2013

84

51303 Rev. 1

5.5.1. SERIAL 20mA CONFIGURATION (MULTI-

FUNCTION BOARD), CONTINUED

8. Press

PAGE FORWARD

once.

9. Click on the

ENABLE 20 MA OUTPUT

button.
– Programs

the

20 mA Output

located at

J1

,

which resides on the Multi-Function

Board.









NOTE:

See

SECTION 10.1. TRAFFIC LIGHT CONTROL

for other

configuration parameters which must be enabled for proper traffic light operation.

 Use

a

20mA CURRENT LOOP CONNECTION

for the Remote Display.

 LED Designations are displayed below.

– DS3 is +5V

– DS4 is +12V

– DS1 is +3.3V
