Section 5: Input/ Output

5.1. INSTALLING A PRINTER

The FB2550 DAT

instrument has three (3) standard Serial Output Ports which are

configured for RS-232 communications.

– Additional serial outputs such as RS-232, 20mA, and RS-485 are available as

optional accessories.

– Printers

Include

TM-U230 (Tape Printer), EU-T432 (Thermal Printer).

Serial outputs can be customized to provide specific configured data string protocols,
configuration parameters, using selected output modes, such as Continuous,
Demand, Auto, To File, Network (Continuous),

and Network (Auto).

– The FB2550 DAT also has the ability to connect using a Network for remote

configuration and diagnostics capability.

– The FB2550 DAT uses Serial Cable (

25932

)

and USB Cable (

29827C

).

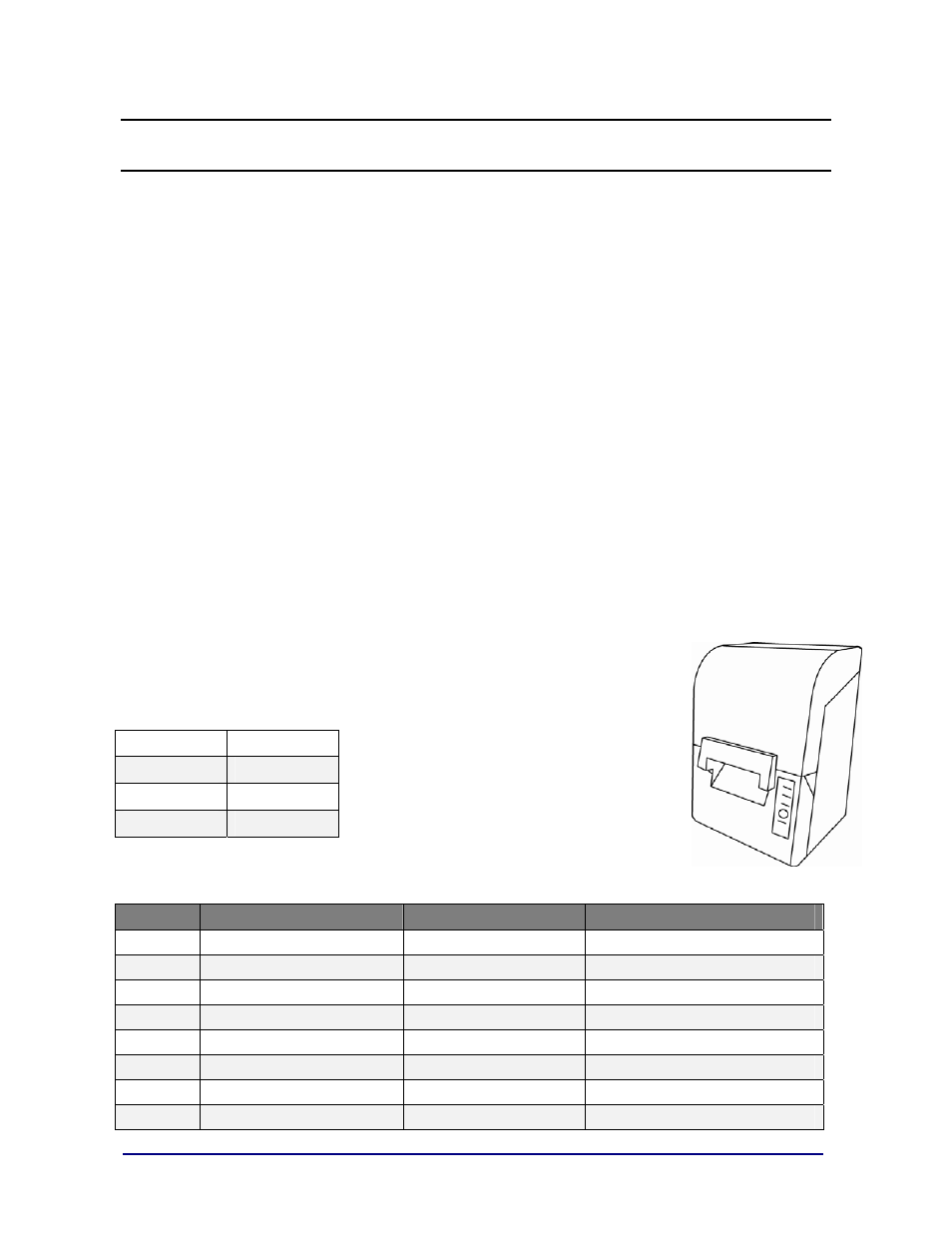

5.1.1. TM-U230 TAPE PRINTER SETTINGS

 For

SERIAL

communications, use cable

25932

.

 The

TM-U230 Tape Printer

is the primary default printer for

standard configurations with the FB2550 Instrument.




DIP Switch 1 Settings (SERIAL INTERFACE)

SWITCH

FUNCTION

ON

OFF

1 Data

receive

error

Ignored

Prints “?”

2

Receive buffer capacity

1KB

16KB

3 Handshaking

XON/XOFF

DTR/DSR

4

Work length

7 bits

8 bits

5 Parity

check

Yes

No

6

Parity selection

Even

Odd

7

Transmission speed

4800 bps

9600 bps

8

BUSY condition

Receive buffer full

Receive buffer full or Offline

BAUD

9600

PARITY

No

DATA BITS

8

STOP BIT

1
