Section 7: Network Application Configuration

2/2013

127

51303 Rev. 1

8.2.1. NETWORK

CONNECTIONS

According to the ANSI/TIA/EIA Standard for

Category 5e Copper Cable

, the

maximum length for any cable segment is one hundred meters (

100m, or 328

ft.

)

– If longer runs are required, use active hardware such as a repeater or a

switch, as is necessary.
When networking one FB2550 DAT to another FB2550 DAT [two (2)
Terminals only], use a

Cross-over Cable

.

– For any other cabling connections, use a straight through cable.

8.2.2. TESTING

CONNECTIVITY

Follow these steps to test the Network Connectivity.

1a

. Connect a laptop to the network using a straight-through cable.

OR

1b. Connect

directly to the FB2550 DAT with a cross over cable.

– The following assumes the computer’s operating

system is Windows XP

®

.

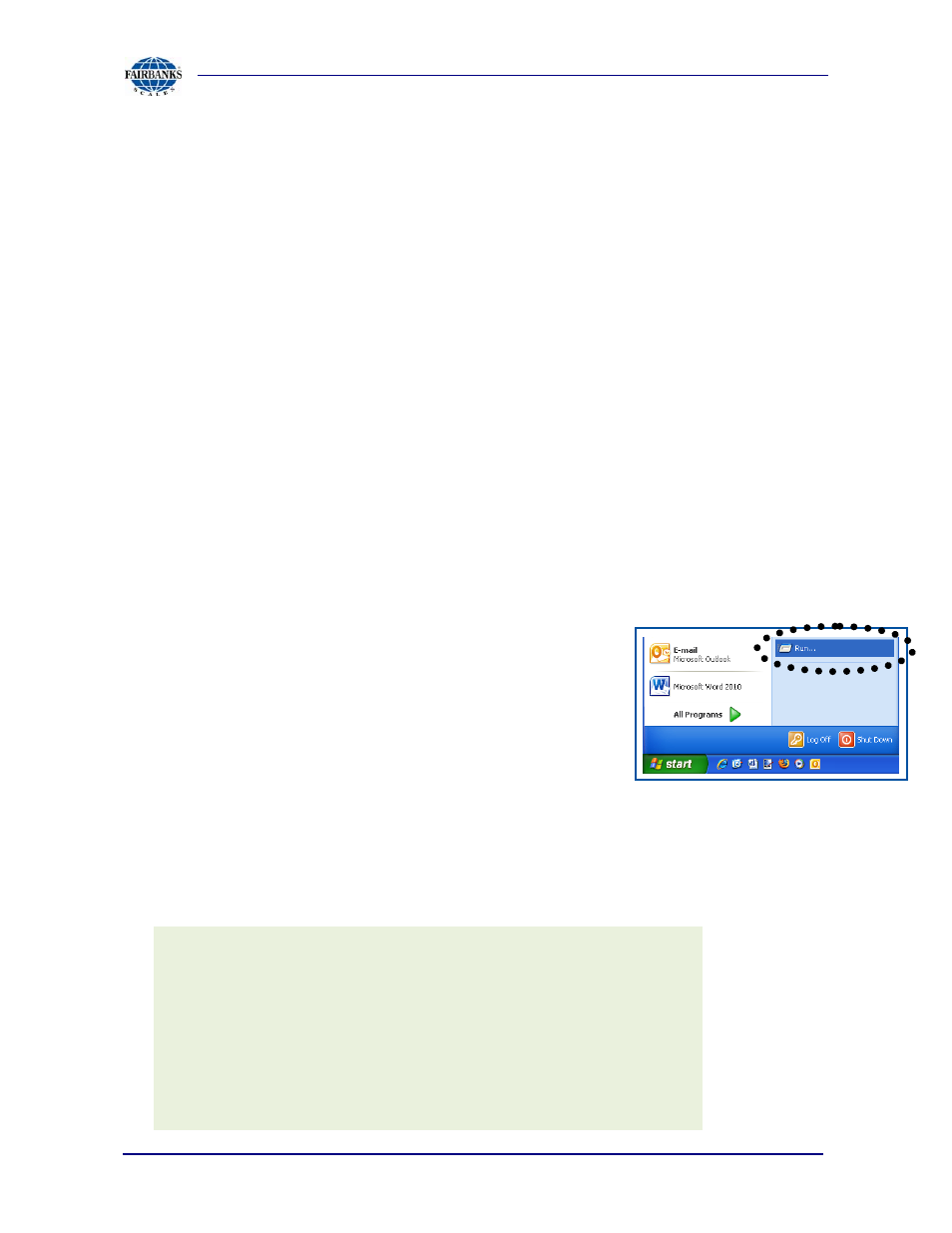

2. Click the

START

button, then select

Run

.

3. Type

COMMAND

at the prompt, then press the

ENTER

key.

– A

DOS window

will appear.

4. At the DOS prompt, type

ping xxx.xxx.xxx.xxx.

X

is the Terminal Number being tested.

5. Press the

ENTER

key.


If the test response is similar this example, the communication test is successful.

Pinging TerminalX [xxx.xxx.xxx.xxx] with 32 bytes of data:
Reply from xxx.xxx.xxx.xxx: bytes=32 time<1ms TTL-128
Reply from xxx.xxx.xxx.xxx: bytes=32 time<1ms TTL-128
Reply from xxx.xxx.xxx.xxx: bytes=32 time<1ms TTL-128
Reply from xxx.xxx.xxx.xxx: bytes=32 time<1ms TTL-128

Ping statistics for 206.220.166.209:
Packets: Sent = 4, Received = 4, Lost = 0 (0% loss),
Approximate round trip times in milli-seconds:

Minimum = 0ns, Maximum = 0 ms, Average = 0 ms
