Section 7: Network Application Configuration

2/2013

126

51303 Rev. 1

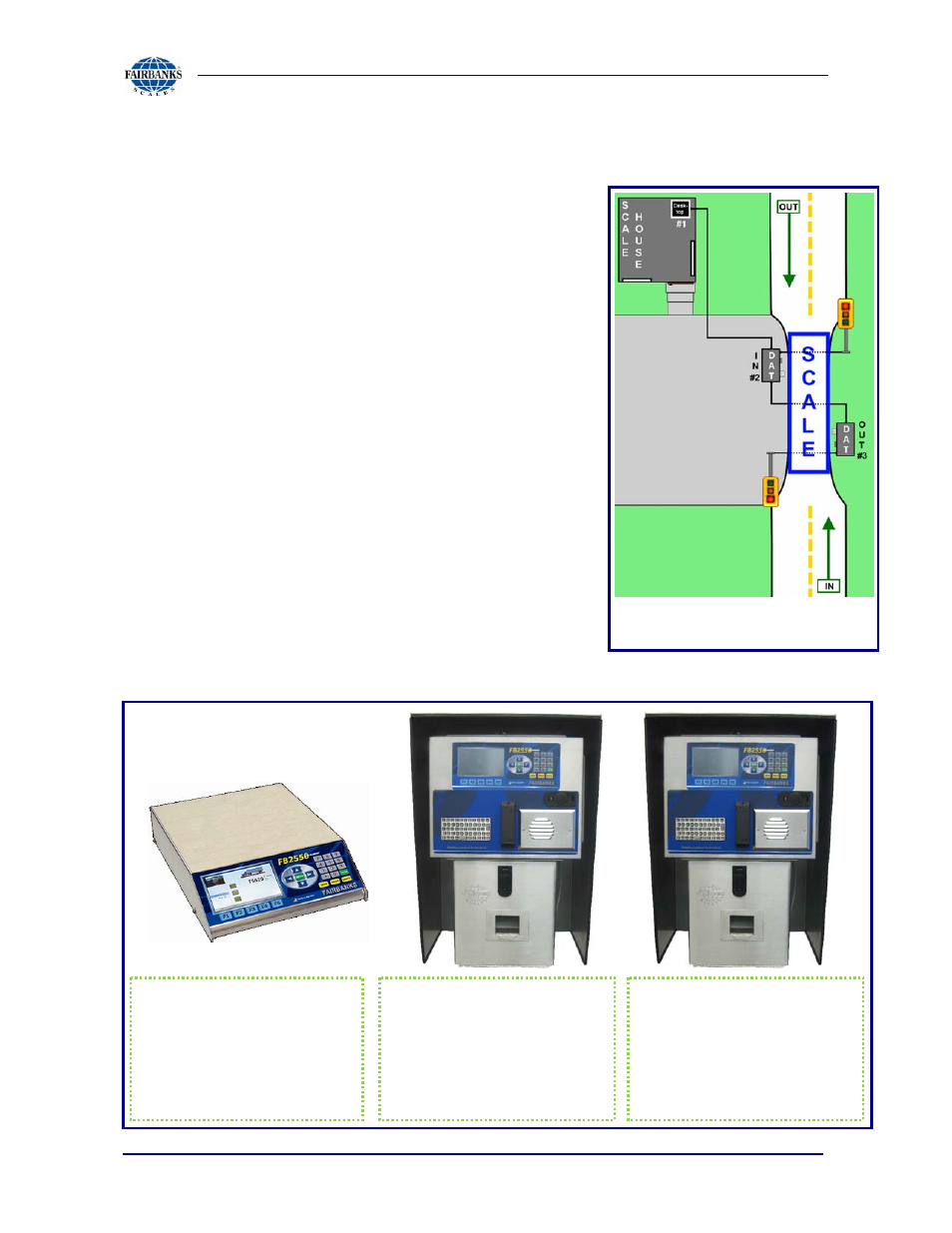

TERMINAL 1

Master Unit
 Only

Indicator

attached

directly to the Scale Platform

 Located in Scale House

(in this example)

3550 Roll Tape Report Printer

TERMINAL 2

Inbound Indicator,

Slave Unit

 Unattached from scale
 Redirects signal to

TERMINAL 1

TM-U230

Ticket Printer

TERMINAL 3

Outbound Indicator,

Slave Unit

 Unattached from scale
 Redirects signal to

TERMINAL 1

TM-U230

Ticket Printer

Above is an example of a three
Instrument networked system.

8.2. STANDARD NETWORK SETUP, CONTINUED

Each Terminal can view weights and process
transactions from any scale on the network, as well as
traffic light control. Transactions can be connected
locally to a printer.

– A re-direct option in each Terminal is available to

cause a print to occur to a specific remote
Terminal on the network.

– Transaction information is shared by each

Terminal on the network. Both incomplete and
complete transactions are instantly shared with all
Terminals on the network.

Customer
Products
Product Groups
Product Group Products
Tares

– Data entered into the database of a Terminal may

be imported by a different Terminal on the
network.
