4.4.4. METHOD 2 - CUSTOMIZING OUTPUT DATA
STRINGS
The FB2550 DAT can also be customized to support numerous manufacturers
software interfaces to peripheral devices.
– When a data string protocol that is required is not similar as one of the pre-
configured outputs, the output data string must be
programmed
manually
using the
BUILD, TOKENS, AND WEIGHTS
menus.

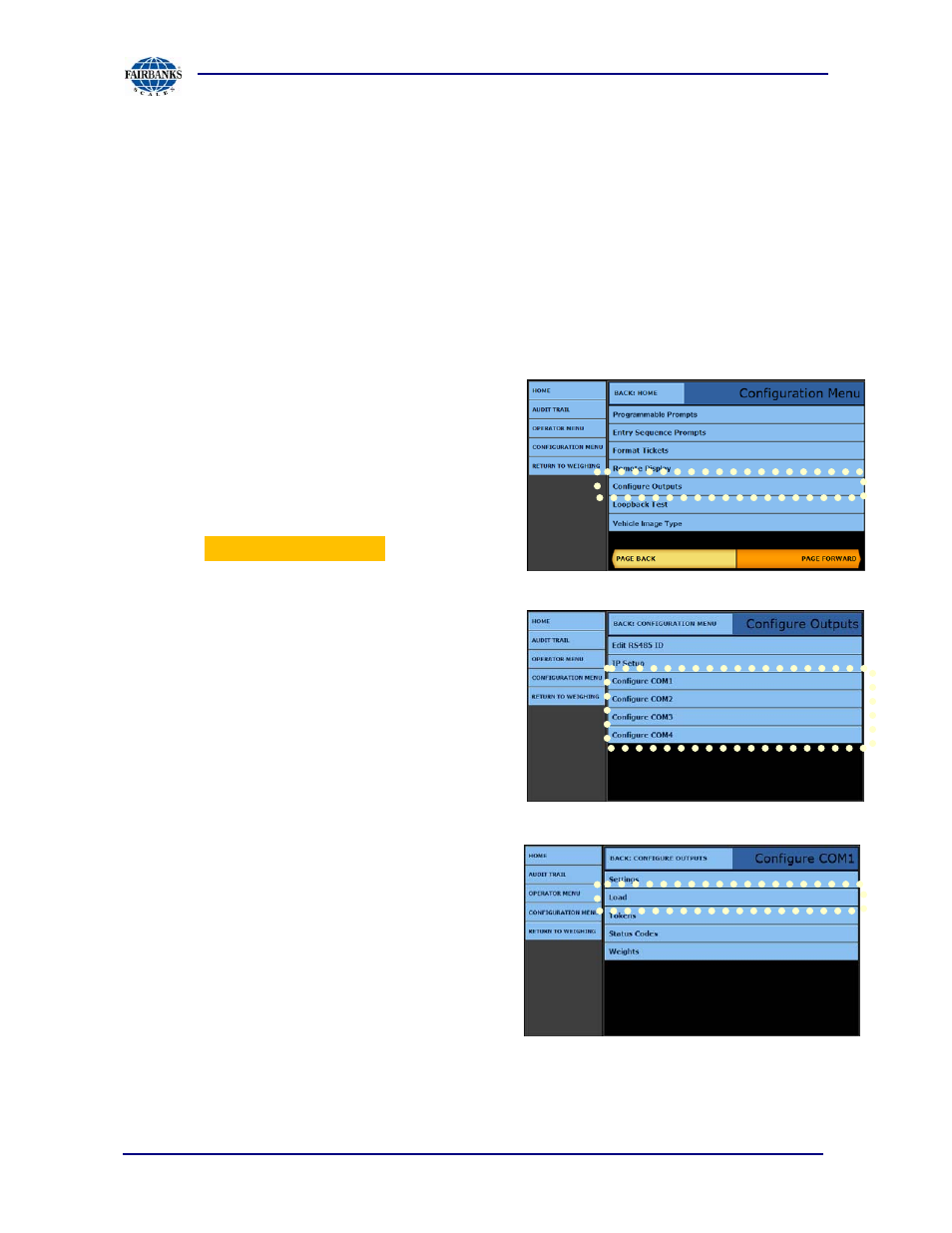

Follow these steps to customize the Output Data String.
1. Using an external keyboard, press
ALT +
HOME.
2. Select
LOGIN
.
3. Enter the Supervisor Password.
4. Select the
CONFIGURATION MENU.
5. Press
PAGE FORWARD
once.
6. Select
CONFIGURE OUTPUTS.
– Touch the screen to select
CONFIGURE
COM X,
where
X
is
the desired COM port location to
configure the output data string.
7. Touch the screen to select
LOAD
.
