4.4.3. METHOD 1, CONTINUED

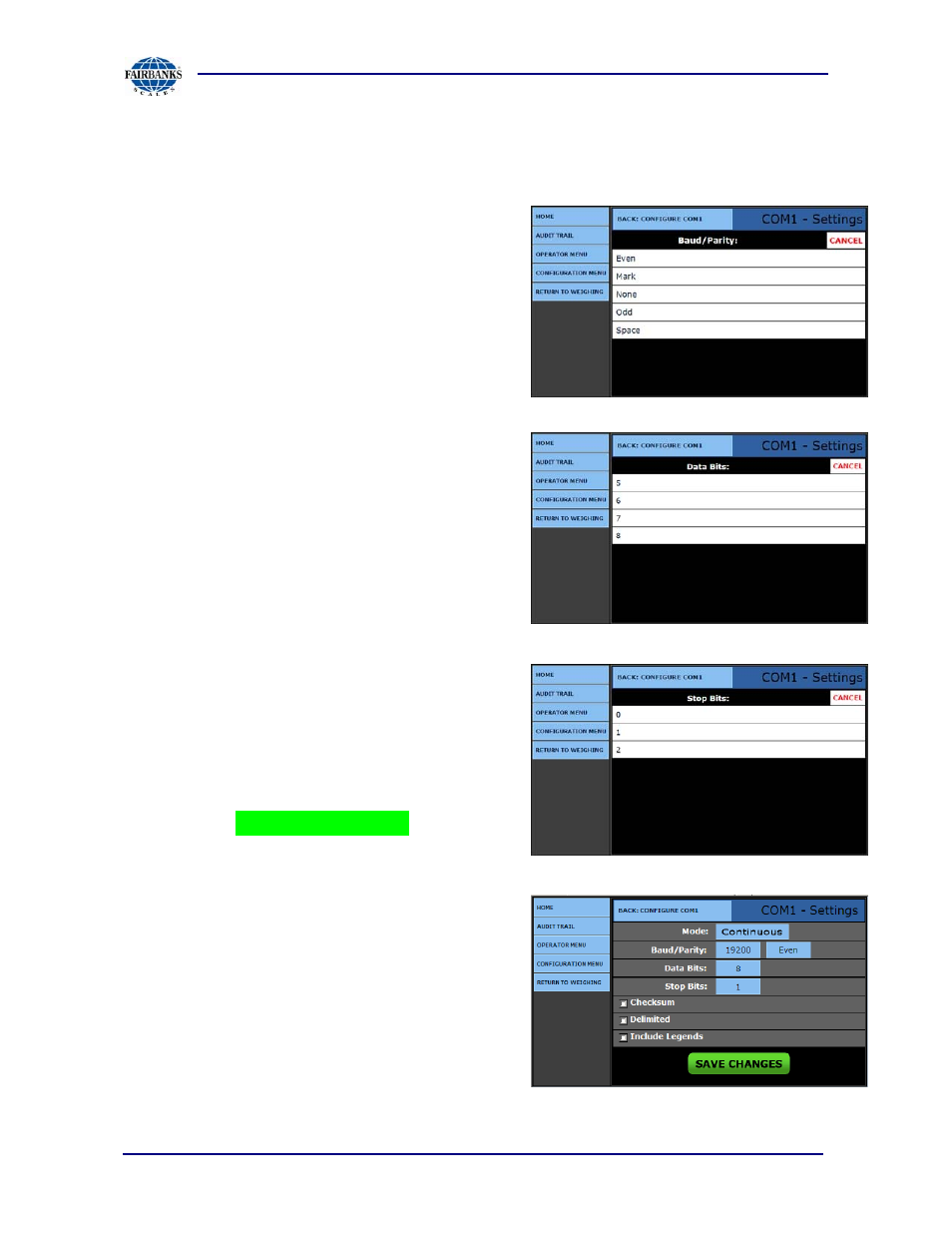

17. Touch the data field to the right of the Parity legend and a list of items will

appear from which a selection is made.

18. Select the required

PARITY

rate from the

menu list.




19. Touch the data field to the right of the Data

Bits legend and a list of items will appear
from which a selection is made.

20. Select the required

DATA

BIT

from the

menu list.




21. Touch the data field to the right of the Stop

Bits legend and a list of items will appear
from which a selection is made.

22. Select the required

STOP

BIT

from the

menu list.



23. Press the

SAVE CHANGES

button when

any changes are made otherwise the
changes will be lost.

24. Select

RETURN TO WEIGHING

to test

and verify the output is producing the
desired results.

 Selecting

BACK: CONFIGURE COM1

returns to the CONFIGURE COM1 Menu.
