Section 3: Configuration Menu
2/2013 63 51303 Rev. 1
4.4.4. METHOD 2, CONTINUED
23. Select the PRIMARY UNITS data entry
block which is located to the right of the
legend.

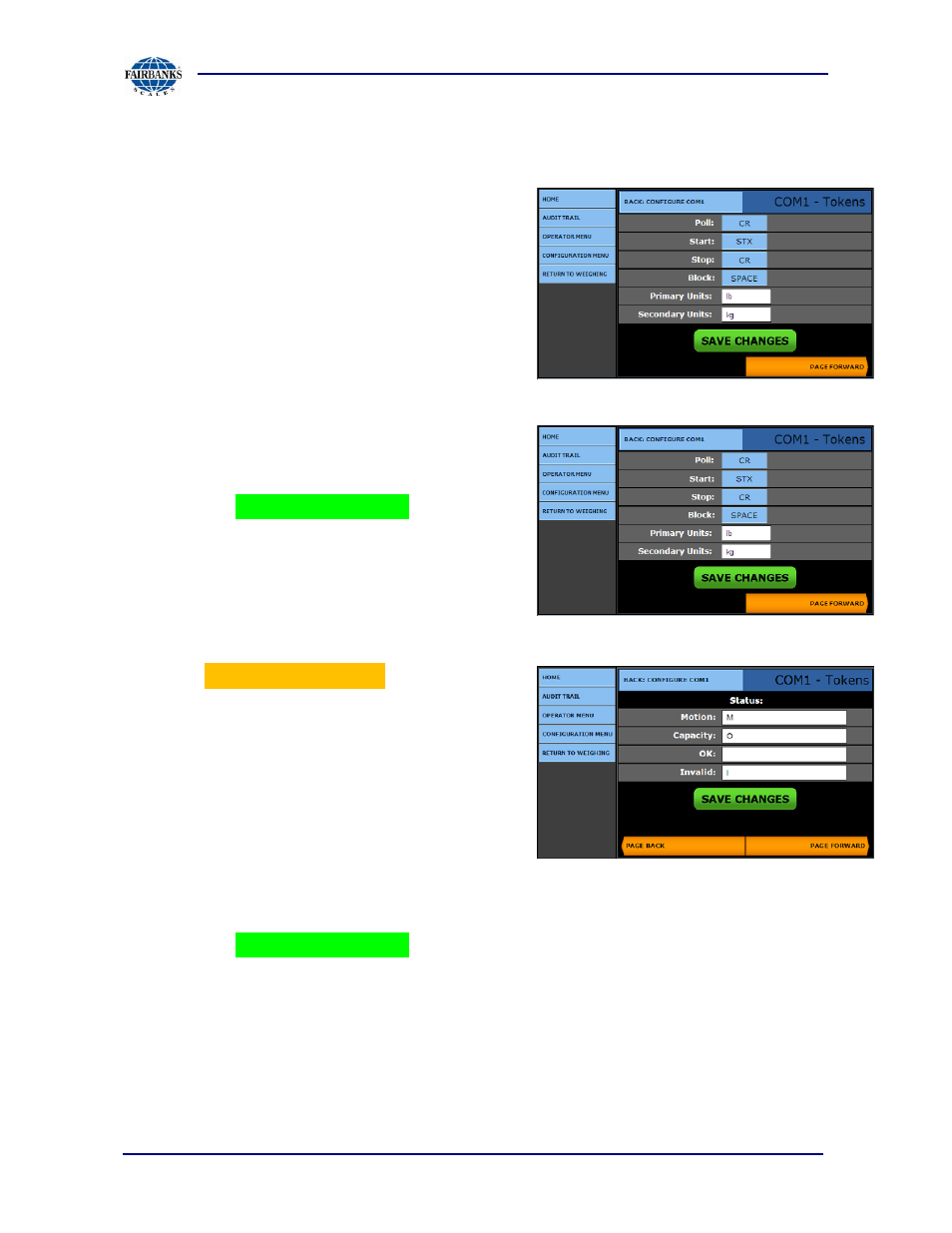

24. Enter the primary units legend as shown in
the image to the right.
Example: lb
25. Select the SECONDARY UNITS data
entry block which is located to the right of
the legend.
26. Enter the secondary units legend, as shown
in the image to the right.
Example: kg
27. Press the SAVE CHANGES button when
any changes are made otherwise the
changes will be lost.
28. Press PAGE FORWARD once.
– This page configures the Status: token
for the output data string.
– Each item configured will indicate the
character programmed in the output data
string.
– If
Motion:
is present on the scale, a “ M”
will be transmitted in the data string. The
Capacity:
value will indicate if the scale is overloaded.
29. Press the SAVE CHANGES button when any changes are made otherwise
the changes will be lost.
