6.2. PROGRAMMING THE TRAFFIC LIGHT CONTROL, CONTINUED

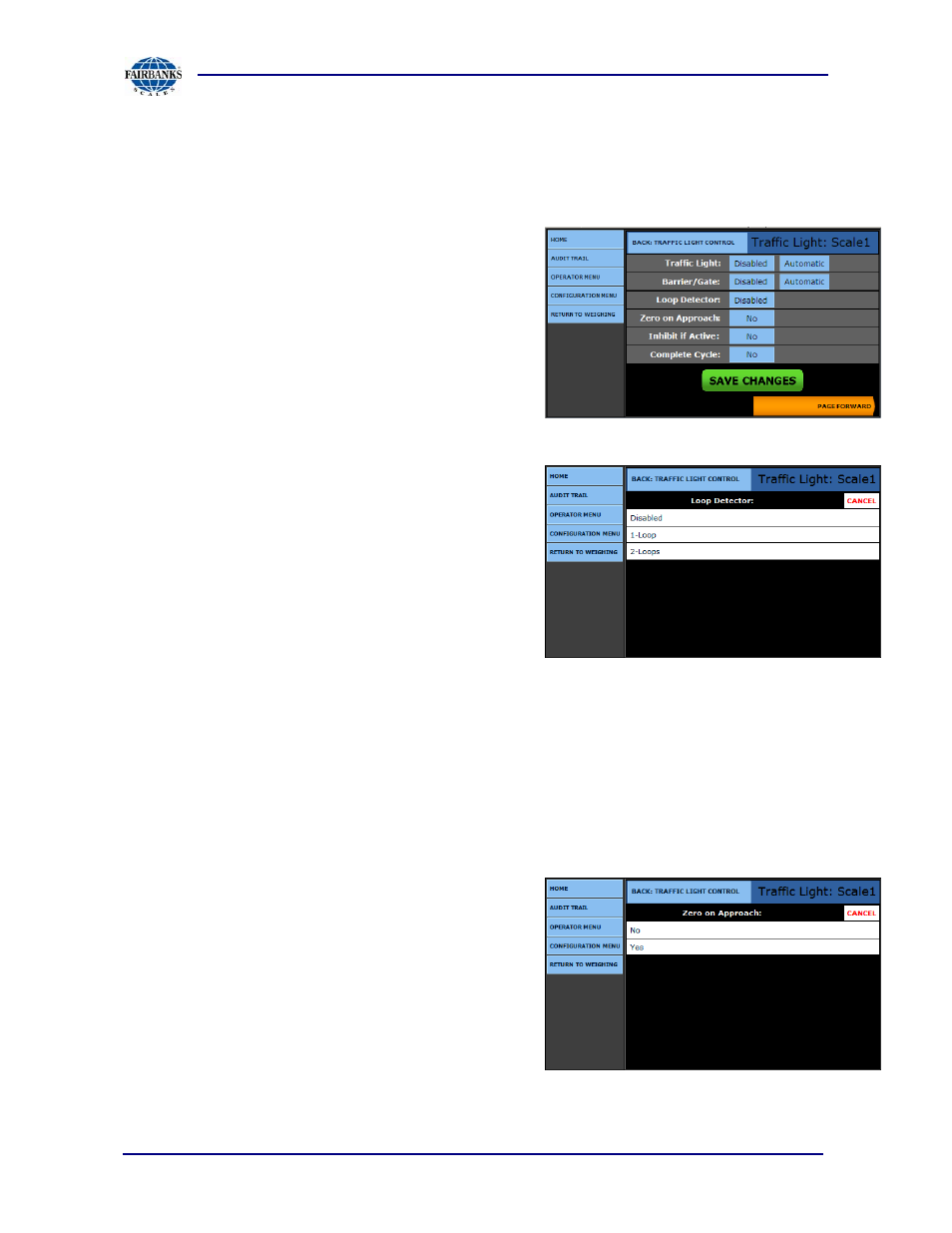

13. Select the

LOOP DETECTOR

Control button.

– Sensor contact plates alert that the

vehicle has entered the scale, and also
that it is leaving.

14. Select the correct Loop Detector.

– Extra

LOOP

choices (i.e. 3- Loop, 4-

Loop

) appear when the optional Digital

Relay Card (

30920

)

is added to the

Instrument.

15. Select the

ZERO ON APPROACH

Control button.

– Only when the scale is on

ZERO (0)

with

the light change to green and let the
driver advance.

16. Choose

NO

or

YES

.

17. Select the

INHIBIT IF ACTIVE

Control

button.

14a.

Selecting

YES

will NOT allow a

weighment to be processed if a loop detector is “active”.

– This ensures that a truck is fully scale-borne before a weight can be

processed. Trucks which are in succession cannot stop on the top of the
loops, or the weighment transaction will discontinue.

OR

14b.

Select

NO

to allow a transactions to be processed, even if a the vehicle

is still detected at the loop.

18. Select the

COMPLETE CYCLE

Control

button.
– Only when the entire weighment process

is complete, and the ticket is available for
the driver, will the light change to green,
letting the vehicle advance.

19. Choose

NO

or

YES

.
